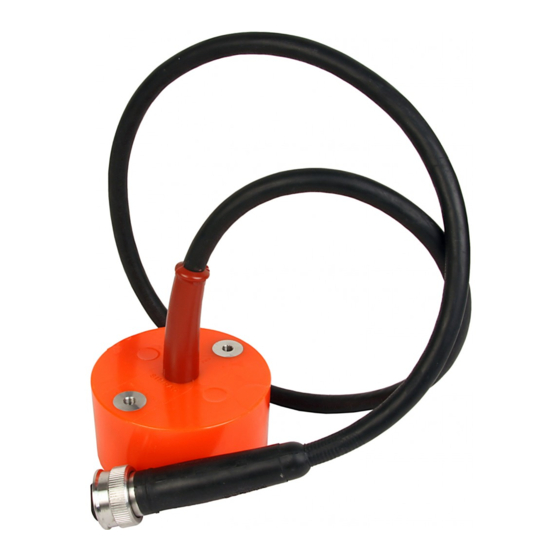

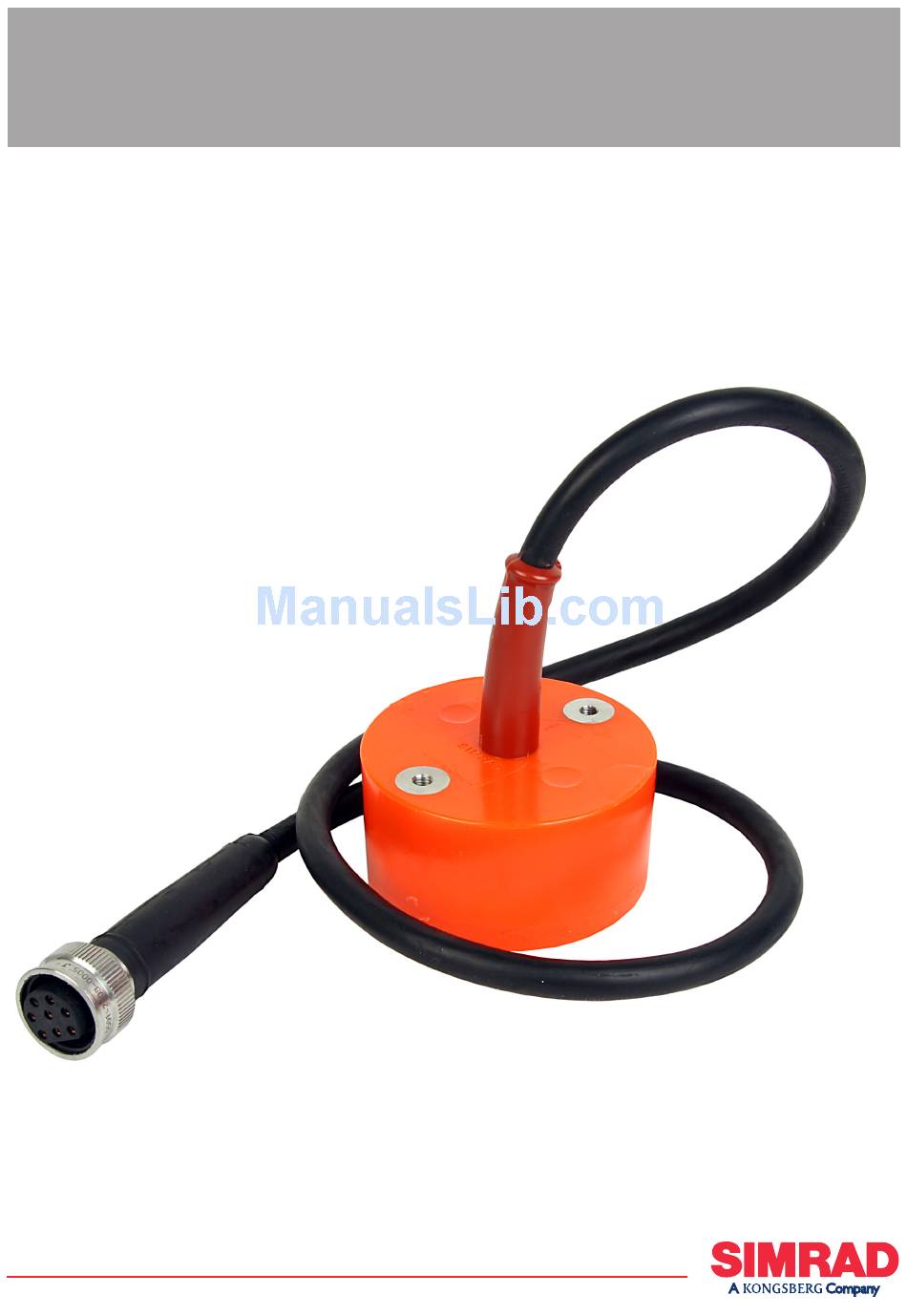

- Page 1 Installation manual Simrad ES200-7CD 200 kHz split-beam deep water transducer www.SIMRAD.com M A X I M I Z I N G Y O U R P E R F O R M A N C E S E A...
- Page 3 Simrad ES200-7CD Installation manual This document provides a general description of how to install the Simrad ES200-7CD Split-beam transducer. The information must be regarded as general guidelines and recommendations only. The installation shipyard must design and manufacture installation hardware to fit the ES200-7CD transducer on each individual towed body.
- Page 4 ©2006 Simrad Horten AS. The information contained in this document remains the sole property of Simrad Horten AS. No part of this document may be copied or reproduced in any form or by any means, and the information contained within it is not to be communicated to a third party, without the prior written consent of Simrad Horten AS.
-
Page 5: Table Of Contents
Installation manual Table of contents INTRODUCTION ..............5 TOWED BODY DESIGN ............6 INSTALLATION PRINCIPLES ..........8 HANDLING AND MAINTENANCE ........12 Rules for transducer handling.................12 Approved anti-fouling paints..................13 Using self-locking taps ...................14 DRAWING FILE ............... 18 Deep water, split beam transducer................19 Outline dimensions....................20 Mounting ring......................21 Clamping ring......................23... - Page 6 Simrad ES200-7CD 307121/A...
-
Page 7: Introduction
Connector The ES200-7CD transducer is fitted with a Burton 8–pin female connector, type 5501–2008. Additional parts The following items can be supplied by Simrad to facilitate installation: • Mounting ring: Order number ES2–204464 • Clamping ring: Order number ES2–200879 • Transducer cable (for extension): Order number 642–078215 –... -
Page 8: Towed Body Design
TOWED BODY DESIGN The towed body used to hold the ES200-7CD Split-beam transducer is not provided by Simrad. The design and manufacturing of such a body must be made by your own organisation, or by a third party you wish to engage to do this. - Page 9 Towed body design the sound energy, and may in worst cases block the sound transmission totally. Therefore, design the towed body so that it can operate in deep water. Caution Observe the maximum operational depth of the transducer. Do not exceed this limitation. Do not allow the towed body to hit the sea bed.
-
Page 10: Installation Principles
Simrad ES200-7CD INSTALLATION PRINCIPLES Transducers designed to withstand large water pressure are provided for use in towed bodies. The recommended installation method is through the hull plating hull using mounting and clamping rings. The installation arrangement on the towed body must be designed by the manufacturer of the towed body to fit... - Page 11 Installation principles Example: Dual transducer arrangement The illustration below shows a typical through the hull installation of small and large circular transducers on a towed body. Figure 2 Dual transducer arrangement (CD017201B) (A) = Small transducer (C) = Electronic equipment in watertight compartment (B) = Medium or larger transducer...
- Page 12 Simrad ES200-7CD Example: Small transducer The illustration below shows the installation principle of a small circular transducer using clamping and mounting rings. Figure 3 Installation principle, small transducer (CD017010H) (A) = Mounting ring (D) = Clamping ring (B) = Hull plating on towed...
- Page 13 Installation principles Example: Medium and large transducers The illustration below shows the installation principle of a medium or large transducers. Note that a clamping ring is not required, as the transducer body is shaped to facilitate this function. Figure 4 Installation principle, medium and large transducers (CD017010G) (A) = Mounting ring (D) = “Clamping ring”...
-
Page 14: Handling And Maintenance
Painting An anti-fouling paint may be applied to the transducer face. Because some paint types may be aggressive to the polyurethane in the transducer face, please consult Simrad’s list of approved paints. See Approved anti-fouling paints on page 13. Cleaning The transducer face may be cleaned for shells and other marine fouling. -
Page 15: Approved Anti-Fouling Paints
Handling and maintenance Approved anti-fouling paints This is Simrad’s list of approved antifouling paints on polyurethane transducer housing. Jotun Head office address: P.O.Box 2021, N-3248 Sandefjord, Norway Website: www.jotun.com. Racing Non-stop Safeguard Universal primer (125 micron) with Antifouling SeaQuantum Ultra (125 micron) -
Page 16: Using Self-Locking Taps
Simrad ES200-7CD Using self-locking taps Screw connections are generally made so that they can be loosened again. However, accidental loosening, especially under dynamic stress, must be avoided. For this reason it is often necessary to use additional locking devices. These are often expensive, they can be used once only, or react critically to temperature changes. - Page 17 Handling and maintenance • The thread locking feature is integrated in the internal thread • Modified profile with ramp surface in the direction of stress • 30 degree ramp surface provides self-locking effect • Easy assembly • No assembly errors (forgetting the locking device) possible •...
- Page 18 Gauge gauges. Note that the gauge must be used Emuge self-lock in the correct direction. Self-lock taps provided by Simrad The following self-lock taps are on stock at Simrad, and can be ordered from us. Threads Drill diameter for Part.no threads ø5.2...
- Page 19 Handling and maintenance Supplier and manufacturer Norwegian supplier is: Tingstad AS, P.O.Box 83, Kalbakken, 0902 Oslo, Norway http://www.tingstad.no Manufacturer is: EMUGE-Werk Richard Glimpel, Nurnberger Strasse 96-100, D-90607 Lauf, Germany http://www.emuge.de 307121/A...
-
Page 20: Drawing File
Simrad ES200-7CD DRAWING FILE This chapter contains relevant drawings related to the electrical and physical installation of the ES200-7CD Split-beam transducer. Note The mechanical drawings are for information and guidance only. They are not in scale. All dimensions are in mm unless otherwise is noted. -
Page 21: Deep Water, Split Beam Transducer
Drawing file Deep water, split beam transducer This is the termination of the transducer cable from a deep water transducer. This transducer is designed to be used towed bodies. The cable is equipped with a watertight connector. The other end of the cable is permanently fixed to the transducer. -
Page 22: Outline Dimensions
Simrad ES200-7CD Outline dimensions (Forward) ø100 ø88 Threaded inserts for portable use. (Bottom) (Top) Depth: 12 mm Use 12 mm M8 bolts. Maximum torque: 17 Nm ø120 ø24 60.2 Weight without cable: 4.2 kg 75.2 Cable length: 1.5 m Connector: 8-pin Burton Note: All measurements are in mm. -
Page 23: Mounting Ring
Steel tube, ST.52-3N (DIN 17121), ø193.7/ø83.7 x100 Surface treatment: Sand blasted to SA 2.5, one coating of red ferric oxide primer M10 Self-lock taps: Refer to specific description. Self-lock taps can be provided by Simrad. Note: All measurements are in mm. CD017018F Page 1 of 2 The drawing is not in scale. - Page 24 Simrad ES200-7CD 85 ±1 15 +0.3/-0 60 +0.1/-0 0.075 Champer 3x45° 45° R0.75 max 20 ±2 30 ±1 Note: All measurements are in mm. CD017018F Page 2 of 2 The drawing is not in scale. 871-204449 Rev.B 307121/A...
-
Page 25: Clamping Ring
Drawing file Clamping ring ø11 ø0.2 50 ±0.1 R5.5 Note: All measurements are in mm. CD017016G Page 1 of 2 The drawing is not in scale. 871-204451 Rev.A 307121/A... - Page 26 Simrad ES200-7CD (15) R0.5 R0.5 R1.5 ø18 Material: 15 mm steel plate, St37/St52 Note: All measurements are in mm. CD017016G Page 2 of 2 The drawing is not in scale. 871-204451 Rev.A 307121/A...
- Page 27 Index drawings, 18 Transducer cable Installation method order number, 5 Air bubbles, 6 Towed body, 8 Anti-fouling Introduction, 5 paint, 13 Arctic tank Watertight, 6 cleaning, 12 painting, 12 Laminar flow, 7 polycarbonate, 12 Lifting, 12 Cable Maintenance, 12 deep water transducer, 19 Mounting ring Clamping ring blister, 8...
- Page 28 ISBN-10: 82-8066-079-8 ISBN-13: 978-82-8066-079-4 © 2006 Simrad Simrad Horten AS Strandpromenaden 50 Telephone: +47 33 03 40 00 P.O.Box 111 Telefax: +47 33 04 29 87 N-3191 Horten, www.simrad.com Norway simrad.sales@simrad.com...
