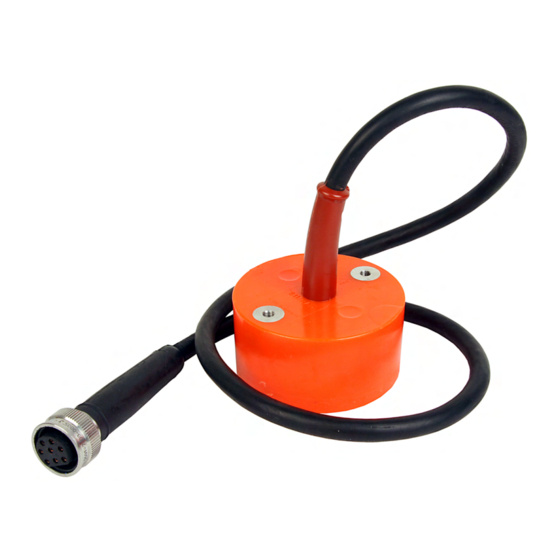

- Page 1 Installation manual Simrad ES333-7CD 200 kHz split-beam deep water transducer www.simrad.com T E C H N O L O G Y F O R S U S T A I N A B L E F I S H E R I E S...
- Page 3 Simrad ES333-7CD Installation manual This document provides a general description of how to install the Simrad ES333-7CD Split-beam transducer. The information must be regarded as general guidelines and recommendations only. The installation shipyard must design and manufacture installation hardware to fit the ES333-7CD transducer on each individual towed body.
- Page 4 Support If you require maintenance on your Simrad product contact your local dealer. You can also contact us using the following address: simrad.support@simrad.com. If you need information about our other products, visit www.simrad.com. On our web site you will also find a list of our dealers and distributors.
-
Page 5: Table Of Contents
Installation manual Table of contents ABOUT THIS MANUAL ............5 SIMRAD ES333-7CD ............6 TOWED BODY DESIGN ............7 HOW TO INSTALL THE TRANSDUCER ........ 9 TRANSDUCER HANDLING AND MAINTENANCE ....13 Rules for transducer handling.................13 Approved anti-fouling paints..................13 Using self-locking taps ...................14 TRANSDUCER CABLE SPLICING........ - Page 6 Simrad ES333-7CD 329787/A...
-
Page 7: About This Manual
Whenever required, the installation shipyard must also have the installation approved by the applicable maritime authorities. Additional information For additional detailed information about the transducer to be installed, refer to the documentation provided with the transducer. Drawings and descriptions can also be obtained from http://www.simrad.com. 329787/A... -
Page 8: Simrad Es333-7Cd
Drawing file on page 20. Technical specifications Refer to the ES333-7CD product specification. Additional parts provided for installation The following items can be supplied by Simrad to facilitate installation: • Mounting ring: ES2–204464 • Clamping ring: ES2–200879... -
Page 9: Towed Body Design
TOWED BODY DESIGN The towed body used to hold the ES333-7CD Split-beam transducer is not provided by Simrad. The design and manufacturing of such a body must be made by your own organisation, or by a third party you wish to engage to do this. - Page 10 Simrad ES333-7CD the sound energy, and may in worst cases block the sound transmission totally. Therefore, design the towed body so that it can operate in deep water. Caution Observe the maximum operational depth of the transducer. Do not exceed this limitation.
-
Page 11: How To Install The Transducer
How to install the transducer HOW TO INSTALL THE TRANSDUCER Installation on a towed body Transducers designed to withstand large water pressure are provided for use in towed bodies. The recommended installation method is through the hull plating hull using mounting and clamping rings. - Page 12 Simrad ES333-7CD Example: Installation of small transducer The illustration below shows the installation principle of a small circular transducer using clamping and mounting rings. Figure 2 Installation principle, small transducer Mounting ring Hull plating on towed body Transducer Clamping ring...
- Page 13 How to install the transducer Example: Installation of medium and large transducers The illustration below shows the installation principle of a medium or large transducers. Note that a clamping ring is not required, as the transducer body is shaped to facilitate this function.
- Page 14 Simrad ES333-7CD Example: Dual transducer arrangement in towed body The illustration below shows a typical through the hull installation of small and large circular transducers on a towed body. Figure 4 Dual transducer arrangement Small transducer Medium or larger transducer...
-
Page 15: Transducer Handling And Maintenance
An anti-fouling paint may be applied to the transducer face. Because some paint types may be aggressive to the polyurethane in the transducer face, please consult Simrad’s list of approved paints. See Approved anti-fouling paints on page 13. Cleaning the transducer face... -
Page 16: Using Self-Locking Taps
Simrad ES333-7CD Jotun Head office address: P.O.Box 2021, N-3248 Sandefjord, Norway Website: www.jotun.com. Racing Non-stop Safeguard Universal primer (125 micron) with Antifouling SeaQuantum Ultra (125 micron) Antifouling Seaguardian International Marine Coatings Address: World-wide offices Wesite: www.international-marine.com. Intersleek tie coat + 425 FCS •... - Page 17 Transducer handling and maintenance necessary to involve a secondary locking device (e.g. chemical, nylon or mechanical). The bolts withstand Emuge self-lock vibrations better than standard (metric) threads, because the thread contact stops the sideways movement. The special design of the internal thread profile also provides a more even distribution of the tightening stress over the whole thread length.
- Page 18 Simrad ES333-7CD • Internal threads can be produced with taps, cold Emuge forming taps or thread mills • Larger thread hole diameters, i.e. increased tool life for threading tools • Larger tolerances for thread hole diameters Drawing standard Whenever self-locking threads are required, this is shown on the technical drawing.
- Page 19 Gauge gauges. Note that the gauge must be used Emuge self-lock in the correct direction. Self-lock taps provided by Simrad The following self-lock taps are on stock at Simrad, and can be ordered from us. Threads Drill diameter for Part.no threads ø5.2...
-
Page 20: Transducer Cable Splicing
If you need to cut or lengthen the transducer cable, you must splice it correctly. The cable between the junction box and the transceiver must then be supplied by Simrad, and this must be the same type as used on the transducer(s). To splice the cable, use a metal junction box with EMC cable glands and a terminal block. -
Page 21: Steel Conduit
Steel conduit STEEL CONDUIT Why use steel conduits with a towed body? It is strongly recommended to lay a steel conduit from the connection point of the tow cable to the echo sounder transceiver, and to pull the transducer cable through this conduit. There are several reasons for this. -
Page 22: Drawing File
Simrad ES333-7CD DRAWING FILE This chapter contains relevant drawings related to the electrical and physical installation of the ES333-7CD Split-beam transducer. Note The mechanical drawings are for information and guidance only. They are not in scale. All dimensions are in mm unless otherwise is noted. -
Page 23: General Purpose Transceiver (Gpt) Wiring
Drawing file General Purpose Transceiver (GPT) wiring 329787/A... -
Page 24: General Purpose Transceiver (Gpt) Transducer Plug Assembly
Simrad ES333-7CD General Purpose Transceiver (GPT) transducer plug assembly 329787/A... -
Page 25: Outline Dimensions And Installation Drawings
Drawing file Outline dimensions and installation drawings Note Observe the maximum torque (17 Nm) when the transducer is bolted into the mounting ring! Topics • Outline dimensions [318747] on page 24 • Mounting ring [204449] on page 25 • Clamping ring [204451] on page 27 329787/A... -
Page 26: Outline Dimensions [318747]
Simrad ES333-7CD Outline dimensions [318747] 329787/A... -
Page 27: Mounting Ring [204449]
Drawing file Mounting ring [204449] 329787/A... - Page 28 Simrad ES333-7CD 329787/A...
-
Page 29: Clamping Ring [204451]
Drawing file Clamping ring [204451] 329787/A... - Page 30 Simrad ES333-7CD 329787/A...
- Page 31 GPT Transducer plug drawing, 24 drawing, 22 Protruding objects, 8 Purpose this manual, 5 Handling, 13 Handling rules, 13 Heat, excessive Self-locking taps, 14 do NOT expose, 13 Shielding steel conduit, 19 Simrad website, 5 Inclination Smooth surface, 9 329787/A...
- Page 32 Simrad document number: 329787 ISBN: 978-82-8066-105-0 © 2009 Kongsberg Maritime AS...
