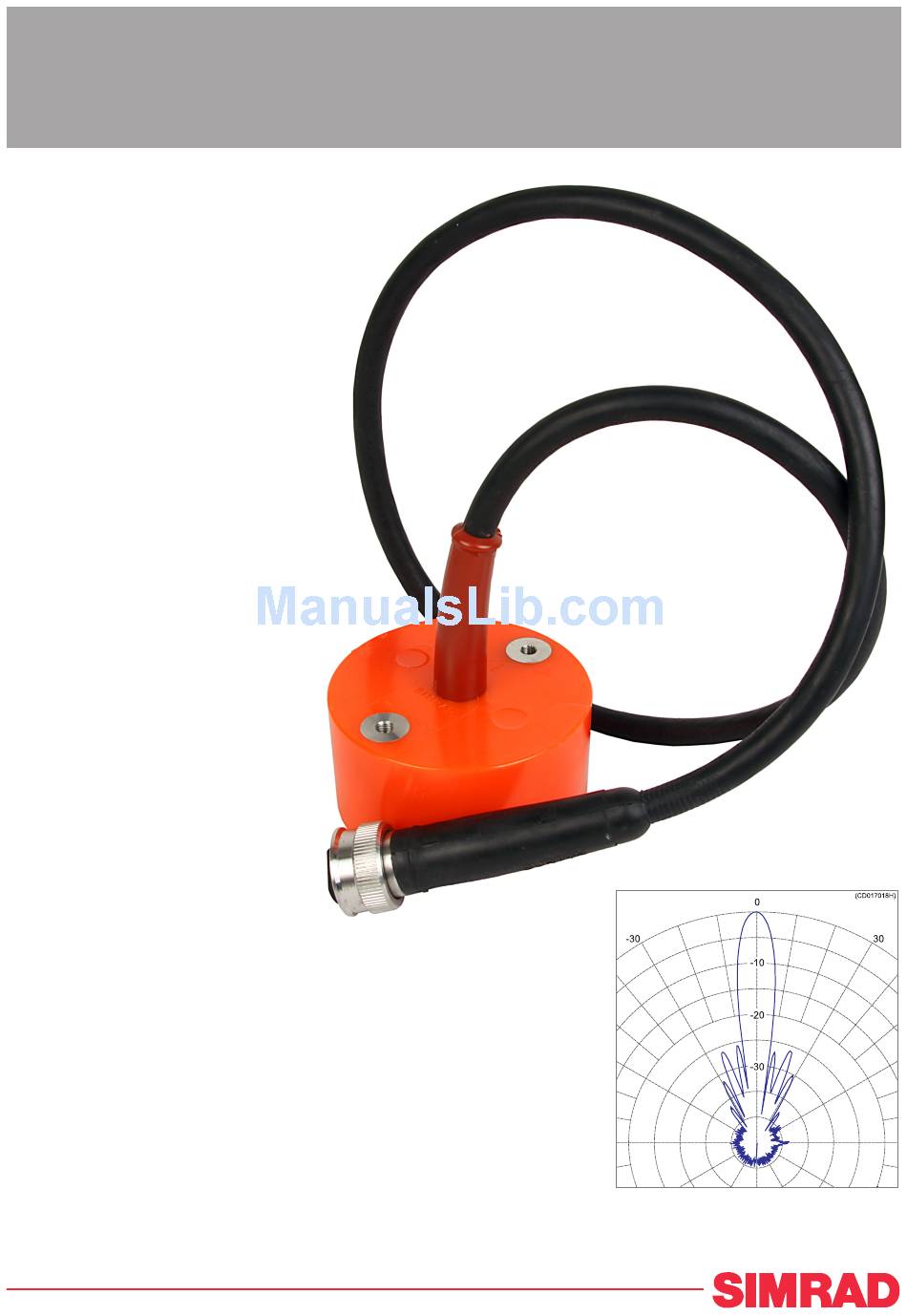

Simrad ES200-7CD
Split beam echo sounder transducer

Introduction

The Simrad ES200-7CD is a split-
beam composite transducer with a
large bandwidth. This provides a fine
range resolution, which is important
for single fish detection and target
strength measurement. The transducer
has four quadrants. The ES200-7CD
has been design to withstand a large
water pressure, and is therefore well
suited for towed bodies.

Order number

KSV-207134

Technical specifications

The following specifications are
valid for a 100 W pulse when all four
quadrants are wired in parallel.
• Resonant frequency: 200 kHz
• Circular beamwidth: 7 deg
• Directivity:
D: 650
DI = 10 log D: 28 dB
• Equivalent two-way beam angle:
Ψ: 0.009
10 log Ψ: -20.5 dB
• Side lobes: Less than -21 dB
• Back radiation: Less than -35 dB
• Nominal impedance: 19 ohm
Each quadrant: 75 ohm
• Transmitting response:
184 dB re 1μPa per V
• Receiving sensitivity, open
circuit: -190 dB re 1V per μPa
• Electro-acoustic efficiency: 0.6
• Max. pulse power input: 300 W
• Max. continuous input: 3 W
• Max. transducer depth: 1500 m
• Cable length: 1.5 m
• Connector: Burton (5501-2008)
• Weight: Approximately 2 kg
• Storage temperature: -20° to 55°C
T E C H N O L O G Y
F O R
S U S T A I N A B L E
www.simrad.com
F I S H E R I E S
Beam pattern
