Max winch tray & hdx winch mount grille guard

Advertisement

Quick Links

NOTE: Winch Tray Kit packaged
separately.
Winch Tray Kit: 46-24045
ITEM
QUANTITY
1
1
2
1
3
1
4
2
5
2
6
4
7
4
8
6
9
6
10
6
11
2
12
2
13
6
14
4
15
16
16
14
17
16
18
2
19
1
20
1
21
1
22
2
23
2
24
2
25
1
26
1
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-4624045-RevA
ECO #: W20-0084
INSTALLATION INSTRUCTIONS

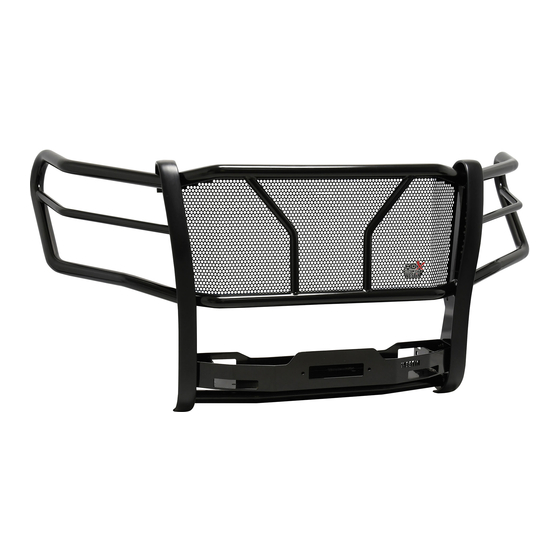

MAX WINCH TRAY & HDX WINCH MOUNT GRILLE GUARD
CHEVROLET SUBURBAN/TAHOE 2021
Complete Kit: 57-94045
Grille Guard Kit: 57-94045A
NOTE: THIS PRODUCT WILL NOT WORK WITH PARKING SENSORS

CONTENT

DESCRIPTION
MAX WINCH TRAY
DRIVER TRAY BRACKET
PASSENGER TRAY BRACKET
SUPPORT PLATE
SPACER PLATE
49MM FLAT WASHER
58MM FLAT WASHER
M12 HEX HEAD BOLT
M12 FLAT WASHER
M12 LOCK WASHER
SHORT M10 HEX HEAD BOLT
M10 HEX NUT
M10 FLAT WASHER
M10 LOCK WASHER
M12 BUTTON HEAD BOLT
M12 SERRATED FLANGE NUT
M12 BELLVILLE WASHER
LONG M10 HEX HEAD BOLT
Winch Mount Grille Guard Hardware:
GRILLE GUARD
DRIVER STRAP
PASSENGER STRAP
M10 BUTTON HEAD BOLT
M10 BELLVILLE WASHER
M10 SERRATED FLANGE NUT
DRIVER TEMPLATE
PASSENGER TEMPLATE
1
APPLICATION:
PART NUMBER:
Thank you for choosing Westin products
for additional installation assistance please call
Customer Service (800) 793-7846
www.westinautomotive.com
TOOLS NEEDED
UTILITY KNIFE
SCREWDRIVER
18MM WRENCH
18MM SOCKET
15MM WRENCH
15MM SOCKET
10MM SOCKET
7MM SOCKET
T15 TORX BIT
8 MM ALLEN
WRENCH
6 MM ALLEN
WRENCH
RATCHET
RATCHET EXT.
TORQUE WRENCH
HAMMER
DATE: 04/09/21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 57-94045 and is the answer not in the manual?

Questions and answers

Summary of Contents for Westin 57-94045

  • Page 1 DRIVER TEMPLATE PASSENGER TEMPLATE ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING Thank you for choosing Westin products Westin Automotive Products, Inc. 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca.
  • Page 2 Remove all the screws under the vehicle to loosen the bottom part of the fascia. (Figures 4 & 5) 6. Remove screw under each side of the fenders. (Figures 6 & 7). FIGURE 1 Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com...
  • Page 3 8. Pull the plastic cover on top of the internal bumper and from radiator support and discard it. 9. If equipped with tow hooks remove them. Tow hooks will not be reused. Thank you for choosing Westin products Westin Automotive Products, Inc.
  • Page 4 12. Before installing the front fascia, trim the lower grille slots as shown in the images below. Note: See Figure 10- 13. Reinstall the front Fascia Tahoe Z71 FIGURE 11 FIGURE 10 Thank you for choosing Westin products Westin Automotive Products, Inc. 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com...
  • Page 5 14. Using supplied M12 hardware, loosely assemble the winch tray and spacer plate to the tray brackets. Note: If your are using the optional Westin tow hooks 46-3005, discard the spacer plates (5) and install in the same location. See Figures 12 and 13 15.
  • Page 6 STAINLESS STEEL PRODUCTS CAN BE CLEANED WITH MILD SOAP AND WATER. STAINLESS STEEL POLISH SHOULD BE USED TO POLISH SMALL SCRATCHES.  GLOSS BLACK FINISHES SHOULD BE CLEANED WITH MILD SOAP AND WATER. Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com...
  • Page 7 AND SAFETY. DRILLING: Most Westin products do not require drilling for installation. If drilling is defined as required, use caution when drilling a vehicle. FAILURE TO REVIEW AN AREA TO BE DRILLED MAY RESULT IN PERSONAL INJURY AND/OR INJURY TO OTHERS AS WELL AS VEHICLE DAMAGE.
