Steelcase Amia 482 Installation

Height adjustment handle

Hide thumbs Also See for Amia 482:

Download this manual

482 Amia

™

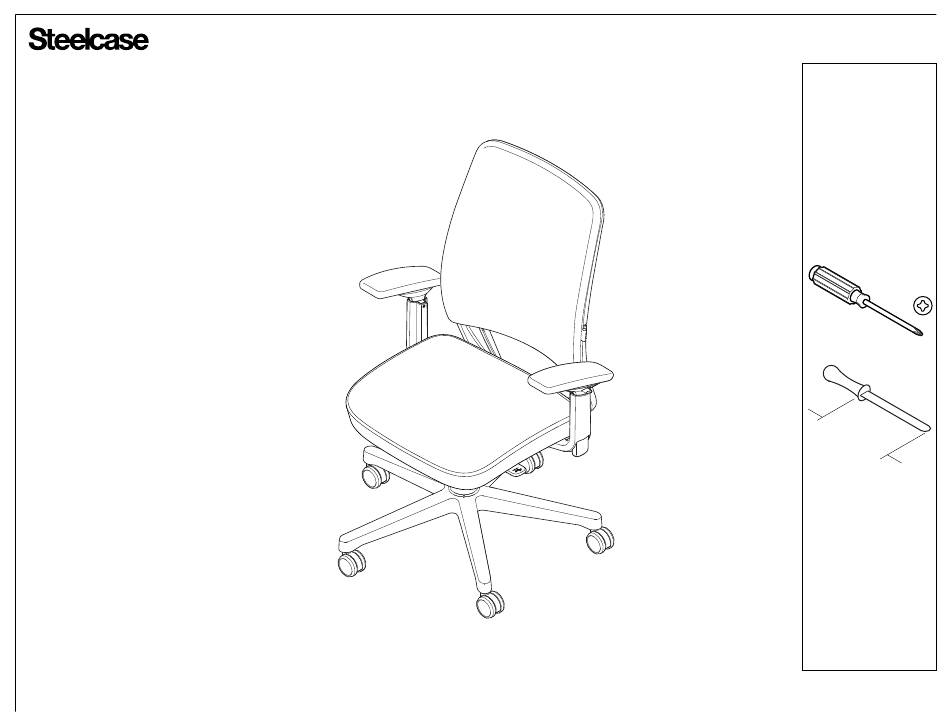

Height Adjustment Handle Installation

or a flat-bladed

screwdriver that is 8"

or longer

If you have a problem, question, or request, call

your local dealer, or Steelcase Line 1 at

888.STEELCASE (888.783.3522)

for immediate action by people who want to help you.

(Outside the U.S.A., Canada, Mexico, Puerto Rico,

and the U.S. Virgin Islands, call: 1.616.247.2500)

Or visit our website: www.steelcase.com

2014 Steelcase Inc.

Grand Rapids, MI 49501

U.S.A.

Page 1 of 4

939548212 Rev A

Printed in U.S.A.

Need help?

Do you have a question about the Amia 482 and is the answer not in the manual?

Page 1 8" or longer If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
Page 2 ® Removal of the Seat Locate the white quick release tab located on the left hand side of the chair (as you sit in it) between the plates. Lift the quick release tab (2a) while lifting the seat slide lever (2b) and sliding REAR the seat forward &...
Page 3 ® HOLE IN BOTTOM PLATE Feed pneumatic lever through hole in bottom plate (3a), over cylinder and into black plastic retainer (3b). Insert set screw and adjust the pneumatic lever to have 1/4" of free vertical movement. PNEUMATIC LEVER CYLINDER BLACK PLASTIC RETAINER PNEUMATIC...
Page 4 ® Align the seat with the chair control and engage the slots on the bottom of the seat with the tabs located on the seat bearings (5a). Slide seat fully backward while holding up on the seat slide lever (5b). SLOT ON BOTTOM TAB ON BEARING OF CHAIR...
