Steelcase AMQ Currency Enhanced Manual

Currency

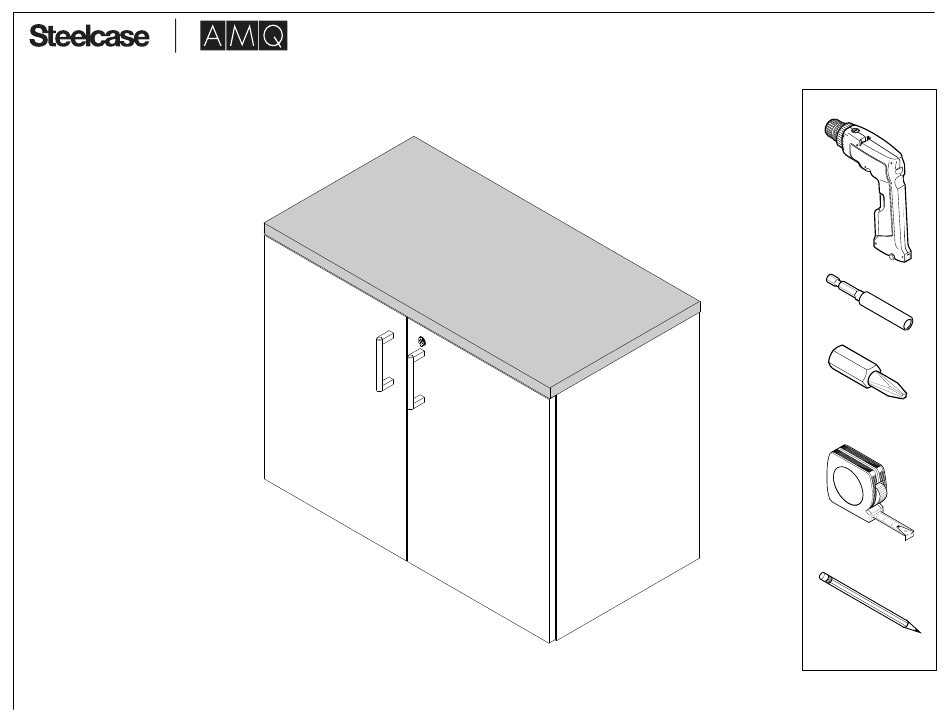

Enhanced - Adding a Top to a No-Top Option

on a Low Storage Cabinet or AMQ

Embank

If you have a problem, question, or request,

call your local dealer, Steelcase Line 1 at

888.STEELCASE (888.783.3522) or AMQ

Page 1 of 4

Customer Care (877.801.0370) for immediate

Doc # 158157 Rev B

action by people who want to help you.

Table of Contents

Need help?

Do you have a question about the AMQ Currency Enhanced and is the answer not in the manual?

Page 1 ® on a Low Storage Cabinet or AMQ Embank If you have a problem, question, or request, call your local dealer, Steelcase Line 1 at 888.STEELCASE (888.783.3522) or AMQ Page 1 of 4 Customer Care (877.801.0370) for immediate Doc # 158157 Rev B...
Page 2 ® ® Place low storage cabinet upside down on the worksurface and align with back and sides of the low storage cabinet. (Do not install at this time) FLUSH FLUSH FLUSH Page 2 of 4 Doc # 158157 Rev B...
Page 3 ® ® Mark the worksurface at the end of the locking door. (2a) Remove the low storage cabinet, then add the two (2) lines per the dimensions shown (2b). 1" (25.4mm) 1-1/2" (36.75mm) NOTE: Cabinet is shown without the bottom for clarity. Page 3 of 4 Doc # 158157 Rev B...
Page 4 ® ® Place the lock strike bracket flush with the lines made in step 2b and mark the holes as shown (3a). Remove the lock strike bracket and drill two (2) 3/32" dia. x 1/2" deep holes in the marked locations (3b). Position lock strike bracket over drilled holes and attach with two (2) #6-18 x 5/8"...
