Arkon TAB188L22 Manual

TAB188L22 | 22" Flexible Aluminum Car Seat Rail or Floor Mount
TAB001

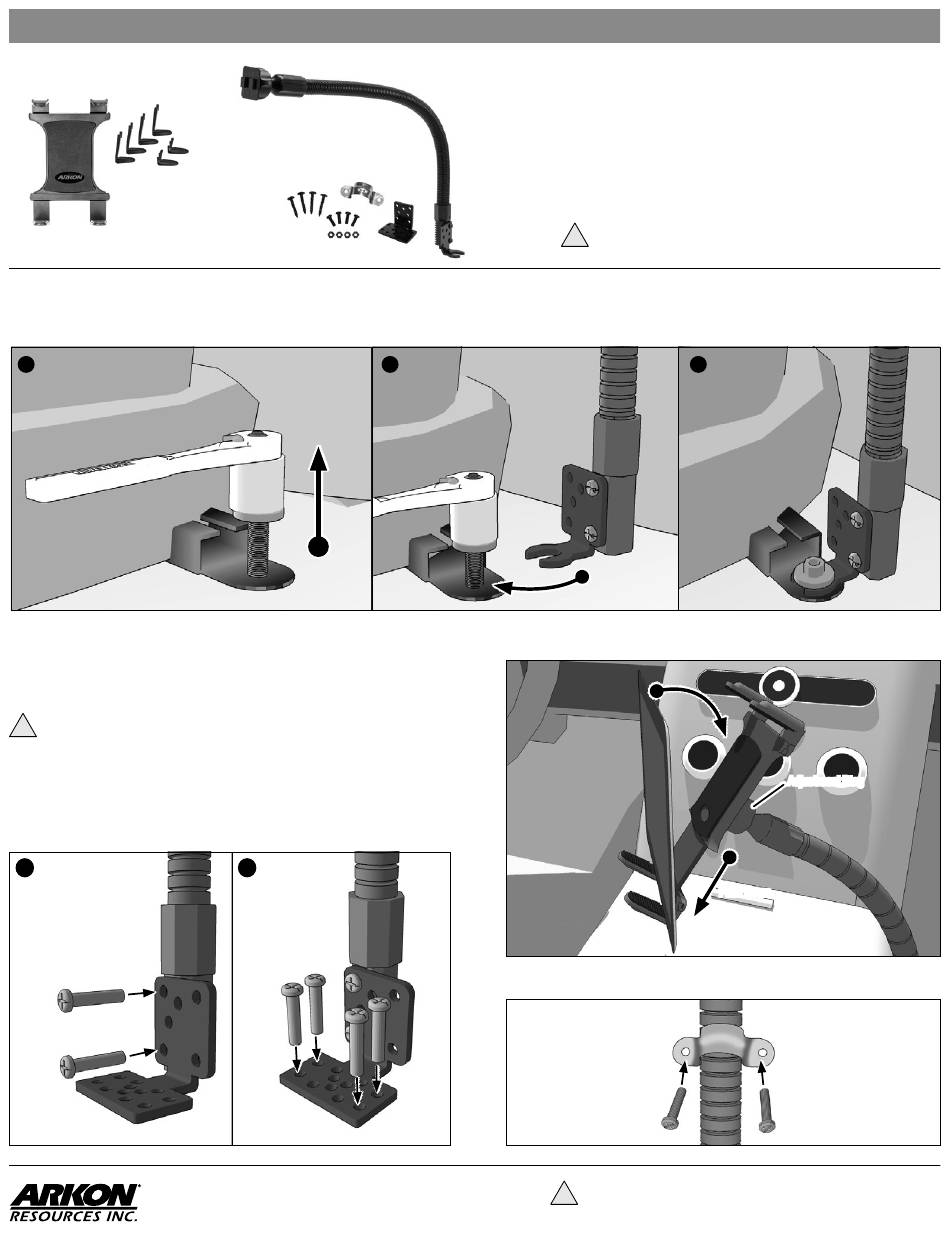

Passenger Seat Bolt Mounting
For a simple mount that can be easily moved to another vehicle, install using the passenger seat track bolt.
1
With a socket wrench, loosen the passenger seat track bolt
Alternative Floor or Console Mounting
For permanent installation, connect the Floor / Console Mount Bracket to the floor
or console. This will require drilling into your vehicle's interior surface.
Drilling into the dash, floor, or console will permanently damage the vehicle. Use
!
caution and consult a mobile install professional to avoid drilling into the gas tank,
electrical system or other highly sensitive vehicle components.
Screw the mount bracket to the mount. Depending on your vehicle, you
Fig. A
may need to change the orientation of the bracket.
Fig. B Attach the Floor / Console Bracket with screws.
A
Mount Base
Floor Bracket
The Mobile Mounting Specialists™
GN088-L22-SBH
B
Mount Base
Floor Bracket
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in Taiwan & China
© Copyright 2017 Arkon Resources, Inc.
2
Insert the seat track bolt bracket
Attach Holder and Mount Device
Optional: Attach included metal conduit to console to minimize vibration.
!
Consumer Hotline:
USA (800) 841-0884
INT'L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
Package Contents:
(1) TAB001 – Slim-Grip® Universal Tablet Holder
(1) GN088-L22-SBH – 22" Flexible Car Seat Rail or Floor Mount
The Slim-Grip Universal Tablet Holder fits all tablets with 8.9" - 18.4" screen size.
It includes 4 short, 2 medium, and 4 long support legs. Select a combination of 4
support legs in conjunction for use with the spring-loaded holder to achieve the
perfect fit for your tablet.
Do not place mount in or near an air bag deployment zone or
!
where it will obstruct view of the road.
3
Retighten the seat track bolt
Push Down
Safety Precautions
Arkon is not responsible for any damages caused to your vehicle, your device, or yourself due to
the installation or use of this pedestal mount.
Do not install Arkon products over an air bag cover or within the air bag deployment zone. Arkon
Resources, Inc. assumes no responsibility of liability for injury or death as a result of car crashes
and / or air bag deployment.
rev. 032417
Adjustment Ring
