Arkon TTGO129-ST-RVC User Manual

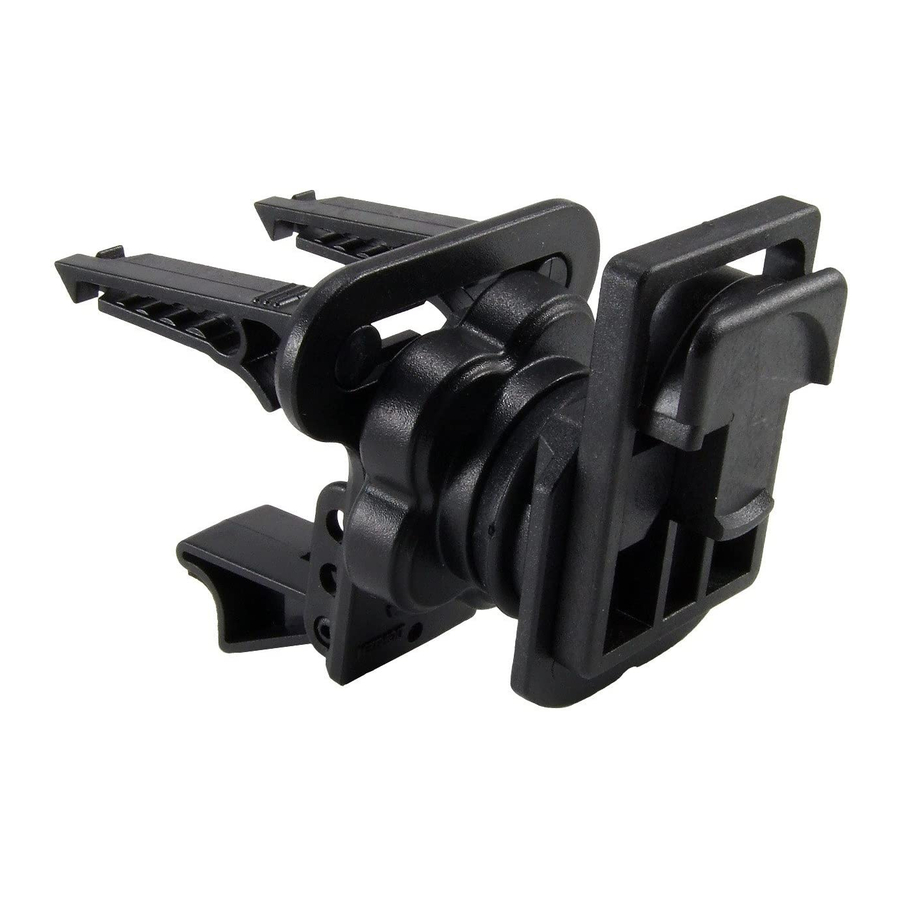

TTGO129-ST-RVC | Removable Air Vent Mount for Tomtom Go 520/720/920/920T

Compatible with:

Pedestal Assembly

Step 1. Attach the vent mounting clips (A) to the back of the pedestal
(B) with the vent clips positioned with the flat sides facing up.
Flat side face up
(A)

Insertion of Pedestal into the Air Vent

Pinch the vent mounting clips (A) so that the teeth open and
Step 1.
gently insert vent pedestal into vent louvres until the mounting
leg (C) vertically until it rests firmly along the bottom of the vent
or dash surface below the vent.
(C)

Pedestal Removal

Step 1.
(A)
Step 2.
Use caution when removing the pedestal. Make sure that the
teeth of the vent clips are open enough to not damage vent.

Safety Precautions

Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no
responsibility of liability for injury or death as a result of car crashes
and/or air bag deployment.
Arkon Resources, Inc. is not responsible for any damages caused to
your car, your device, or yourself due to the installation or use of the
pedestal mount.
(B)
(A)
Remove the device from the vent
mount assembly.
Pinch the vent clips (A) so that the
teeth open and carefully slide the
CM047-ST2-RVC
Pedestal Adjustment & Device Cradle Installation
Step 1. Adjust the lateral angle and the 360 rotation of the pedestal
head by loosening the swivel tightening ring (D).
Use caution when adjusting the swivel movement to avoid
damaging your air vents.
Step 2. Attach the device to the pedestal by inserting the dual T-Tabs of
the pedestal (E) into the T-slots of the cradle (F).

Instructions for APTTGO520 Adapter Plate

Step 1.
Attach the adapter plate by sliding it up into the slot on the back
of the Tomtom GO 520, 720, 920, and 920T device as shown above.
Step 2.
Follow step 2 from Pedestal Adjustment & Device Cradle
Installation above.
