Arkon RoadVise TAB5CPM3835 Manual

TAB5CPM3835 | RoadVise
1

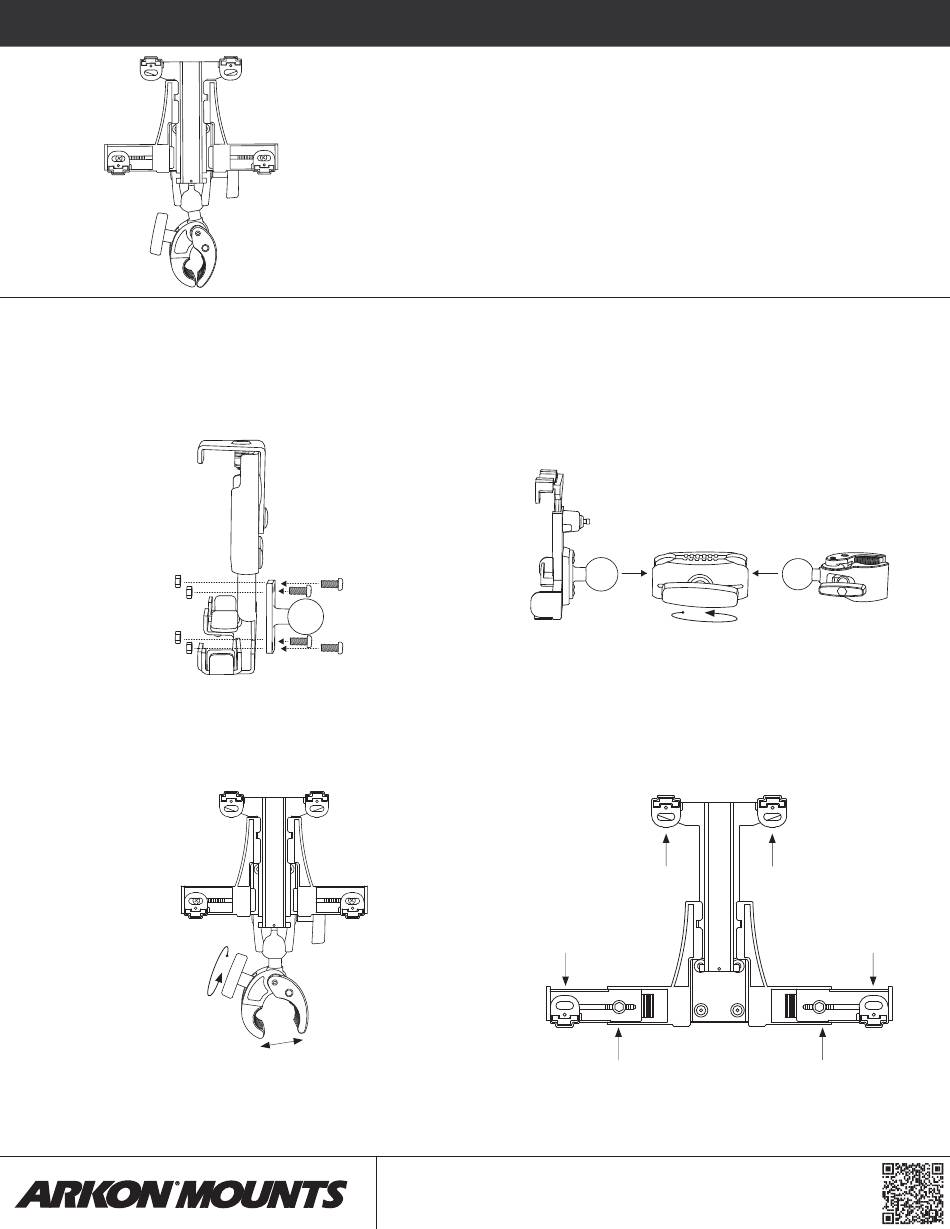

Installing the Universal Locking tablet holder to the 38mm
AMPS 4-hole adapter ball mount
Locate the packaging containing the AMPS 4-hole adapter
ball mounts and the Universal Locking tablet holder with
installation hardware. Install the four mounting screws using
the wrench hex key through the 38mm AMPS 4-hole ball
adapter plate and into the tablet holder.
3
How to adjust the RoadVise clamp mount
Turn the knob on the clamp mount counterclockwise to expand
the clamp arms to your desired width. Expand the arms by gently
pulling them apart. Mount to your application surface and tighten
the knob clockwise to secure.
WARNING
CHOKING HAZARD - Keep out of reach from children under 8 yrs. as they can choke or suffocate on parts included with this system.
WARNING
Arkon is not responsible for any damages caused to your device or yourself due to the installation or use of this mount. Do not install Arkon
®
no responsibility or liability for injury or death as a result of failure to install in a safe location. Arkon
Clamp Mount with Universal Locking Tablet Holder and 3.5" Arm
®
TAB5CPM3835
USA
INT'L (626) 254-9005
Monday - Friday 9 am - 5 pm PST
Includes:
1 – Manual
1 – Universal locking tablet holder
4 – Screws
(8#-32x1/2" pan head, hex drive)
1 – Wrench Key
(2.38mm hex)
2 – Locking Keys
2 – Foam Padding
1 – 38mm AMPS 4-Hole Adapter Ball Mounts
1 – Shaft Arm
(SPRM3835)
1 – RoadVise Clamp Mount
IMPORTANT: Clean the application surface and make sure
it is free of dirt, dust, and grease before installing the
mounting hardware.
2
Assemble the components
Locate the RoadVise clamp mount, shaft arm, and
Universal Locking tablet holder. Loosen the knob to allow
the ball adapters to insert into the shaft arm by turning it
counterclockwise. Insert the ball mounts to either end of the
shaft arm and turn the knob clockwise to tighten.
4
Adjusting the length of the tablet holder
To adjust the tablet holder, use a Phillips screwdriver. Loosen the
screws in order to expand the width and depth of the holder.
products near areas that intefere with operation of vehicles. Arkon
®
is not responsible for any damages caused to vehicles, product, or people due to the installation or use of this product.
®
(800) 841-0884
(TAB005KL)
(APMAMPS38MM)
(CPM38)
Need assistance?
arkon.com
Scan to email our
Designed in USA
Arkon
© Arkon Resources, Inc.
assumes
®
customer
®
service team.
