Arkon SkyHold AV7530 Manual

AV7530 | SkyHold™ Phone Clamp Mount - MagSafe Compatible
SPMAGS01
SP25MM17

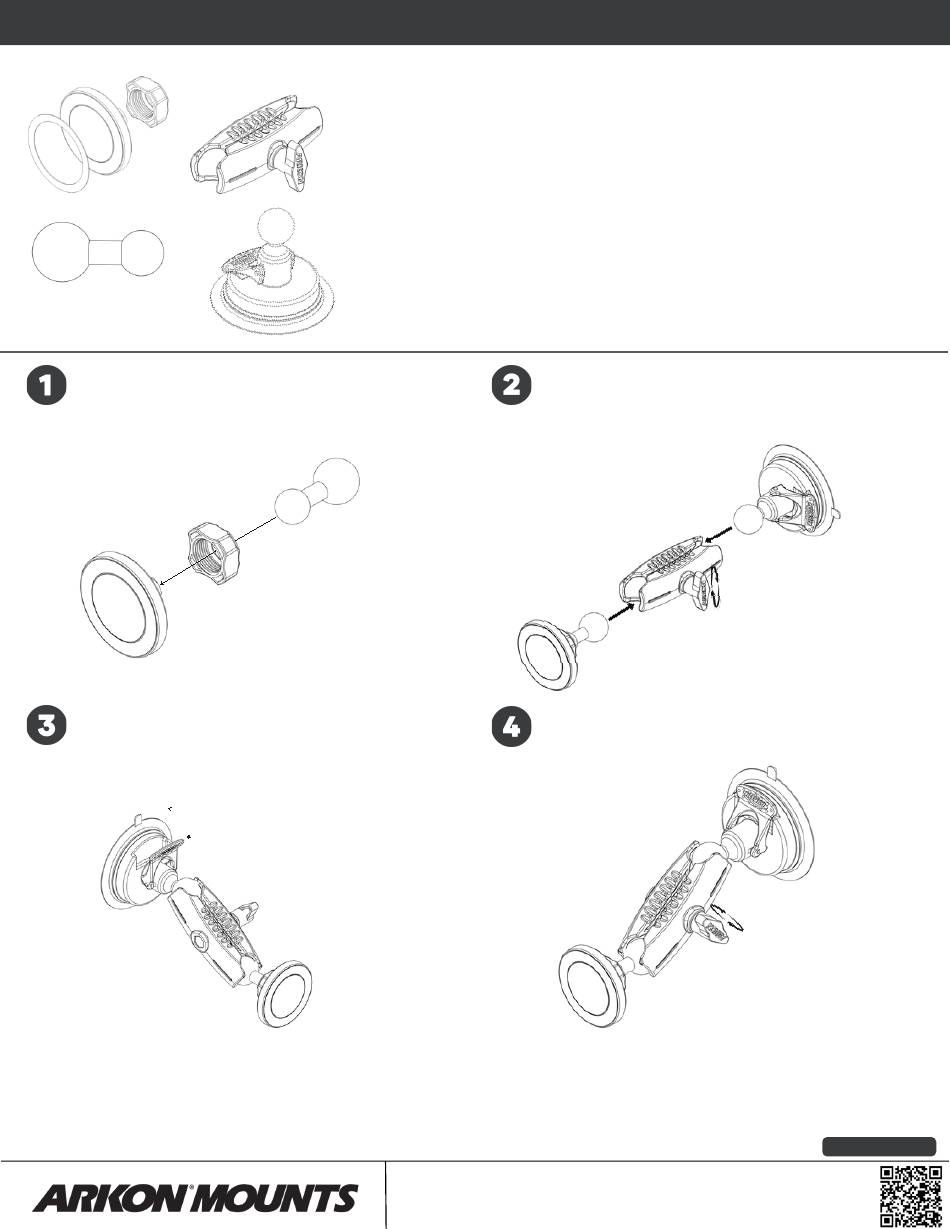

Attach the components
Position the tightening ring over the 17mm ball
adapter. Insert the magnetic holder into the adapter.
Secure the connection by tightening the ring in place.
Install the suction cup on surface
Install the suction cup base on a clean, dry, flat
surface using provided alcohol pad. Remove protective
film, press suction cup firmly, and secure by flipping
the lever down.
Lever
WARNING
CHOKING HAZARD - Keep out of reach from children under 8 yrs. as they can choke or suffocate on parts included with this system
WARNING
Arkon® is not responsible for any damages caused to your device or yourself due to the installation or use of this mount. Do not install Arkon® products near areas that intefere with operation
of vehicles. Arkon® assumes no responsibility or liability for injury or death as a result of failure to install in a safe location. Arkon® is not responsible for any damages caused to vehicles,
product, or people due to the installation or use of this product.
SP-RM250
SPRM081
USA (800) 841-0884
INT'L (626) 254-9005
Monday - Friday 9 am - 5 pm PST
Includes:
1 – MagSafe magnet holder with tightening ring (SPMAGS01)
1 – 25mm ball to 17mm ball adapter (SP25MM17)
1 – Robust™ Series 3.75 inch shaft arm (SP-RM250)
1 – Suction base with 25mm ball (SPRM081)
Important: Clean the application surface before applying the optional
magnetic ring.
If using the optional magnetic ring, please press the adhesive back side to
the application surface firmly. Allowing 24 hours for the adhesive to cure
before using.
Assemble the components
Locate the shaft arm and turn to the adjustment knob
counterclockwise to expand. Insert the 25mm ball
ends into the shaft. Turn clockwise to tighten.
Tighten the 3.75" shaft to secure your desired position
Once the suction base is secured, tighten the shaft to
stabilize the desired position of the mount.
