Arkon RoadVise TAB4CPM38 Manual

TAB4CPM38 | RoadVise
1

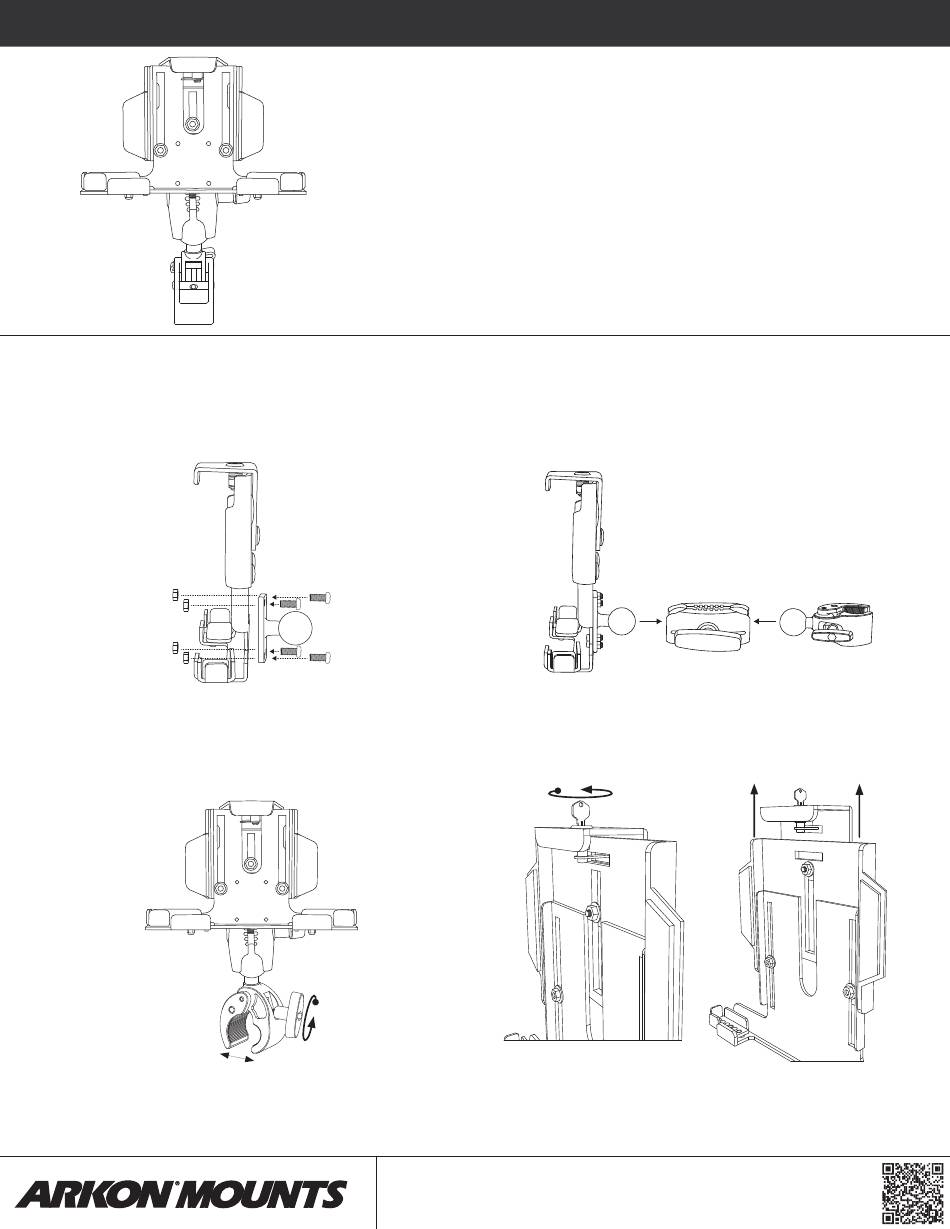

Installing the Universal Metal Locking tablet holder to the
38mm AMPS 4-hole adapter ball mount
Locate the packaging containing the AMPS 4-hole adapter
ball mounts and the Universal Metal Locking tablet holder
with installation hardware. Install the four mounting screws
through the 38mm AMPS 4-hole ball adapter plate and into the
tablet holder.
3
How to adjust the RoadVise clamp mount
Turn the knob on the clamp mount counterclockwise to
expand the clamp arms to your desired width. Expand the
arms by gently pulling them apart. Mount to your application
surface and tighten the knob clockwise to secure.
WARNING
CHOKING HAZARD - Keep out of reach from children under 8 yrs. as they can choke or suffocate on parts included with this system
WARNING
Arkon is not responsible for any damages caused to your device or yourself due to the installation or use of this mount. Do not install Arkon
®
no responsibility or liability for injury or death as a result of failure to install in a safe location. Arkon
Clamp Mount with Universal Metal Locking Tablet Holder
®
TAB4CPM38
USA
INT'L (626) 254-9005
Monday - Friday 9 am - 5 pm PST
Includes:
1 – Manual
1 – Universal Metal Locking Tablet Holder
4 – M4x12 Pan head star socket screw
4 – M4 Nut
1 – T20 Star Key Wrench
2 – Locking Keys
2 – Foam Padding
1 – 38mm AMPS 4-Hole Adapter Ball Mounts
1 – Shaft Arm
(SPRM3835)
1 – RoadVise Clamp Mount
Important: Clean the application surface and make sure
it is free of dirt, dust, and grease before installing the
mounting hardware.
2
Assemble the components
Locate the RoadVise clamp mount, shaft arm, and
Universal Locking tablet holder. Loosen the knob to allow
the ball adapters to insert into the shaft arm by turning it
counterclockwise. Insert the ball mounts to either end of the
shaft arm and turn the knob clockwise to tighten.
4
Adjusting the length of the tablet holder
To size the tablet holder to your tablet, begin by unlocking the top
of the tablet holder with the key and push up on the locking arm.
