Arkon TAB4METKL Quick Start Manual

TAB4METKL | Universal Aluminum Locking Tablet Mount with 4-Hole Metal AMPS Base
TAB004KL-B
Mounting Base & Holder
1

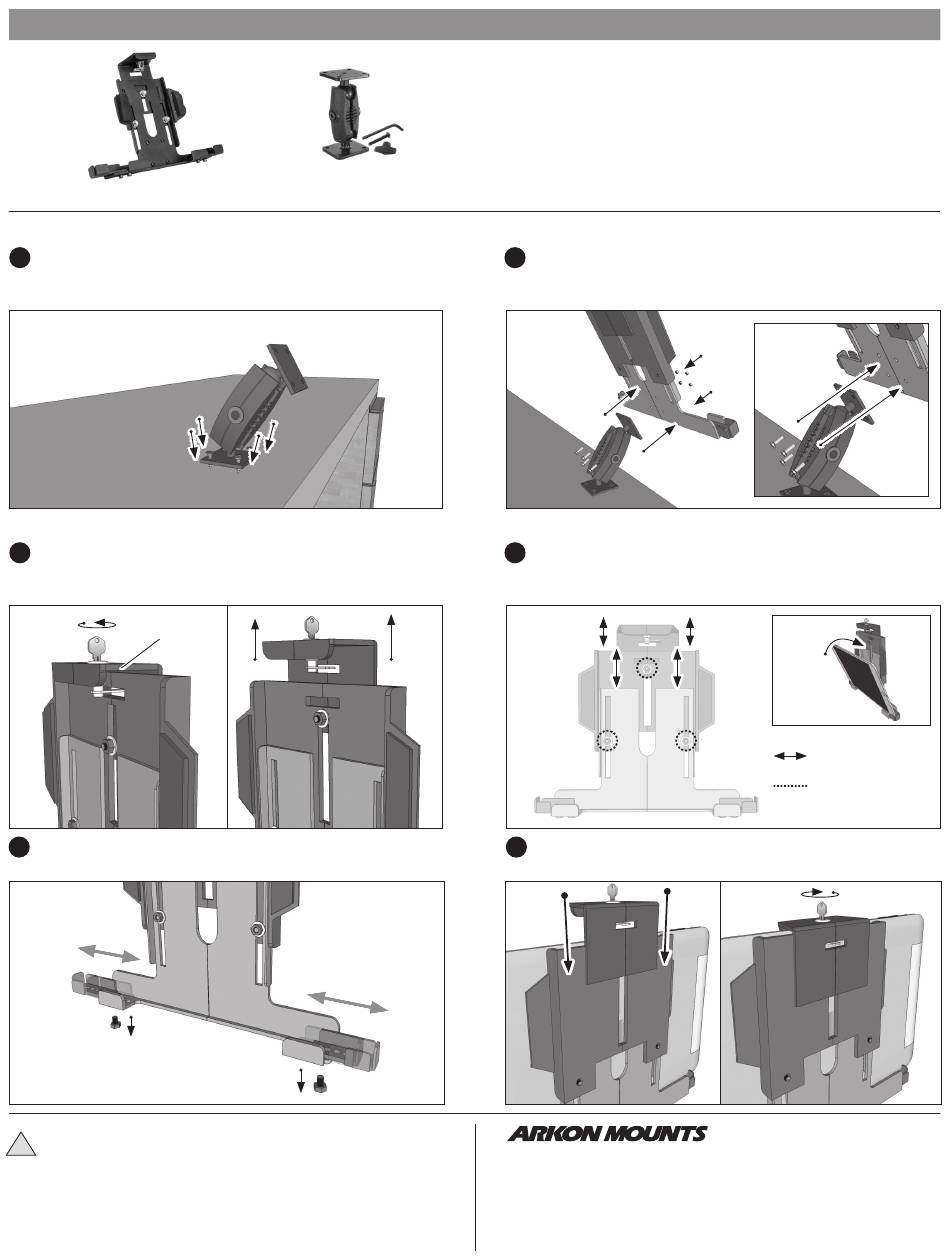

Using a screwdriver and/or drill, attach the metal AMPS mounting base
to a flat surface with 4 screws (not included).
Inserting Tablet
1
To size the tablet holder to your tablet, begin by unlocking the top of
the tablet holder with the key and push up on the locking arm.
Locking Arm Locking Arm
3
Unscrew the screws at the bottom sides of the holder to adjust the tablet
holder's width to the tablet. Tighten to secure.
! Safety Precautions
Arkon is not responsible for any damages caused to your device or yourself
due to the installation or use of this mount.
RMS2XAMPS-MET-SH
Package Contents:
(1) TAB004KL-B – Universal Metal Locking Tablet Holder with Key Lock and Keys
(1) RMS2XAMPS-MET-SH – Robust™ Shaft with AMPS Base and Security Hardware
Device Compatibility: Fits 7"-10" screen size tablets
Tools Needed: 7mm and 10mm socket wrenches
2
Connect the tablet holder to the mounting base (screws provided)
using the 4-Hole AMPS mounting pattern. Loosen adjustment knob to
reposition shaft, retighten to desired position.
2
Unscrew the three screws/washers at the back/center of the holder to
adjust the tablet holder's height to the tablet (not included). Retighten
the screws/washers to secure.
4
To lock down tablet, close down on the locking arm on the top of the
tablet and lock with key (included).
