Arkon DSLRTABMG5 Manual

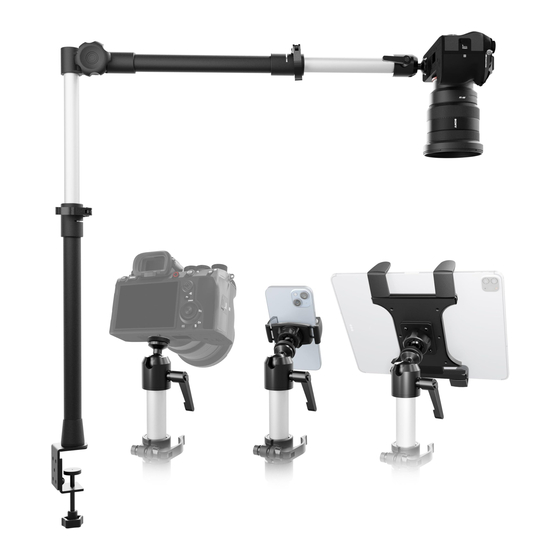

DSLRTABMG5 | Clamp Stand for DSLR Camera, Tablet, or Phone
Your Clamp Stand Bundle will arrive in eight pieces:
TAB001-AMPS
HDDSLR01B
SP-SB-AMPS-22
IMPORTANT: Do not overtighten ring. Overtightening may damage threads on holder and also
make it difficult to adjust phone and tablet holders.

TO INSTALL/ADJUST CLAMP

Turn the knob at the bottom of the clamp to
1
adjust to the desired height.
TO ADJUST VERTICAL BASE POLE HEIGHT TO ADJUST UPPER ARM ANGLE
(D) Release the lever. (E) Extend the vertical
3
pole to the desired position. (F) Close the lever
to secure position.
D E
Lever Lever
Vertical Pole Vertical Pole
SP-SB-RING-22
MG005WRB SP142022MM
SPDSLRBR SP142017MM

TO EXTEND CLAMP OPENING

(A) Remove the existing screws using the included hex key. (B) Separate the top and bottom clamp
2
brackets. (C) Position the extension bracket inside of the top clamp and insert screws.
A
*VERY IMPORTANT: Install screws through the INSIDE of the top clamp, and through the OUTSIDE of the
bottom clamp in order to keep clamp intact and prevent damage.
(G) Turn knob counter-clockwise and move
4
horizontal arm to desired position. (H) Turn
knob clockwise to secure.
Horizontal Arm Horizontal Arm
F G
Knob
H

Package Contents:

HDDSLR01B – Adjustable Clamp Mount with 1/4"-20 Camera Post
and Clamp Extension Bracket
Vertical base
TAB001-AMPS – Slim-Grip® Universal Tablet Holder
pole extends
MG005WRB – Mobile Grip 5 Universal Phone Holder
upward from
SP142017MM – 17mm Ball to 1/4"-20 Adapter
18.25 inches
SP142022MM – 22mm Ball to 1/4"-20 Adapter
to 29.5 inches.
SP-SB-RING-22 – 22mm Tightening Ring
Upper arm
SP-SB-AMPS-22 – 22mm Female to 4-Hole AMPS Adapter
adjusts from
SPDSLRBR – Optional Ceiling Mount Bracket
19 inches all
the way to
27.75 inches.
Adjustable clamp opens up to 5.12 inches.
Adapter compatible with cameras having ¼"-20 pattern. The Mobile
Grip 5 Universal Phone Holder fits phones up to 3.9" wide. The Slim-
Grip® Universal Tablet Holder fits tablets 7" – 18.4" screen size.
Top Clamp Top Clamp
Bottom Clamp Bottom Clamp
B
C
Extension Bracket Extension Bracket Extension Bracket
No thread No thread
Thread Thread

TO ADJUST UPPER ARM LENGTH

(I) Release the lever and extend. (J) Close the
5
lever to secure the arm.
I
rev.101721
Pg. 1
J
