Arkon TT136 Installation Instructions

TT136 | Bendable Adhesive Dash or Console Mount for TomTom® GPS
CM021-SB-2
Benadble Adhesive
Dash Mount
APTTGO520
Adapter plate for
TomTom GO
Check Compatibility

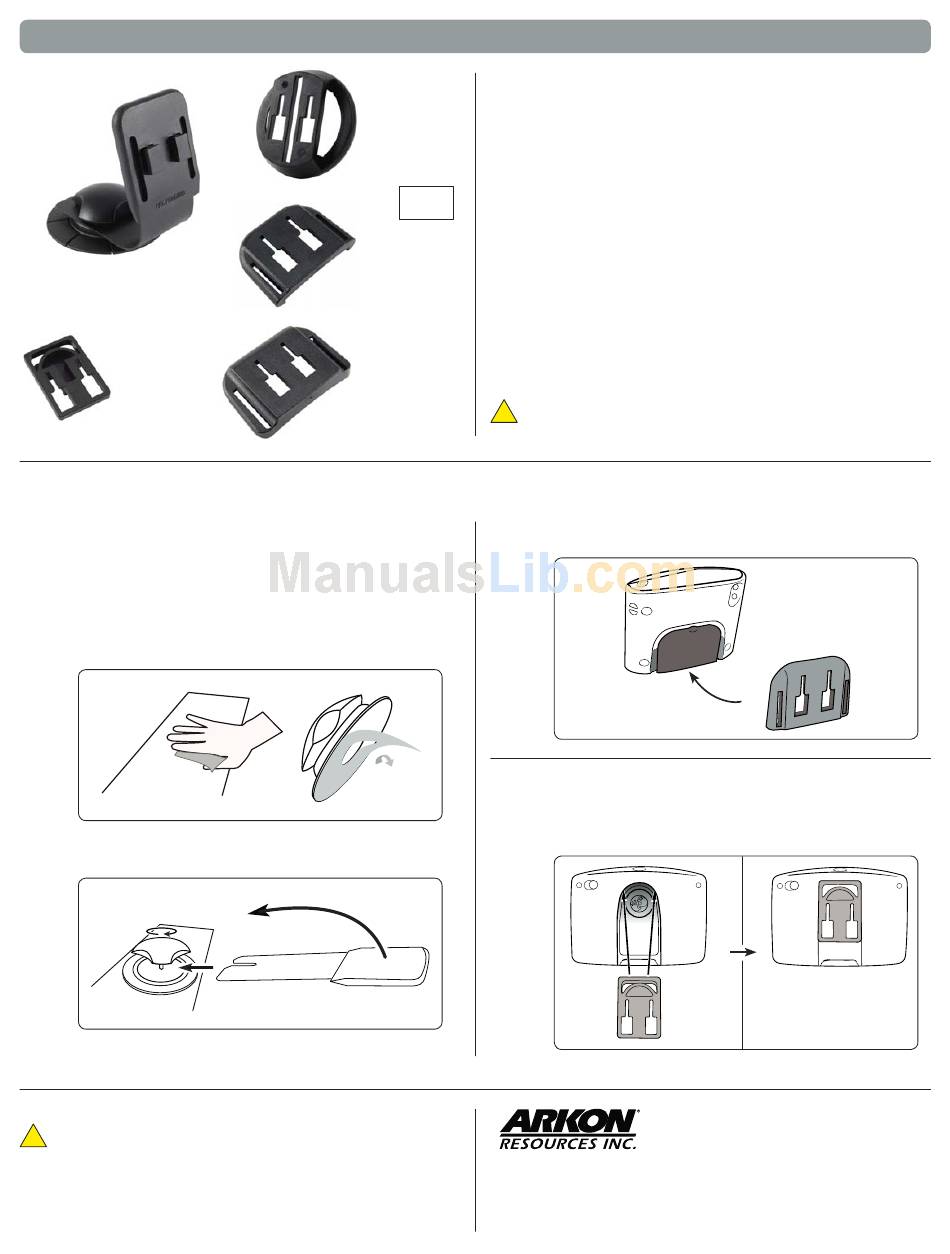

Dash or Console Installation

Step 1. Choose the best location on vehicle to place the mount.
Clean off dash or console surface with alcohol cleaning pad and
let dry. (A) Do not attempt application of the dash mount if the
temperature is below 68° F (20°C).
Remove paper liner from adhesive on base (B) and affi x adhe-
sive to the dash or console. (Let stand at room temperature for
24 hours before using.)
A
Step 2. Adjust the angle of the pedestal head by bending the fl exible
metal strip (C). Rotate the strip and tighten the base cap. (D)
D

Safety Precautions

!
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and / or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
APTTEP
Adapter Plate
for EasyPort
Check Compatibility
Patent
Pending
APTTO
Adapter plate for
TomTom ONE
Check Compatibility
APTTOXL
Adapter plate for
TomTom ONE XL
and XL • S
Check Compatibility
B
C

Package Contents:

(1) CM021-SB-2 - Bendable adhesive dash mount
(1) APTTO - Adapter plate for TomTom ONE™ Series
(1) APTTOXL - Adapter plate for TomTom ONE XL / XL • S™ Series
(1) APTTGO520 - Adapter plate for TomTom GO™ Series
(1) APTTEP - Adapter plate for TomTom EasyPort™ Series

TomTom Device Compatibility:

TomTom ONE 130, ONE 130-S (TomTom EasyPort Mount)
TomTom ONE (US Edition, US 3rd Edition)
TomTom ONE XL (1st Edition) - TomTom ONE XL-S (1st Edition)
TomTom ONE 22, ONE 22 Regional, ONE 22 Regional Traffi c
TomTom XL 22, XL 22 Regional (TomTom EasyPort Mount)
TomTom XL 330, XL 330-S (TomTom EasyPort Mount)
TomTom ONE UK / EUROPE (NEW Edition aka 2nd Edition, 3rd Edition)
TomTom GO 520 / 530 / 720 / 730 / 920 / 920T / 930
TomTom, ONE, GO, and EasyPort are product names, trademarks, or registered trademarks of
TomTom International BV. Arkon Resources, Inc. is not affi liated with TomTom International BV.
! Do not place mount in or near an air bag deployment zone
or where it will obstruct view of the road.
TomTom ONE, ONE XL, and ONE XL • S Plate Installation
Step 1. Slide the adapter plate up into the grooves on the back of the
TomTom ONE, ONE XL, or ONE XL • S.

TomTom GO Adapter Plate Installation

Step 1. Attach the adapter plate by sliding it up into the slot on the
back of the TomTom GO 520, 530, 720, 730, 920, 920T, and 930
models device as shown below.
The Mobile Mounting Specialists™
Consumer Hotline:
USA (800) 841-0884
INT'L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in China and Taiwan
© Copyright 2008 Arkon Resources, Inc.
