Arkon TAB801 Manual

TAB801 |
22" Heavy-Duty Aluminum Seat Rail Floor Mount with Universal Tablet Holder
TAB001
1

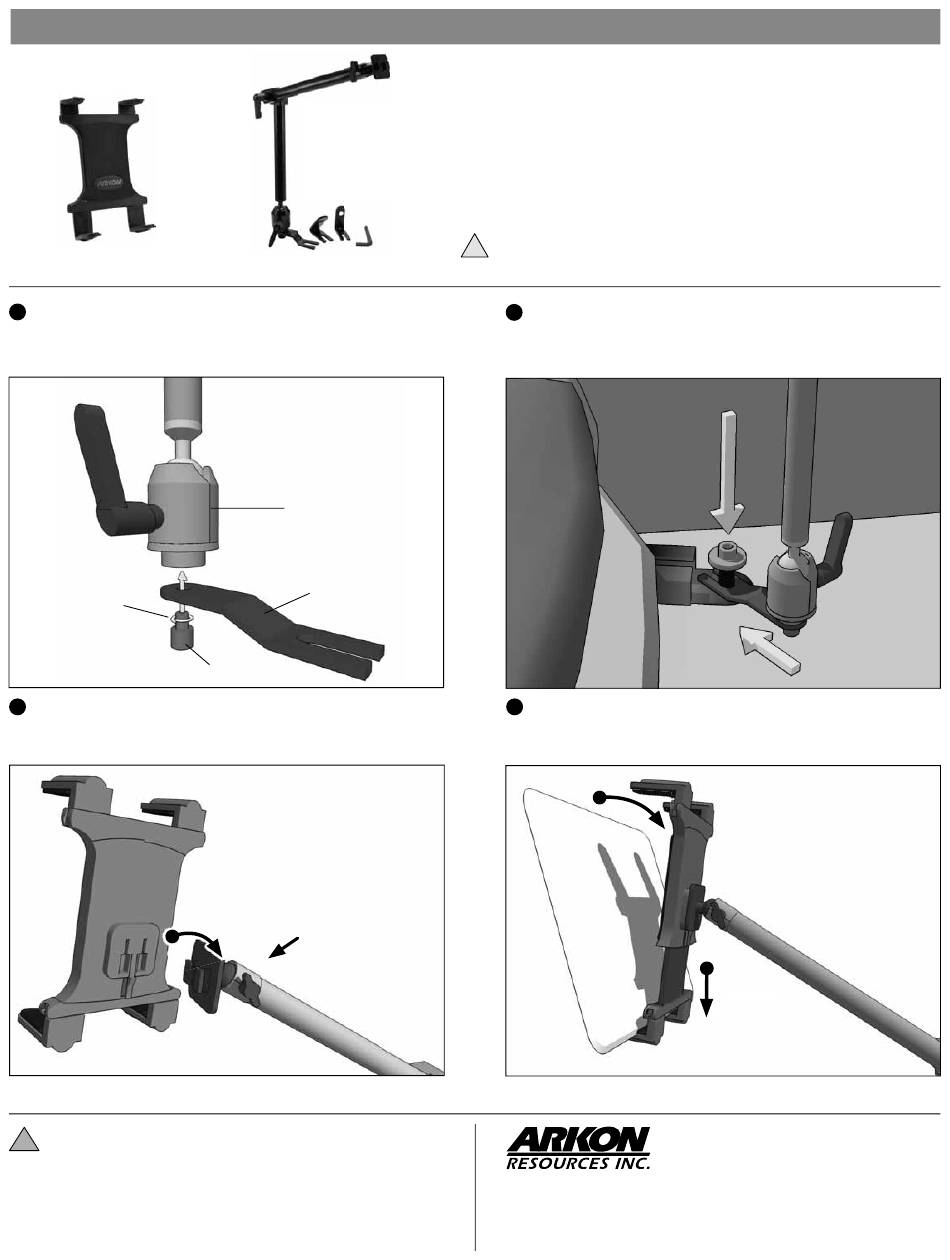

Attach the appropriate seat bolt bracket to the mount with the
included bracket bolt and hex key. Be sure to position the spring
washer between the bolt and bracket as shown.
Spring Washer
3
Attach a holder to the mount by inserting the Dual T-Tabs into the
holder and sliding the holder down to lock.
Universal Tablet Holder
!
Safety Precautions
Do not install Arkon products over an air bag cover or within
the air bag deployment zone. Arkon Resources, Inc. assumes no
responsibility of liability for injury or death as a result of car crashes
and / or air bag deployment.
Arkon is not responsible for any damages caused to your vehicle, your
device, or yourself due to the installation or use of this mount.
HD001
Mount Base
Seat Bolt Bracket
Bracket Bolt
Dual-T Head
Package Contents:
- Universal Tablet Holder
TAB001
- 22" Heavy-Duty Aluminum Floor Mount
HD001
Includes:
(3) Seat Bolt Brackets
(1) Bracket Bolt
(1) Spring Washer
(1) Hex key
IMPORTANT: Do not place mount in or near an air bag
!
deployment zone or where it will obstruct view of the road.
2
With a socket wrench, loosen the passenger seat rail bolt, insert the
seat rail bolt bracket, and retighten the seat rail bolt.
4
Insert tablet into holder by pushing down on the bottom spring-
loaded support legs with the tablet. Slide the top of the tablet
under the top support legs until it fi ts snuggly in the holder.
IMPORTANT: Install the appropriate size support legs on the holder that will work for your device.
Consumer Hotline:
USA
(800) 841-0884
INT'L (626) 254-9005
Monday - Friday 9am - 5pm, PST
Seat Rail Bolt Seat Rail Bolt
Seat Bolt Bracket Seat Bolt Bracket
Push down
The Mobile Mounting Specialists™
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in Taiwan & China
© Copyright 2015 Arkon Resources, Inc.
rev.040915
