Arkon CM014-2 Installation Instructions

TTGO115 | Travelmount® Windshield or Dash Mount for TomTom® GO™ Series

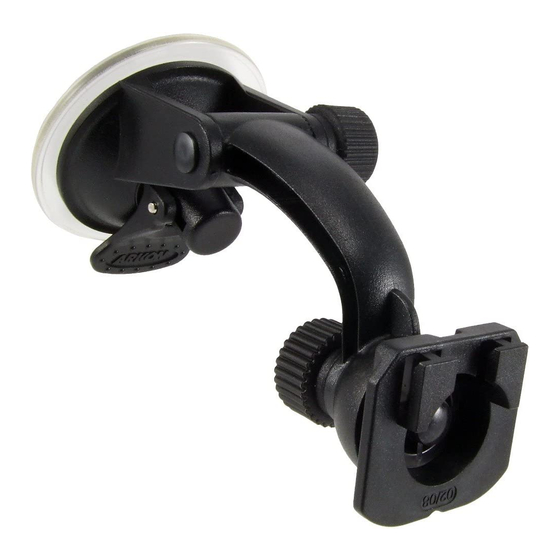

CM014-2
Mini Windshield
or Dash Mount

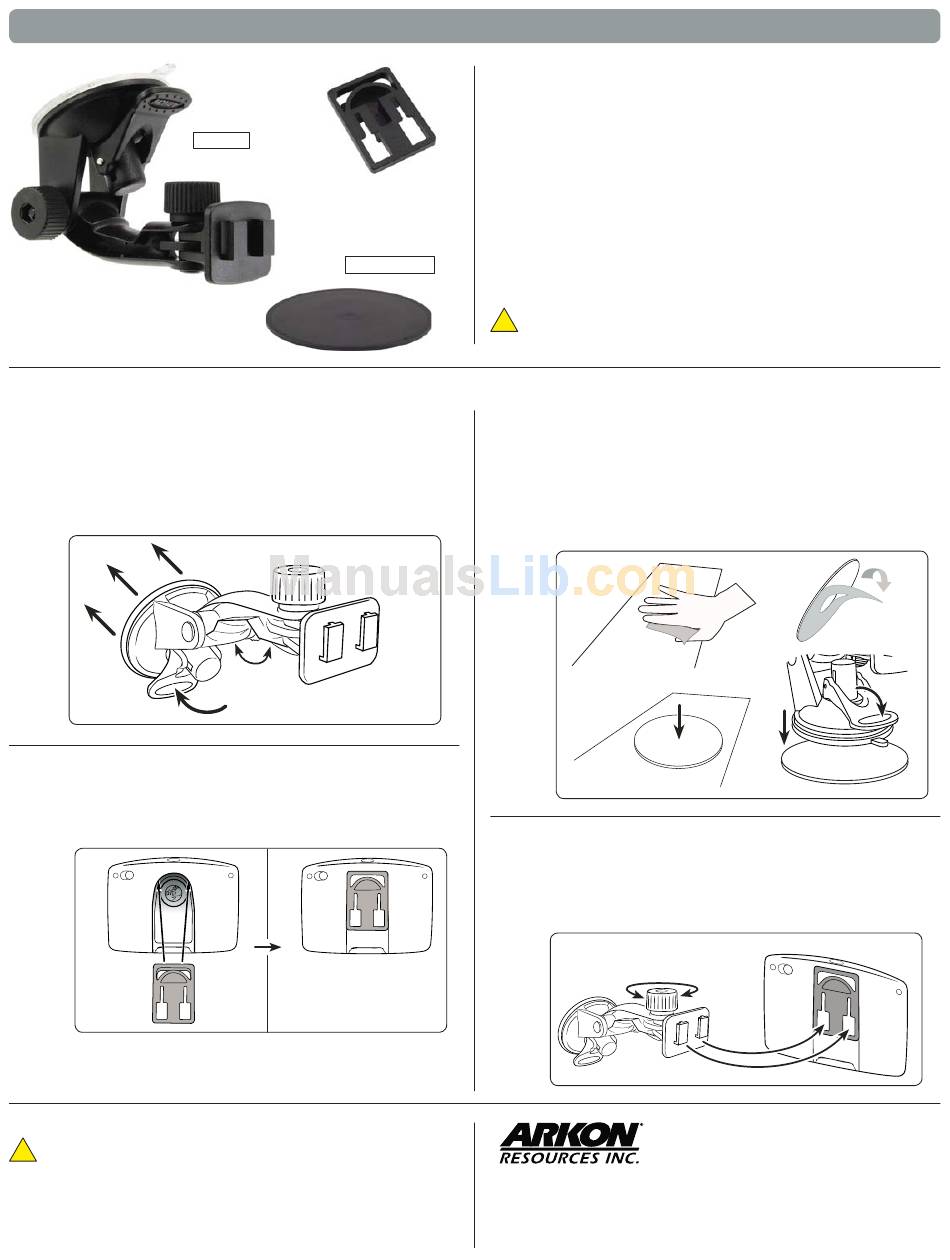

Windshield Mount Installation
Step 1. Find a safe location on the interior of the vehicle's wind-
shield to mount the pedestal. Firmly push the suction base
(A) against the windshield and fl ip the base lever down (B)
to the locked position. See diagram below.
Step 2. Adjust the angle of the pedestal arm by tightening the
angle adjustment knob (C) at the base to the desired angle.
A
B
TomTom GO Adapter Plate Installation
Step 1. Attach the adapter plate by sliding it up into the slot on the
back of the TomTom GO 520, 530, 720, 730, 920, 920T or 930
device as shown. Attach the device as shown below.
Safety Precautions
!
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and / or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
Patented
APTTGO520
Adapter plate for
TomTom GO x20, x30
Check Compatibility
Patent Pending
AP036
Adhesive Disc
C
Package Contents:
(1) CM014-2 - Mini windshield suction or dash mount
(1) APTTGO520 - Adapter plate for TomTom GO™ Series
(1) AP036 - Adhesive circular disc
(1) Alcohol cleaning pad
TomTom Device Compatibility:
• TomTom GO 520 / 530 / 720 / 730 / 920 / 920T / 930
TomTom brand name and GO product name are trademarks, or registered trade-
marks of TomTom International NV. Arkon Resources, Inc. is not affi liated with
TomTom International NV.
Do not place mount in or near an air bag deployment zone
!
or where it will obstruct view of the road.
Dash or Console Mounting (Optional)
Step 1. Find a safe location on the dash or console. Use the inclu-
ded alcohol pad to clean the mounting surface if necessary.
Remove the paper backing on the adhesive disc and fi rmly
press in place.
Place the pedestal's suction base (A) over the center of the
Step 2.
circular disc. While fi rmly holding the pedestal on top of
the disc, fl ip the base lever down (B) to the locked position.
TomTom GO Series Device Attachment
Step 1. Attach the device and adapter plate to the mount by
inserting the dual T-tabs of the mount (D) into the T-slots
of the adapter plate (E). Adjust the angle of the head by
tightening the head adjustment knob (F).
F
The Mobile Mounting Specialists™
Consumer Hotline:
USA
(800) 841-0884
INT'L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
A
E
D
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in Taiwan
© Copyright 2009 Arkon Resources, Inc.
B
