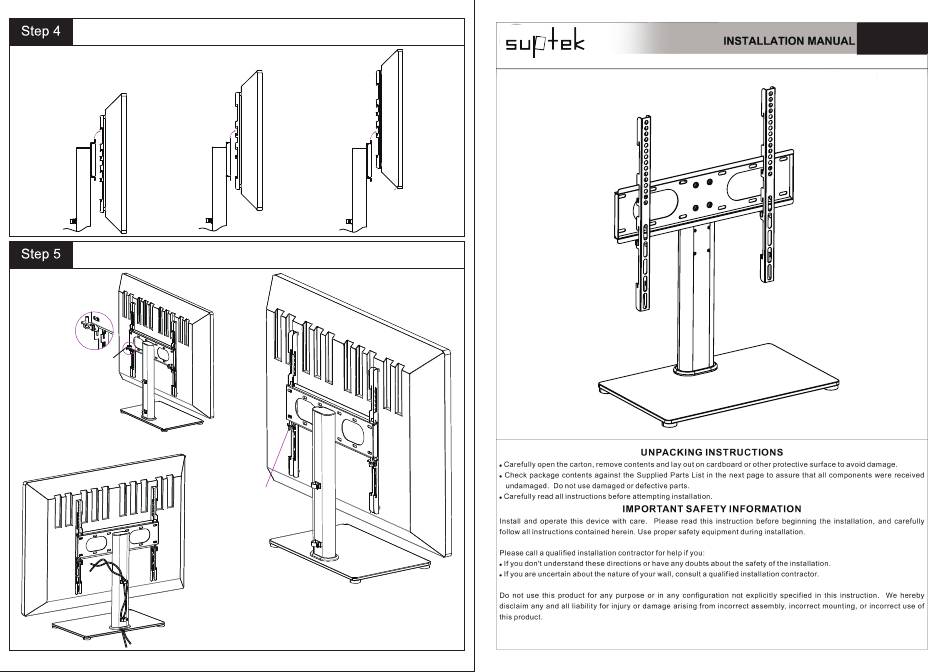

- Page 1 Attaching the vertical pole and TV plate TS001-02 3 level installation after-sales@suptekmount.com Attaching the vertical pole protection buckle&cable management Buckle into the vertical pole Tight the screw Cable management...
- Page 2 Supplied part list 1 Step 2 Connecting the TV Plate to Support Column (4)M4*20-B (4)M6*12-D (4)M6*25-E (4)Rubber Foot-A (4)M5*25-C (4)M8*25-F (4)Φ8*Φ14*11 (4)Φ8*Φ14*6 (5)Φ5*Φ16*1 (4)Φ6*Φ16*1 (3)M8*22-K Spacer-G Spacer-H Washer-I Washer-J Supplied part list 2 (1)Metal Pad-e (1)Plastic Socket-f (1)S4 Allen Key-i (2)Wire Clip-g Parts (2)Monitor Bracket Hook-P...
