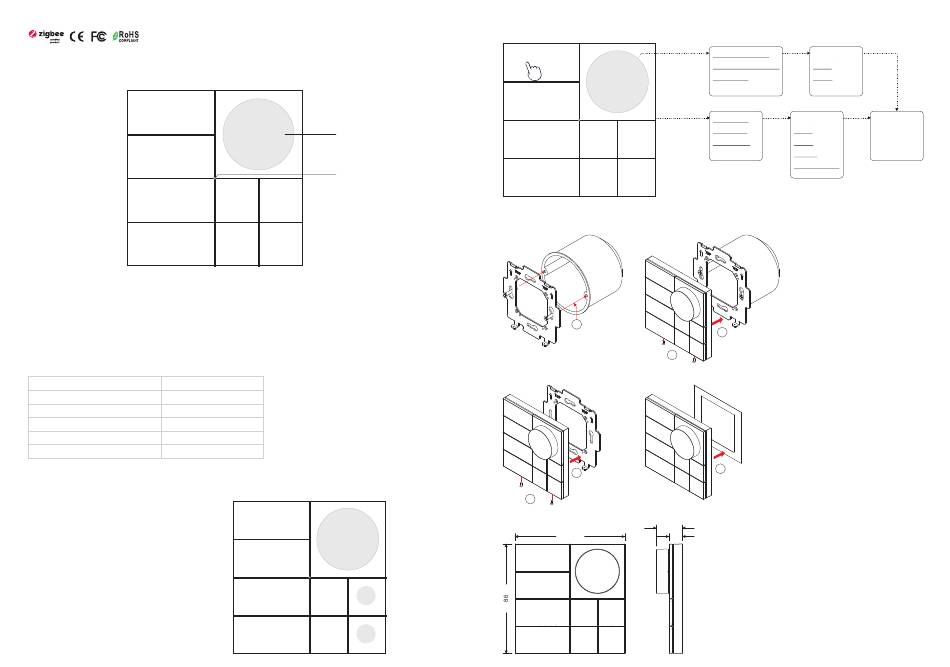

Sunricher SR-ZG9002KR12-PRO Manual

Zigbee Smart Wall Panel Remote
Important: Read All Instructions Prior to Installation
Function introduction
K1 K5
K2 K6
K3 K7
K4 K8
Product Data
• Smart zigbee 3.0 standard remote with 12 push keys and 1 rotary
• ALL keys and rotary function can be customized through Azoula APP
• Battery powered with low power consumption
• Wall-mounted, easy installation with 3M glue sticker or screws
• Devices, zones, and scenes control can be binded with the remote
• Standard 86x86mm size
Protocol ZigBee 3.0
Operation Voltage 6VDC (2xCR2032)
Transmission Frequency 2.4GHz
Transmission Range (free field) 30m
Dimension 86x86x20.5mm
Waterproof Grade IP20
Network pairing/reset
Short press K11 and K12 3 times at the same time,
The red LED indicator will flash.The remote will
enter network pairing mode or reset mode.
If the panel had not been added into a gateway
before, it will be found and added into the network,
or the state will last for 3 minutes.
If the remote had been added into a network before,
it will be removed from the network and into network
pairing mode
again.
Rotary and push button
LED indicator
K9 K11
K10 K12
K1 K5
K2 K6
K3 K7 K9 K11
K4 K8 K10 K12
Keys and rotary function setting
After adding the panel into Azoula, then you can choose and tap each button or rotary to customize the function
K1 K5
K2 K6
K3 K7 K9 K11
K4 K8 K10 K12
Installation
1) Install with screw
1
3
2) Install with 3M glue sticker
1
2
Product Size
20.5
86 10.5
Clockwise rotation Target
Anticlockwise rotation Lights
Short press Zones
Short press Target Action
Long press Lights
Double click Zones
Scenes
Quick Controls
