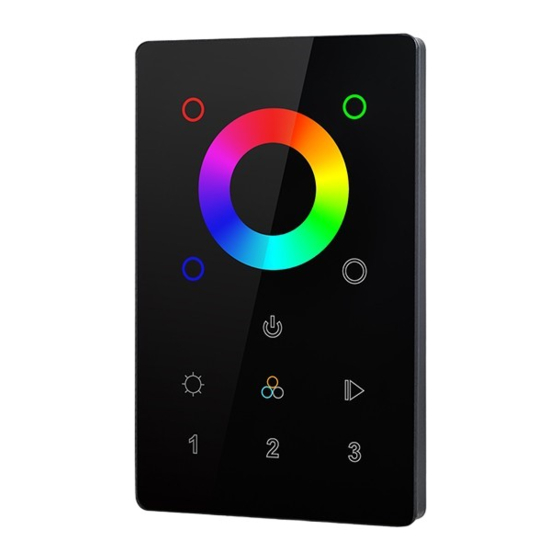

RGBW Wall Mounted Touch ZigBee Remote Controller
Important: Read All Instructions Prior to Installation

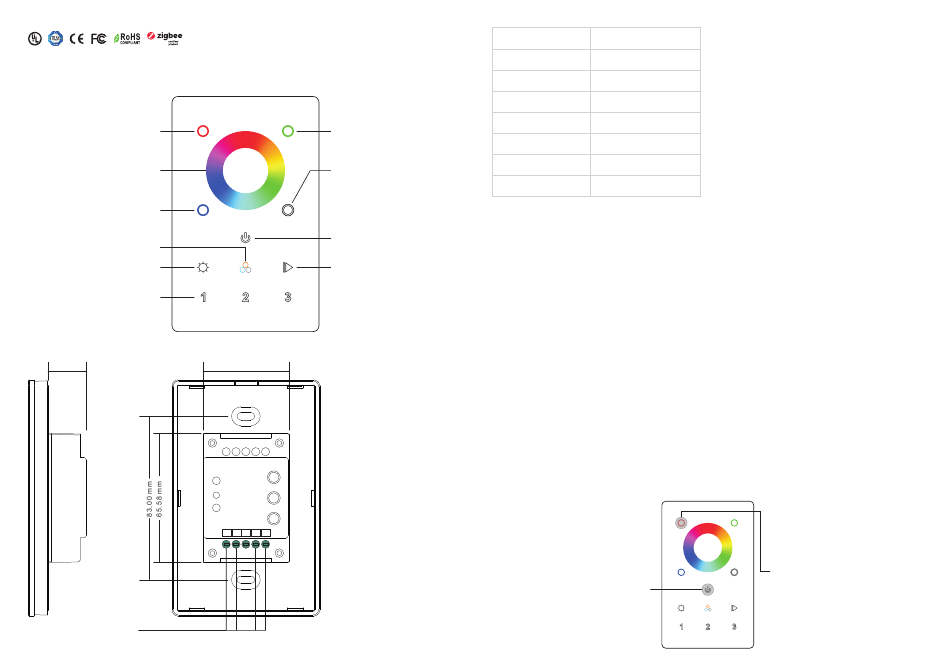

Function introduction

Red channel:Click to turn off/on
Press and hold down to increase/
decrease light intensity
RGB color wheel, slide touch to
select RGB color
Blue channel:Click to turn off/on
Press and hold down to increase/
decrease light intensity
Click to select warm white, cool
white, natural white mixed by RGB
Press and hold down to
increase/decrease light intensity
Group button, click to select
corresponding group, press and
hold down to turn ON/OFF it
19.4 mm
AC Power input
09.ZG2TU.04782
Green channel:Click to turn off/on
Press and hold down to increase/
decrease light intensity
Click to get white color mixed by R,
G, B channels
ON/OFF button, click to turn
ON/OFF all, press and hold down to
search and pair to ZigBee network
or factory reset the controller
Play/Pause button, click to play
or pause built-in running effects,
press and hold down to speed
up/down the effect
Note: This remote supports 3
groups for binding max. 30
lighting devices.
Front side
43.58 mm
ZigBee controller
AC POWER INPUT
L
L
N
N
Back side
Product Data
Operation Frequency
2.4GHz
Transmission Range
30m
(free field)
Power Supply
100-240V AC
Operating temperature
0-40°C
Relative humidity
8% to 80%
Dimming Range
0.1%-100%
Dimensions
120x75x29.1mm
Protection Type
Ip20
ZigBee Clusters Supported by This Remote Are As Follows:
Input clusters:
• Basic
• Power Configuration
• Identify
Output clusters:
• Identify
• Group
• On/off
• Level control
Safety & Warnings
• DO NOT install with power applied to the device.
• DO NOT expose the device to moisture.

Operation

1.This ZigBee RGB remote is a wireless transmitter that communicates with a variety of ZigBee
compatible systems. This transmitter sends wireless radio signals that are used to remotely control a
compatible system.
2.This ZigBee remote supports 3 groups for binding max. 30 lighting devices and enables to control
RGB ZigBee lighting devices.

3. Zigbee Network Pairing through Coordinator or Hub (Added to a Zigbee Network)

Step 1: Remove the remote from
previous zigbee network if it has
already been added to it, otherwise
pairing will fail. Please refer to the part
"Factory Reset Manually".
Step 3: Press and hold down until LED
indicator turns on.
• ZigBee RGBW remote based on ZigBee 3.0
• Full touch glass interface, smooth RGB color and light
intensity control
• Enables to pair ZigBee lighting devices via touchlink
commissioning without coordinator
• Supports find and bind mode to pair with ZigBee
lighting devices
• Supports 3 groups for binding lighting devices
• 2.4 GHz global operation
• Transmission range up to 30m
• Compatible with universal ZigBee Gateway products
• Compatible with universal RGBW ZigBee lighting
devices
• Diagnostics
• Color control
• Ota
Step 2: From your zigbee controller or
hub interface, choose to add device or
accessory and enter Pairing mode as
instructed by the controller.
Step 4: Immediately short press to
search nearby network, indicator
flashes every 1 second, 20 seconds
timeout if there is no network. Indicator
will then blink 5 times quickly for
successful pairing.
