Sunricher SR-ZG9001T3-CCT-US Manual

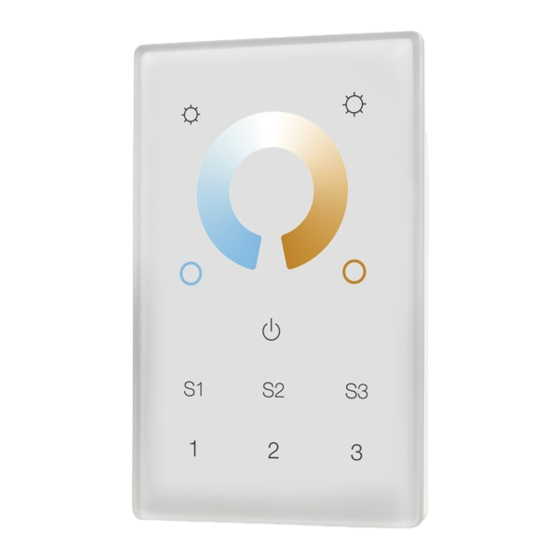

Dual Color Wall Mounted Touch ZigBee Remote Controller
Important: Read All Instructions Prior to Installation

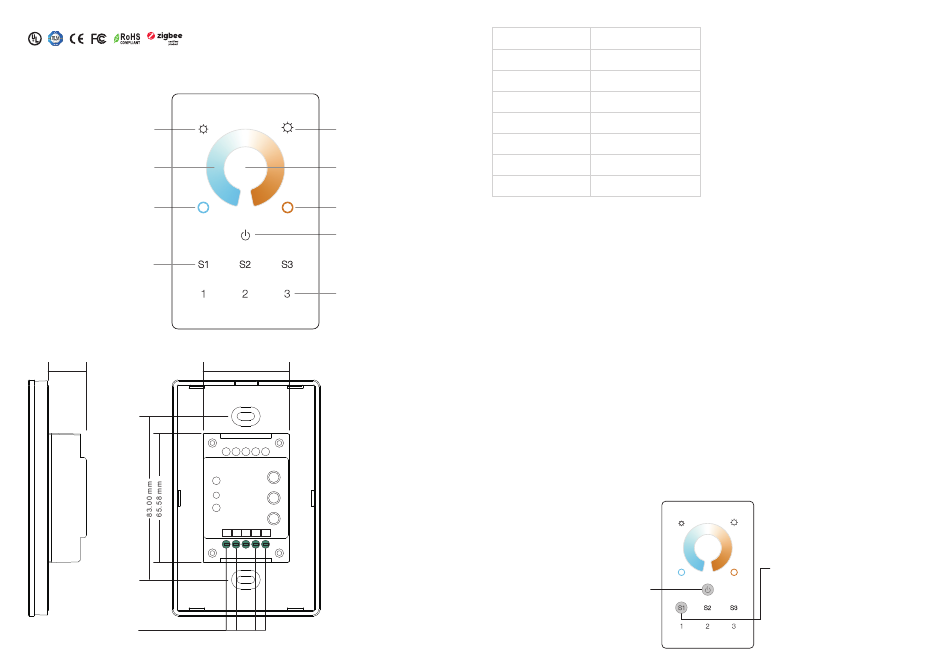

Function introduction
Press and hold down to
decrease light intensity
CCT color wheel, slide touch
to select color temperature
Press and hold down to get
cooler and cooler white
Scene button, press and hold
down to save a scene, click to
recall the saved
Note: This remote supports 3
groups for binding max. 30
lighting devices. Each group
can save and recall 3 scenes.
19.4 mm
AC Power input
09.ZG2TU3.04780
Press and hold down to
increase light intensity
LED indicator
Press and hold down to get
warmer and warmer white
ON/OFF button, click to turn
ON/OFF all, press and hold
down to search and pair to
ZigBee network or factory
reset the controller
Group button, click to select
corresponding group, press
and hold down to turn
ON/OFF it
Front side
43.58 mm
ZigBee controller
AC POWER INPUT
L L N N
Back side
Product Data
Operation Frequency
2.4GHz
Transmission Range
30m
(free field)
Power Supply
100-240V AC
Operating temperature
0-40°C
Relative humidity
8% to 80%
Dimming Range
0.1%-100%
Dimensions 120x75x29.1mm
Protection Type
Ip20
ZigBee Clusters Supported by This Remote Are As Follows:
Input clusters:
• Basic • Power Configuration • Identify
Output clusters:
• Identify • Scenes • Group • On/off
Safety & Warnings
• DO NOT install with power applied to the device.
• DO NOT expose the device to moisture.
Operation
1.This ZigBee CCT remote is a wireless transmitter that communicates with a variety of ZigBee
compatible systems. This transmitter sends wireless radio signals that are used to remotely control a
compatible system.
2.This ZigBee remote supports 3 groups for binding max. 30 lighting devices and enables to control
tunable white ZigBee lighting devices.
3. Zigbee Network Pairing through Coordinator or Hub (Added to a Zigbee Network)
Step 1: Remove the remote from
previous zigbee network if it has
already been added to it, otherwise
pairing will fail. Please refer to the part
"Factory Reset Manually".
Step 3: Press and hold down until LED
indicator turns on.
• ZigBee CCT remote based on ZigBee 3.0
• Full touch glass interface, smooth CCT and light
intensity control
• Enables to pair ZigBee lighting devices via touchlink
commissioning without coordinator
• Supports find and bind mode to pair with ZigBee
lighting devices in the same network
• Supports 3 groups for binding max. 30 lighting devices
• 2.4 GHz global operation
• Transmission range up to 30m
• Compatible with universal ZigBee Gateway products
• Compatible with universal CCT ZigBee lighting devices
• Diagnostics
• Level control • Color control • Ota
Step 2: From your zigbee controller or
hub interface, choose to add device or
accessory and enter Pairing mode as
instructed by the controller.
Step 4: Immediately short press to
search nearby network, indicator
flashes every 1 second, 20 seconds
timeout if there is no network. Indicator
will then blink 5 times quickly for
successful pairing.
