Sunricher SR-ZG2868 Instructions

RGB CCT DIM 3 in 1 Zigbee Remote
Important: Read All Instructions Prior to Installation

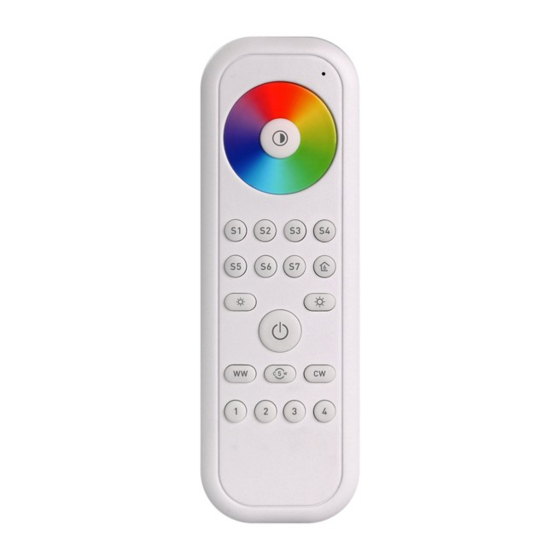

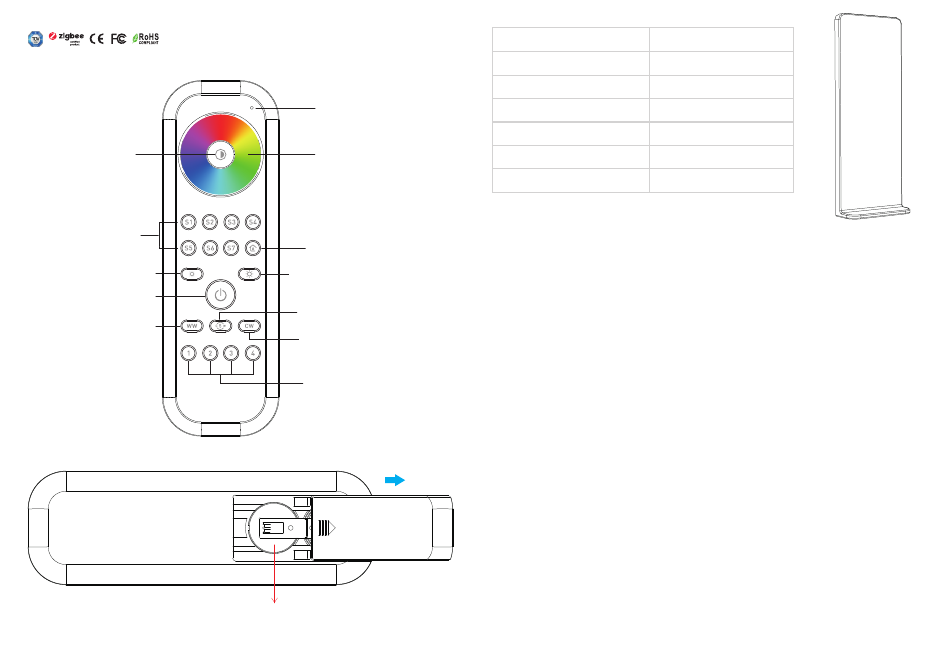

Function introduction

Click to get the maximum
RGB saturation, press and
hold down to increase/
decrease color saturation
S1-S7, press and hold down to
save colors, click to recall the
saved colors
Press and hold down to
decrease light intensity
All ON/OFF button
Click to turn on/off warm white,
press and hold down to adjust
warm white between 0%-100%
Front side
Note:Before the first use, please remove the protective film on the battery.
09.ZG2868.04841
LED indicator
RGB Color wheel
Click to recall 6 preset
scenes one by one
Press and hold down to increase
light intensity
Click to recall 5 preset Kelvin one by one
Click to turn on/off cool white,
press and hold down to adjust
cool white between 0%-100%
Group numbers: Click to choose
the group, press and hold down to
turn on/off corresponding group, with
indicator under each group button,
when the groups are chosen, indicators
turn on
6V(2*CR2032 battery)
Bottom side
Product Data
Protocol
Operation Voltage
Transmission Frequency
Transmission Range (free field)
Dimming Range
Dimension
Protection Grade
• ZigBee RGB+CCT+DIM remote based on ZigBee 3.0
• High sensitive & high stable touch color wheel, fast & precise color control
• Battery powered remote with low power consumption
• Enables to pair ZigBee lighting devices through touchlink commissioning
• Supports find and bind mode to pair with ZigBee lighting devices
• Supports 4 groups for binding max. 30 lighting devices
• With 6 preset scenes, 5 preset Kelvin, enables to save and recall 7 scenes
• Enables to adjust RGB color saturation
• 2.4 GHz global operation
• Transmission range up to 30m
• Compatible with universal ZigBee Gateway products
• Enables to bind and control universal DIM, CCT, RGB, RGBW and RGB+CCT zigbee lighting devices

ZigBee Clusters Supported by This Remote Are As Follows:

Input clusters:
• Power Configuration • Identify
• Basic
Output clusters:
• Identify • Group
• Scene • On/off
Safety & Warnings
• This device contains button lithium batteries that shall be stored and disposed properly.
• DO NOT expose the device to moisture.

Operation

1.This ZigBee remote is a wireless transmitter that communicates with a variety of ZigBee compatible
systems. This transmitter sends wireless radio signals that are used to remotely control a compatible
system.
2.This ZigBee remote supports 4 groups for binding max. 30 lighting devices and enables to control
DIM, CCT, RGB, RGBW and RGB+CCT zigbee lighting devices .
ZigBee 3.0
6V(2*CR2032 battery)
2.4GHz
30m
0.1%-100%
137x45x13mm
IP20
Magnetic Bracket
• Diagnostics
• Level control • Ota • Color control
