Sunricher SR-ZG9001T-DIM Manual

Single Color Wall Mounted Touch ZigBee Remote Controller
Important: Read All Instructions Prior to Installation

Function introduction

25% brightness
Brightness wheel, slide
touch to select brightness
75% brightness
Scene button, press and
hold down to save a scene,
click to recall the saved
19.4 mm
AC Power input
09.ZG2TU3.04789
50% brightness
100% brightness
ON/OFF button, click to turn
ON/OFF all, press and hold
down to search and pair to
ZigBee network or factory
reset the controller
Note: This remote supports
1 group for binding max. 30
lighting devices. Each
group can save and recall 6
scenes.

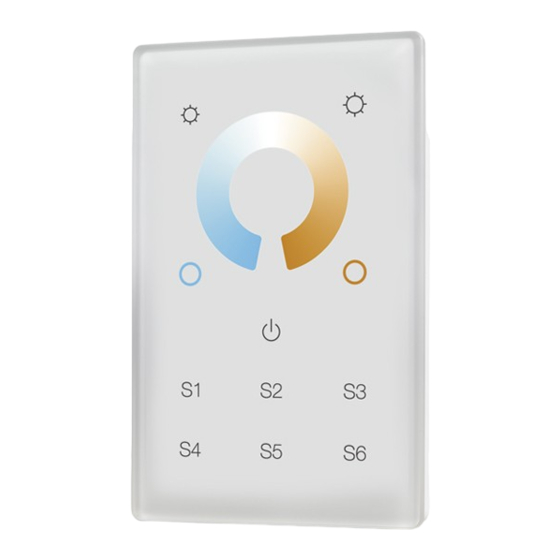

Front side
43.58 mm
ZigBee controller
AC POWER INPUT
L L N N
Back side

Product Data

Operation Frequency
2.4GHz
Transmission Range
30m
(free field)
Power Supply
100-240V AC
Operating temperature
0-40°C
Relative humidity
8% to 80%
Dimming Range
0.1%-100%
Dimensions 120x75x29.1mm
Protection Type
Ip20

ZigBee Clusters Supported by This Remote Are As Follows:

Input clusters:
• Basic • Power Configuration • Identify
Output clusters:
• Identify • Scenes • On/off • Level control
Safety & Warnings
• DO NOT install with power applied to the device.
• DO NOT expose the device to moisture.

Operation

1.This ZigBee Dim remote is a wireless transmitter that communicates with a variety of ZigBee
compatible systems. This transmitter sends wireless radio signals that are used to remotely control a
compatible system.
2.This ZigBee remote supports 1 group for binding max. 30 lighting devices and enables to control
single color ZigBee lighting devices.

3. Zigbee Network Pairing through Coordinator or Hub (Added to a Zigbee Network)

Step 1: Remove the remote from
previous zigbee network if it has
already been added to it, otherwise
pairing will fail. Please refer to the part
"Factory Reset Manually".
Step 3: Press and hold down until LED
indicator turns on.
• ZigBee wireless dimmer switch based on ZigBee 3.0
• Full touch glass interface, smooth light intensity control
• Enables to pair ZigBee lighting devices via touchlink
commissioning without coordinator
• Supports find and bind mode to pair with ZigBee lighting
devices
• Supports 1 group for binding max. 30 lighting devices
• 2.4 GHz global operation
• Transmission range up to 30m
• Compatible with universal ZigBee Gateway products
• Compatible with universal ZigBee dimmable lighting
devices
• Diagnostics
• Ota
Step 2: From your zigbee controller or
hub interface, choose to add device or
accessory and enter Pairing mode as
instructed by the controller.
Step 4: Immediately short press to
search nearby network, indicator
flashes every 1 second, 20 seconds
timeout if there is no network. Indicator
will then blink 5 times quickly for
successful pairing.
