Sunricher SR-ZG2836D5-Pro Instructions

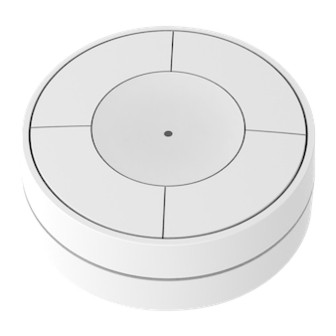

Zigbee Smart Remote
Important: Read All Instructions Prior to Installation

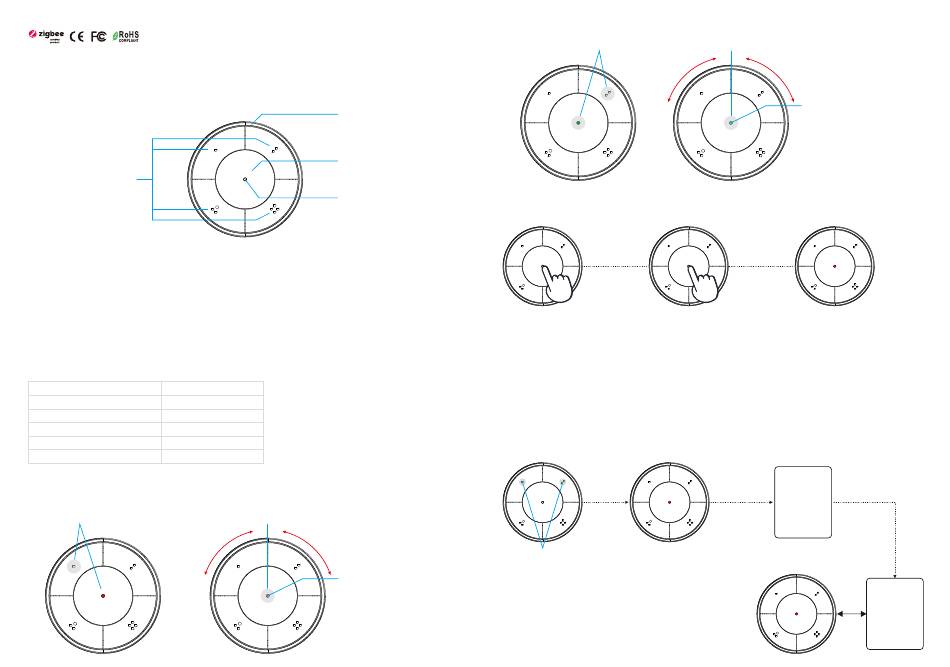

Function introduction
4 scenes,
Press and hold to save scene,
click to recall the saved scene
Product Data
• Standard ZigBee 3.0 lighting and curtain controller
• Enables to control single color/CCT/RGB/RGBW/RGB+CCT lighting device
• Enables to pair with ZigBee device through Touchlink
• Enables to Touchlink delete device
• Enables to Touchlink reset device
• Full support for various curtain types: roller blinds, shutter blinds, drapes, etc.
• Supports 1 group for binding max. 30 lighting devices
• Compatible with universal ZigBee Gateway products
• Battery powered remote with low power consumption
Protocol ZigBee 3.0
Operation Voltage 3VDC (CR2450 battery)
Transmission Frequency 2.4GHz
Transmission Range (free field) 30m
Dimension Φ 58x20mm
Waterproof Grade IP20
Switch to lighting control mode
Press this two keys once at the same time,
and the LED indicator in the middle flashes red
Lighting control mode
Rotary to dim/change color
temperature/RGB color
Curtain control mode
Rotary to open/close curtain
Lighting control mode
Click to turn On/off
LED Indicator
Under lighting control mode, click the center button 2 times
to switch the rotary function between DIM/CCT/RGB
The indicator flash different times
to indicate different function:
Flash once red means dim mode,
Flash twice red means CCT mode,
Flash three times red means RGB
mode
Switch to lighting control mode
Press this two keys once at the same time,
and the LED indicator in the middle flashes
green
Network pairing/reset
1. Quickly short press the 2. Immediately long press the
center button 5 times center button for 3 seconds.
4.If the remote had not been added into an Zigbee gateway before, it will be found and added into the network,
or the state will last for 3 minutes.
5. If the remote had been added into a network before, it will be removed from the network and into network pairing
mode again.
Note: If the remote had not been added into a network, each time the remote was power on, it will enter
network paring mode automatically, and the state will last for 180s, click any button to exit.
Touchlink with Zigbee lighting/curtain device
1.Press these two keys three 2. The LED indicator flash.
times at the same time Enter Touchlink mode.
4. Bring the two devices together,
they will be paired successfully,
LED indicator flash
Under curtain control mode, click the center button 2 times
to switch the rotary function between length/angle adjustment
The indicator flash different times
to indicate different function:
Flash once green means length mode,
Flash twice green means angle mode,
3. The LED indicator flash. The remote
into network pairing mode or reset mode.
ZigBee
Lighting/
Curtain
Device
3. Enable the Zigbee lighting/curtain
device enter Touchlink mode
< 10cm
ZigBee
Lighting/
Curtain
Device
