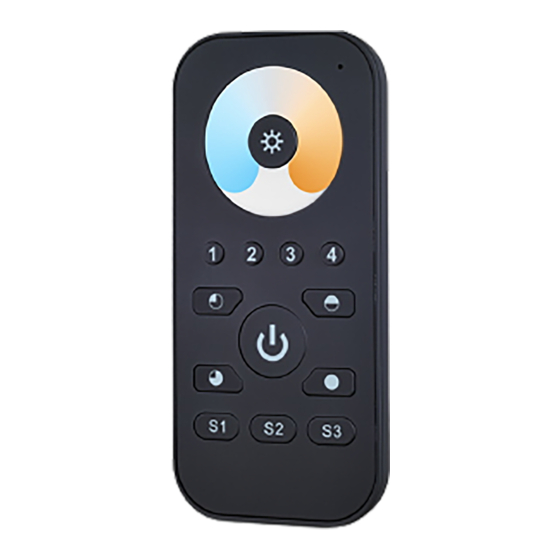

ZigBee Dim Remote
Important: Read All Instructions Prior to Installation

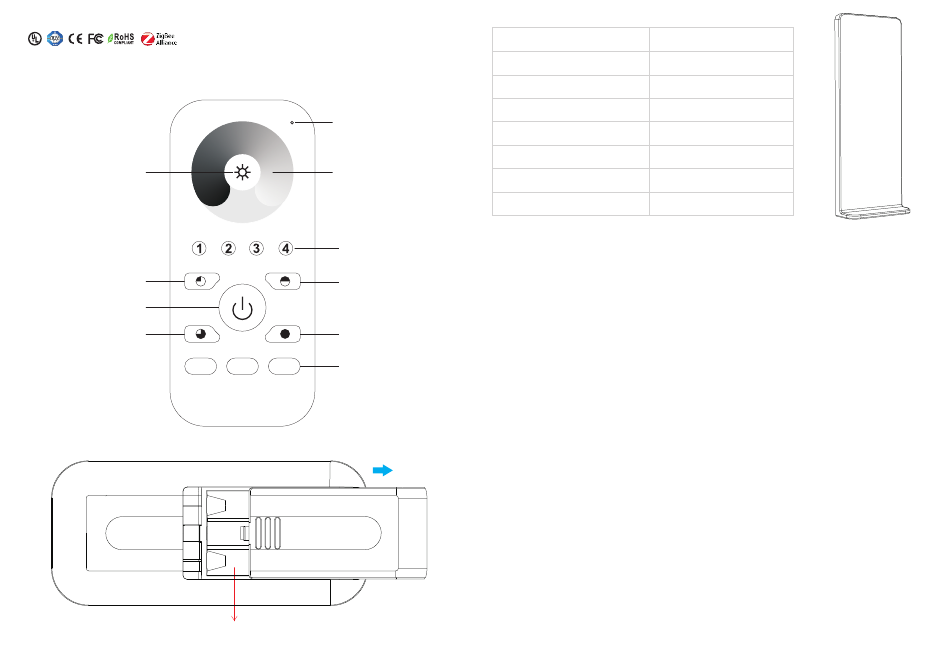

Function introduction

Press and hold down to
increase/ decrease light intensity
25% brightness
Click to turn ON/OFF all groups
75% brightness
S1
4.5V(3xAAA battery)
09.ZG2819S.04841
Indicator: indicate the
state of remote control
Touch color wheel, touch to select
brightness
Group numbers: click to choose
the group/groups, press and hold
down to turn on/off corresponding
group
50% brightness
100% brightness
Press and hold down to save colors;
S2
S3
Click to recall the saved colors
Front side
Bottom side
Product Data
Protocol
Operation Voltage
Transmission Frequency
Transmission Range (free field)
Protection Type
Dimming Range
Dimension
Protection Grade
• ZigBee Dim remote based on ZigBee 3.0
• Enables to control single color lighting devices
• High sensitive & high stable touch color wheel, fast & precise color control
• Battery powered remote with low power consumption
• Enables to pair ZigBee lighting devices through touchlink commissioning
• Supports find and bind mode to pair with ZigBee lighting devices
• Supports 4 groups for binding max. 30 lighting devices
• 2.4 GHz global operation
• Transmission range up to 30m
• Compatible with universal ZigBee Gateway products
• Compatible with universal single color ZigBee lighting devices
Safety & Warnings
• This device contains AAA batteries that shall be stored and disposed properly.
• DO NOT expose the device to moisture.

Operation

1.This ZigBee Dim remote is a wireless transmitter that communicates with a variety of ZigBee
compatible systems. This transmitter sends wireless radio signals that are used to remotely control a
compatible system.
2.This ZigBee remote supports 4 groups for binding max. 30 lighting devices and enables to control
single color ZigBee lighting devices.

3.ZigBee Network Pairing Through ZigBee Coordinator (Added to a ZigBee Network)

1)Before pairing, please make sure that the remote does not belong to any ZigBee network. If yes, please first
remove it from the network, otherwise network pairing will fail.
2)From your ZigBee Controller or hub interface, choose to add device and enter Pairing mode (Add device) as
ZigBee 3.0
4.5V(3xAAA battery)
2.4GHz
30m
IP20
0.1%-100%
120x55x17mm
IP20
Magnetic Bracket
