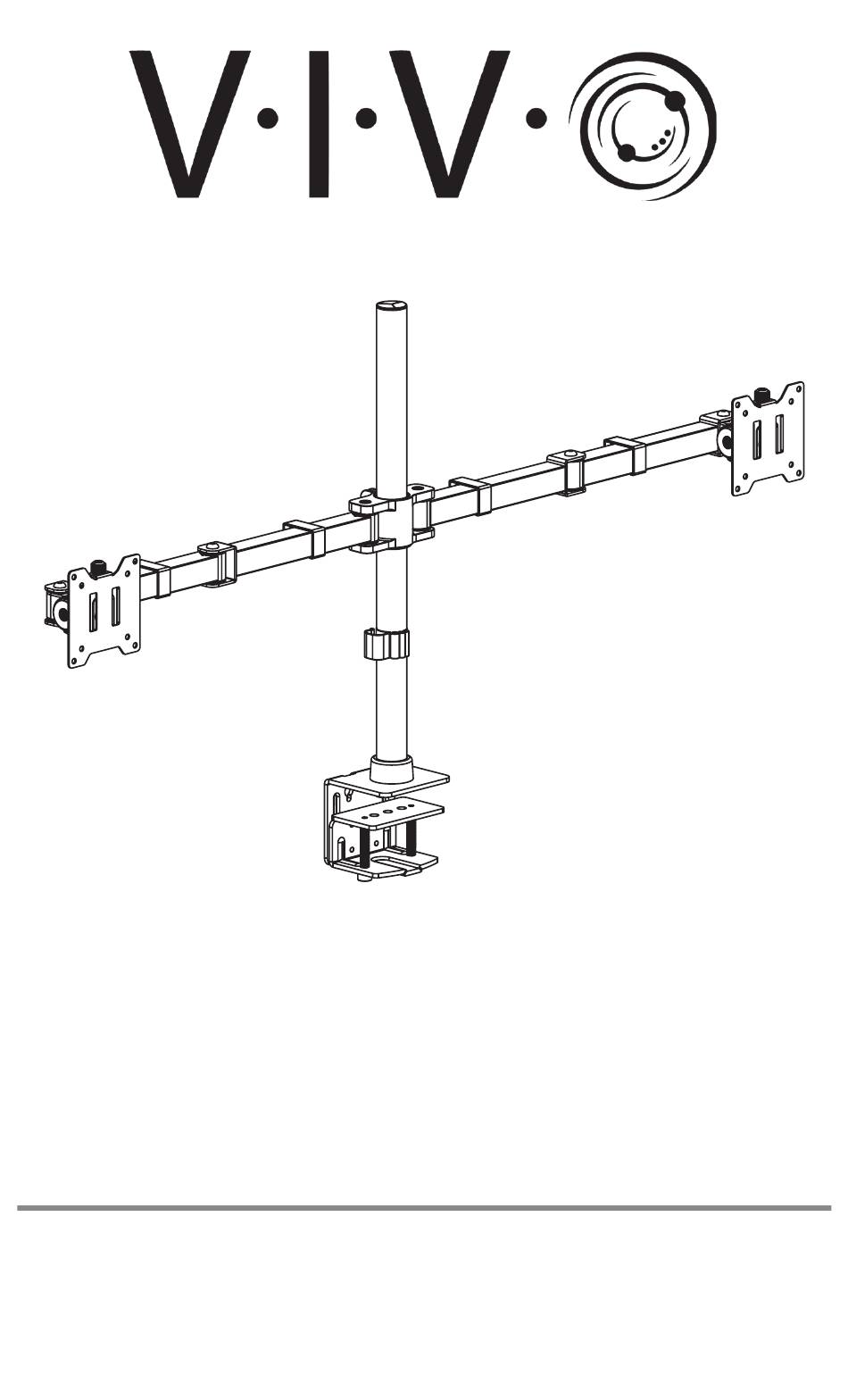

- Page 1 Dual Ultrawide Monitor Desk Mount STAND-V038 Series Assembly Manual Individual Product SKUs STAND-V038 STAND-V038W...
- Page 2 Better Products for a Better Workspace Experience We are dedicated to creating high-end ergonomic solutions for the office with top of the industry support. Explore Endless Workspace Solutions www.vivo-us.com...
- Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
-
Page 4: Package Contents
Package Contents A (x1) B (x1) Pole Swivel Arm C(x1) D (x1) E (x1) Base Clamp Bracket Clamp Plate F (x2) G (x1) H (x1) VESA Plate Grommet Base Cable Pole Clip I (x4) J (x1) K (x2) Arm Cable Clip Base Cover VESA Cap L (x4) -
Page 5: Included Hardware & Tools
Included Hardware & Tools S-A (x2) S-B (x2) S-C (x4) M-A (x8) Clamp Screw M3x8mm M6x10mm M4x12mm Screw Screw Screw M-B (x8) M-C (x8) M-D (x8) T-A (x1) M4x10mm M4x20mm M5 Washer 3mm Allen Screw Screw Wrench T-B (x1) T-C (x1) 4mm Allen 6mm Allen Wrench... -
Page 6: Assembly Steps
Assembly Steps - Option 1 - Clamp Installation For Grommet Installation, go to pg. 8 STEP 1 Remove the adhesive backing from Pads (L) and stick them to the four corners on the underside of Base (C), as shown. Check Your Desktop’s Thickness Check the thickness of your desktop and follow the instructions below based on your measurement: Thickness: 0.4-1.9”(10-50mm) - Page 7 STEP 1: Clamp Installation - Cont’d Thread Clamp Screws (S-A) up through Clamp Bracket (D) using 6mm Allen Wrench (T-C). Place Clamp Plate (E) on top of the Clamp Screws (S-A). Position the entire Clamp Assembly onto the edge of your desktop and tighten Clamp Screws (S-A) using 6mm Allen Wrench (T-C) to secure it in place.
- Page 8 - Option 2 - Grommet Installation Desktop Thickness: 0.4”-1.89” (10-48mm) STEP 1 Remove the adhesive backing from Pads (L) and apply them evenly to the underside of Grommet Base (G), as shown. Insert one Clamp Screw (S-A) through the center of Clamp Plate (E). Place Grommet Base (G) over the grommet hole.
- Page 9 STEP 2 Thread the Pole (A) onto the Base (C) and secure by tightening the two protruding Set Screws using 3mm Allen Wrench (T-A). Screw Ensure the protruding set screws are on the bottom of the pole. Attach the Cable Pole Clip (H) to the Slide the Base Cover (J) down Pole (A).
- Page 10 STEP 3 Unfold Swivel Arms (B). Loosen the Back Screw on the Pole (A) using 6mm Allen Wrench (T-C). Slide Swivel Arm (B) over the Pole. Tighten the Back Screw using 6mm Allen Wrench (T-C) to secure the Arm to the Pole. Back Back Screw...
- Page 11 STEP 4 Attach Arm Cable Clips (I) to the Swivel Arm (B).
- Page 12 STEP 5 Attach VESA Plate (F) to the back of your monitor using Appropriate Screws (M-A, M-B, M-C) and Washers (M-D). Ensure the Lip on VESA Plate is on the top. Too Long Too Short...
- Page 13 STEP 6 Adjusting the Tilt Joint Adjustment Adjustment Screw Screw Loosen Tilt Joint Use 6mm Allen Wrench (T-C) to loosen the Tilt Joint Adjustment Screw, located on the side of VESA Bracket (B1). Set Angle Firmly grip the VESA Bracket and adjust to your desired viewing angle, and hold in place.
- Page 14 STEP 7 Grab a friend and carefully slide your monitor’s VESA Plate (F) onto the Swivel Arms (B). Secure using VESA Cap (K) and M3x8mm Screw (S-B). 2 Person Mounting Recommended...
- Page 15 Fine Tune Tilt Angle If the monitor is angled further than intended... Heavy Weighted/ Ultrawide Monitors [ 20lbs - 44lbs ] Firmly Hold Monitor Firmly grasp and hold the monitor in place. Do NOT release monitor until you have completed steps below. Loosen Tilt Joint: With a hand still on the monitor, use 6mm Allen Wrench (T-C) to loosen the...
- Page 16 Adjustments To level the monitors on Swivel Arm (B), insert the 6mm Allen Wrench (T-C) into the VESA Caps (K) and turn to adjust until the monitors are level. Then, adjust the monitor orientation as desired. ±180˚ +45˚ ±180˚ -45˚ +45˚...
- Page 17 Adjustments - Cont’ d Sway Swivel...
-
Page 18: Tool Storage
Storage and Management Tool Storage Insert Allen Wrenches (T-A, T-B, T-C) into Cable Pole Clip (H) for storage. Cable Management Use Cable Pole Clip (H) and Arm Cable Clips (I) to manage cables. - Page 19 Love Your New Setup? Tag Us on Social! @ VIVO-us @ vivo_us @VIVOus VIVO...
- Page 20 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
