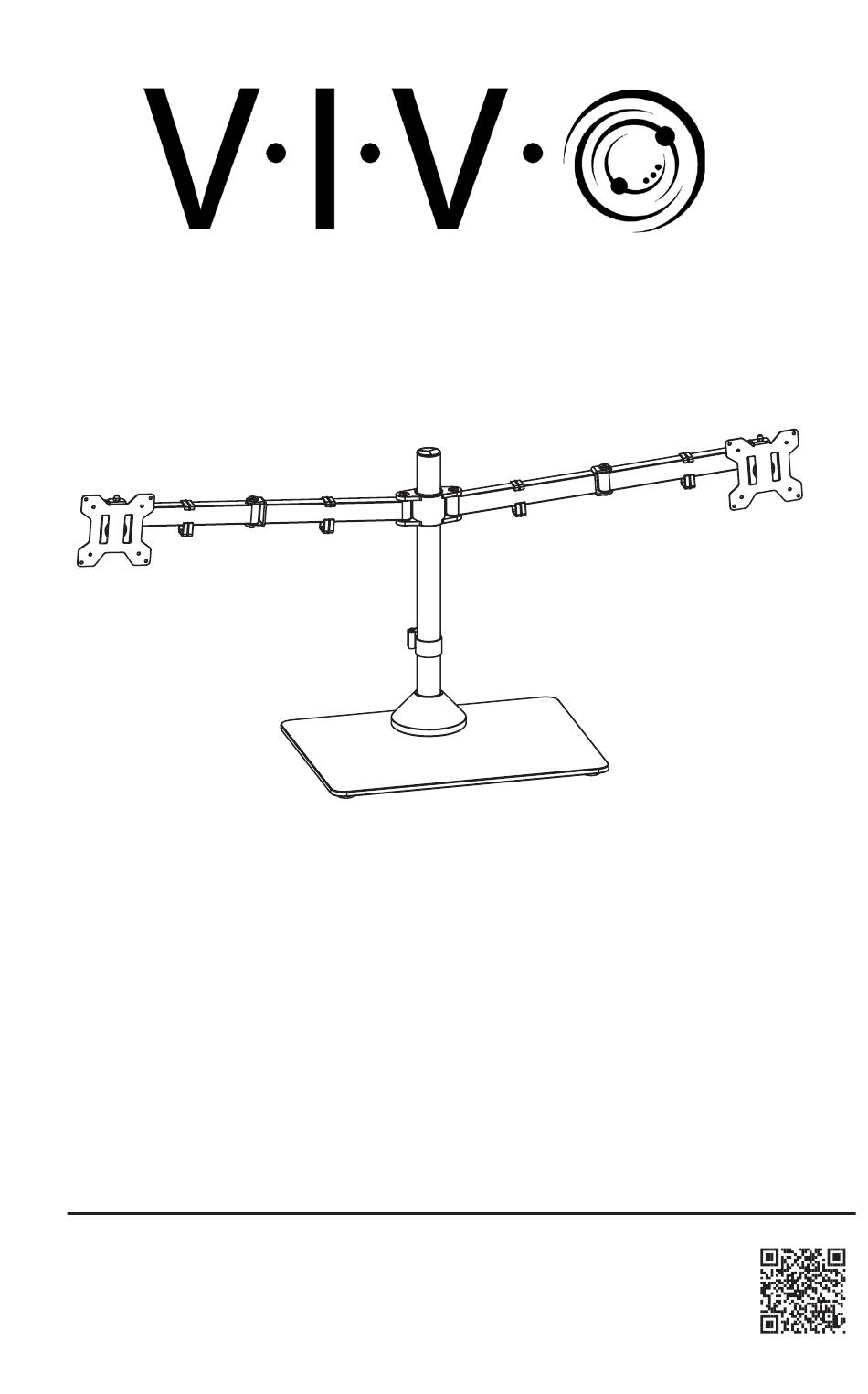

- Page 1 Dual Ultrawide Monitor Desk Stand SKU: STAND-V038FG Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/stand-v038fg...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Package Contents
Package Contents A (x1) B (x1) C (x1) Pole Base D (x2) E (x1) F (x1) G (x1) VESA Plate Pole Cap Cover Upper Mounting Plate H (x1) I (x4) J (x4) K (x1) Lower Mounting Foot Arm Cable Pole Cable Plate Clips Clip... -
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Remove the protective film off of Feet (I) and apply them to the corners on underside of Base (B). STEP 2 Press Pole Cap (E) into the top of Pole (A). Attach Upper Mounting Plate (G) to the bottom of Pole using M6x16mm Flat Head Screws (S-A), tightening with 4mm Allen Wrench (T-B). - Page 5 STEP 3 Press the Raised Bushings on Lower Mounting Plate (H) into the holes on Upper Mounting Plate (G). Attach the pole assembly to the top of Base (B) using M6x10mm Low-Profile Screws (S-C) and M6 Washers (S-D). Tighten using 4mm Allen Wrench (T-B). S-C (x4) Raised Bushings...
- Page 6 STEP 4 Slide Arm (C) onto Pole (A) and secure at desired height using 6mm Allen Wrench (T-C). Attach Arm Cable Clips (J) onto each arm segment on Arm (C).
- Page 7 STEP 5 Install VESA Plates (D) onto your monitors using M4x12mm Thumbscrews (M-A) or M4x30mm Screws (M-B) and Spacers (M-C) if needed. Lightly tighten with a Phillips screwdriver. M-A (x4) - OR - Installation Tip: The “V” on VESA Plate should M-B (x4) be pointing down towards bottom edge of monitor.
- Page 8 STEP 6 Slide your monitors with VESA Plate (D) onto Arm (C). Secure the VESA Plates (D) to the Arm using M6 Cap Nuts (S-B). S-B (x2) STEP 7 Route cables through Arm and Pole Cable Clips (J,K).
- Page 9 ADJUSTMENTS Adjust the tilt joint resistance using 6mm Allen Wrench (T-C). Remove the M6 Cap Nuts (S-B) and adjust the VESA height adjustment screws using 3mm Allen Wrench (T-A). Reinstall the M6 Cap Nuts. Height Adjustment Screw...
- Page 10 WARNING Do not extend the arms past the base shown below.
- Page 11 [ THIS PAGE HAS INTENTIONALLY BEEN LEFT BLANK ]...
-
Page 12: Last Updated
LAST UPDATED: 12/04/23 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
