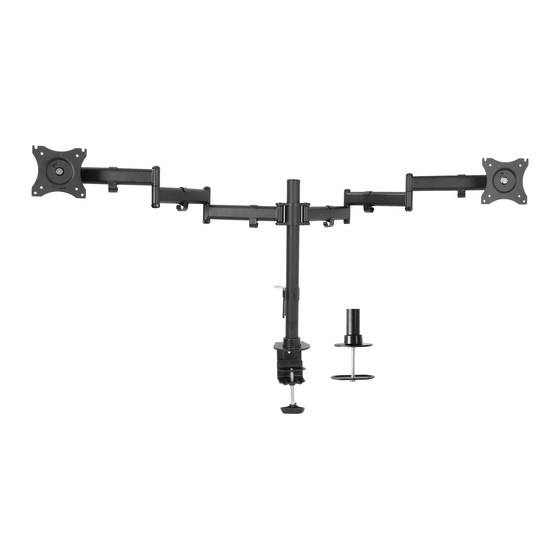

Dual Monitor Desk Mount
Instruction Manual
SKU: STAND-V032M
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v032m
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V032M
Summary of Contents for Vivo STAND-V032M
- Page 1 Dual Monitor Desk Mount Instruction Manual SKU: STAND-V032M Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v032m GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Tools Needed
TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 17.6lbs Failure to do so may result in serious injury. (8 kg) PER ARM Phillips Screwdriver ASSEMBLY STEPS STEP 1 OPTION A: Clamp Installation Screw pole (B) into clamp base (C), and tighten the two set screws with Allen key (J). - Page 4 STEP 2 Slide arms (A) onto pole, and tighten with Allen key (K). STEP 3 Attach cable clips (E) to arms.
- Page 5 STEP 4 Insert (M-A or M-B) screws and (M-C) washers into top two holes of monitor, leaving 3mm of thread visible. Hang monitor over open slots in VESA plate, and secure with two more screws and washers in bottom holes. 3m m M- C M- A...
- Page 6 STEP 6 Store Allen keys (K,L) in cable clip for quick access.
- Page 7 STEP 7 Turn bolts behind VESA plates using Allen key (K) to adjust height and align monitors. Manage cables. 360° 360°...
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
