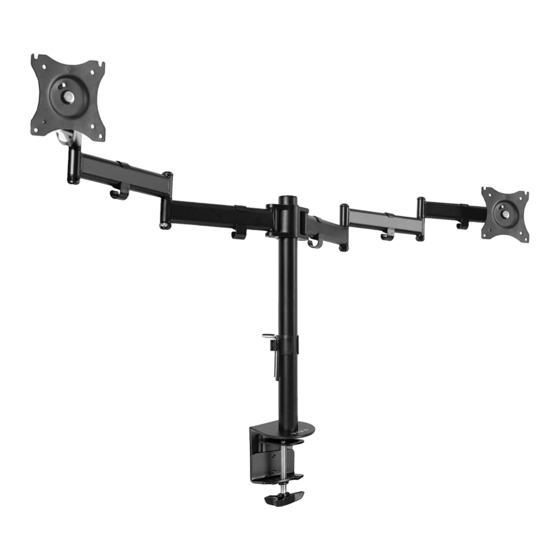

Dual Monitor Desk Mount
Instruction Manual
SKU: STAND-V038M
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v038m
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo STAND-V038M
Summary of Contents for Vivo STAND-V038M
- Page 1 Dual Monitor Desk Mount Instruction Manual SKU: STAND-V038M Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v038m GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 ASSEMBLY STEPS STEP 1 Insert pole cap (C) to top of pole (B). STEP 2 OPTION A: Clamp Installation Stick soft pads (N) to the underside of the clamp (D). Attach pole (B) to clamp (D) using M6x16 bolts (M). Tighten using the 4mm Allen wrench (Q).
- Page 4 STEP 3 Place bushings (I) into holes at the ends of the arms (A). Install VESA brackets (E) onto the arms with M8x60 bolts (J) and D8 washers (K). Secure with D8 washers (J) and M8 nuts (L), and tighten with the 5mm Allen wrench (R) and wrench (P).
- Page 5 STEP 5 Attach arm cable clips (G) to the arms (A) as shown. STEP 6 Attach two bolts (M-A or M-B) and washers (M-C) to top mounting holes in the monitors, making sure to leave 3mm of threads exposed. Align bolts (M-A or M-B) in monitors over slots in the VESA plates.
- Page 6 STEP 6 (Continued) Secure using two more bolts (M-A or M-B) and washers (M-C) in the bottom two holes of each monitor. Tighten all four bolts using a Phillips screwdriver. STEP 7 Adjust tilt support using the 6mm Allen wrench (S).
- Page 7 STEP 8 Store Allen wrenches in the cable management clip (H) for future use. STEP 9 Adjust height of side monitors by turning the bolt on top of each bracket with the 5mm Allen wrench (R) as shown.
- Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
