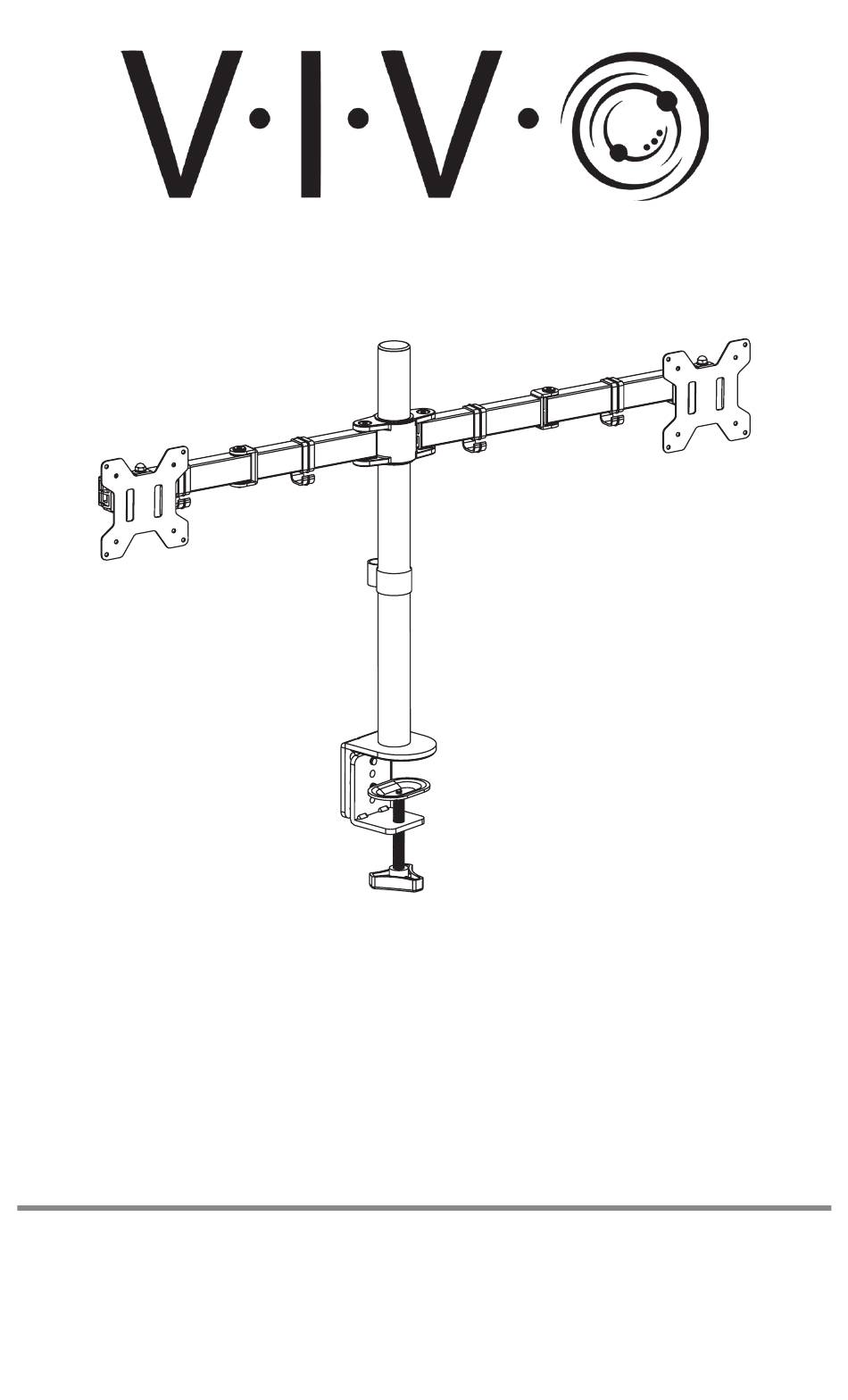

- Page 1 Dual Monitor Desk Mount STAND-V032 Series Assembly Manual Individual Product SKUs STAND-V032 STAND-V032W...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
- Page 3 Package Contents A (x1) B (x1) C (x1) D (x2) Pole Clamp Swivel Arm VESA Plate E (x1) F (x1) G (x1) H (x1) Grommet Soft Pad Pole Cap Pole Cable Base Plate Clip I (x4) Arm Cable Clip Included Hardware & Tools S-A (x3) S-B (x2) M-A (x8)
-
Page 4: Assembly Steps
Assembly Steps STEP 1 Loosen knob on Clamp (B). STEP 2 Option 1: Clamp Installation Desktop Thickness: 0.40” - 3.35” (10mm - 85mm) Secure assembly to desktop by Attach Clamp (B) to Pole (A) using tightening knob on Clamp (B). M6x16mm Screws (S-A) and a 3mm Allen Wrench (T-A). - Page 5 Option 2: Grommet Installation Desktop Thickness: 0.40” - 3.0” (10mm - 75mm) Using a Phillips screwdriver, remove Thread Clamp Plate (B2) onto Clamp the screw from Clamp (B) and Bolt (B1). separate Clamp Bolt (B1) and Clamp Plate (B2) from the clamp assembly. Attach Grommet Base (E) to Pole (A) Remove adhesive backing from Soft using M6x16mm Screws (S-A) and...
- Page 6 Option 2: Grommet Installation - Cont’d Thread Clamp Bolt (B1) with Clamp Plate (B2) through the mounting hole and into Pole (A). No Grommet Hole? If you do not have an existing hole for installation, drill a hole through your desktop in your desired mounting location using a 3/8”...
- Page 7 STEP 3 Slide Pole Cable Clip (H) and Swivel Arm (C) onto Pole (A). Secure Swivel Arm in place using 5mm Allen Wrench (T-B). Attach Pole Cap (G) to Pole. Attach Arm Cable Clips (I) to Swivel Arm (C).
- Page 8 STEP 4 Option 1: Flat VESA Pattern Attach VESA Plate (D) to monitor using M4x12mm Thumbscrews (M-A) and a Phillips screwdriver. Do not over-tighten the screws. Ensure the Tab is on top. Option 2: Recessed VESA Pattern If your monitor’s VESA pattern is recessed, use Spacers (M-C) between the VESA Plate (D) and the monitor and use M4x30mm Screws (M-B) instead.
- Page 9 STEP 5 Slide monitors with VESA Plates (D) onto Swivel Arm (C). Secure VESA Plates in place using M6 Security Nuts (S-B). STEP 6 Manage cables using Arm Cable Clips (I) and Pole Cable Clip (H).
- Page 10 Adjustments Tilt Adjustments To adjust the vertical tilt, loosen the Adjustment Screw using 5mm Allen Wrench (T-B). Position the monitor as desired and re-tighten. Adjustment Adjustment Screw Screw 180° Swivel Lightly pull monitors left or right by hand to adjust swivel. 360°...
- Page 11 Leveling Monitors To level monitors, remove M6 Tighten or loosen adjustment screws Security Nuts (S-B). using 3mm Allen Wrench (T-A). Replace M6 Security Nut.
- Page 12 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
