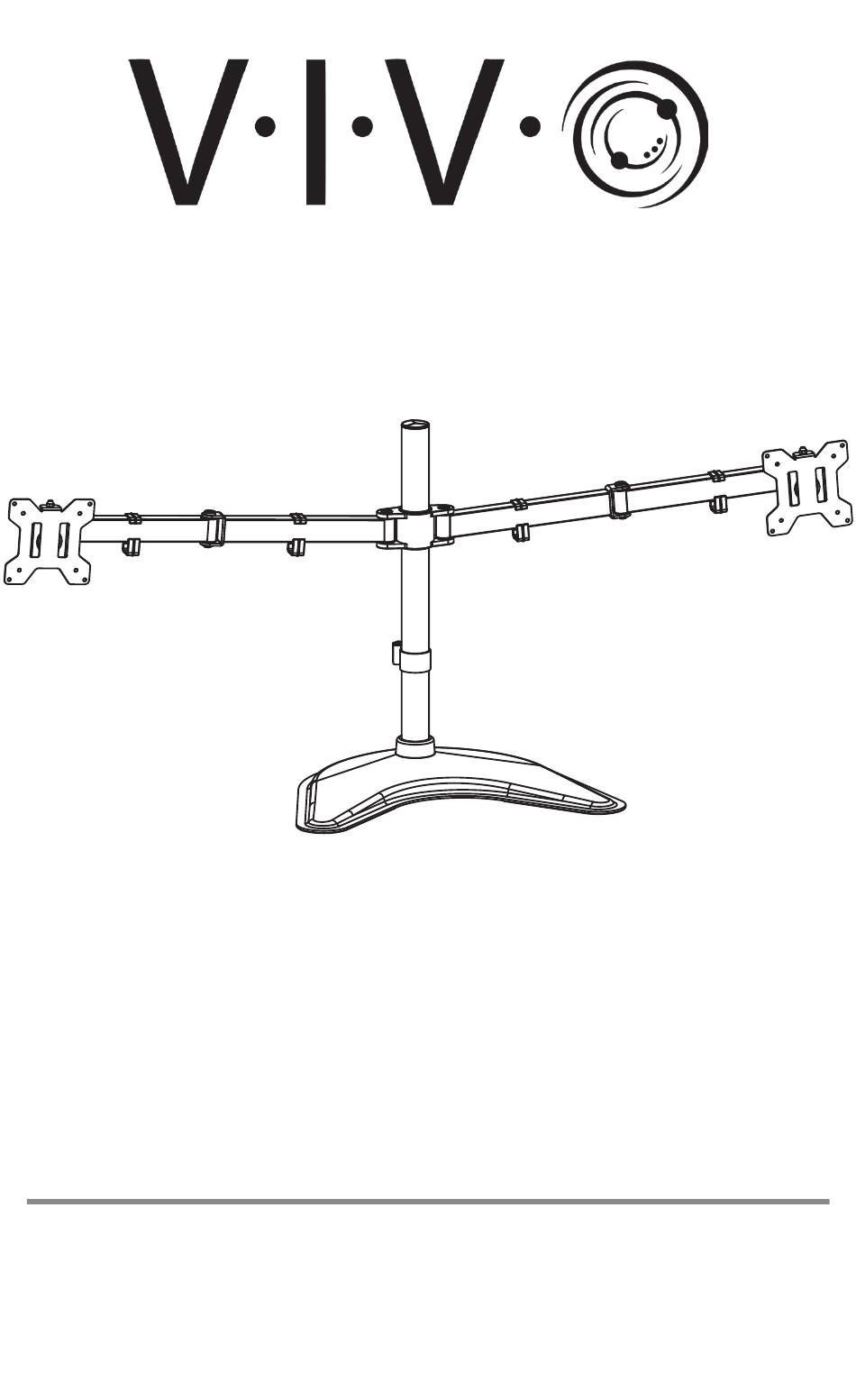

- Page 1 Dual Ultrawide Monitor Desk Stand STAND-V038F Assembly Manual...
- Page 2 Better Products for a Better Workspace Experience We are dedicated to creating high-end ergonomic solutions for the office with top of the industry support. Explore Endless Workspace Solutions www.vivo-us.com...
- Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
-
Page 4: Package Contents
Package Contents A (x1) B (x1) C (x1) Pole Base D (x2) E (x1) F (x1) G (x4) H (x1) VESA Plate Pole Cap Cover Arm Cable Pole Cable Clip Clip Included Hardware & Tools S-A (x2) M-A (x8) M-B (x8) M-C (x8) M6 Cap Nut M4x12mm... -
Page 5: Assembly Steps
Assembly Steps STEP 1 Slide Cover (F) and Pole Cable Clips (H) over Pole (A), then thread Pole into Base (B). Press Pole Cap (E) into the top of Pole. Secure Pole by tightening Set Screws using 3mm Allen Wrench (T-A). Set Screws STEP 2 Slide Arm (C) onto Pole (A) and secure at desired height using 6mm Allen Wrench (T-B). - Page 6 STEP 3 Install VESA Plates (D) onto your monitors using M4x12mm Thumbscrews (M-A) or M4x30mm Screws (M-B) and Spacers (M-C) if needed. Lightly tighten with a Phillips screwdriver. Installation Tip: The “V” on VESA Plate should be pointing down towards bottom edge of monitor.
- Page 7 STEP 4 Slide your monitors with VESA Plate (D) onto Arm (C). Secure the VESA Plates (D) to the Arm using M6 Cap Nuts (S-A). ** CAUTION ** To prevent the stand from tipping over, use caution when attaching monitors.
-
Page 8: Vertical Adjustment
STEP 5 Route cables through Arm and Pole Cable Clips (G,H). Vertical Adjustment Remove the M6 Cap Nuts (S-A) and adjust the VESA height adjustment screws using 3mm Allen Wrench (T-A). Reinstall the M6 Cap Nuts. -
Page 9: Tilt Adjustment
Tilt Adjustment Standard Monitors Firmly Hold Monitor Firmly grasp and hold the monitor in place. Do NOT release monitor until you have completed steps below. Loosen Tilt Joint: With a hand still on the monitor, use 6mm Allen Wrench (T-B) to loosen the tilt joint Adjustment Screw, located behind VESA Plate (D). - Page 10 Adjust as Desired Swing and rotate as desired. ** WARNING ** Do not extend the arms past the base as shown below.
