Summary of Contents for Vivo STAND-V038 Series

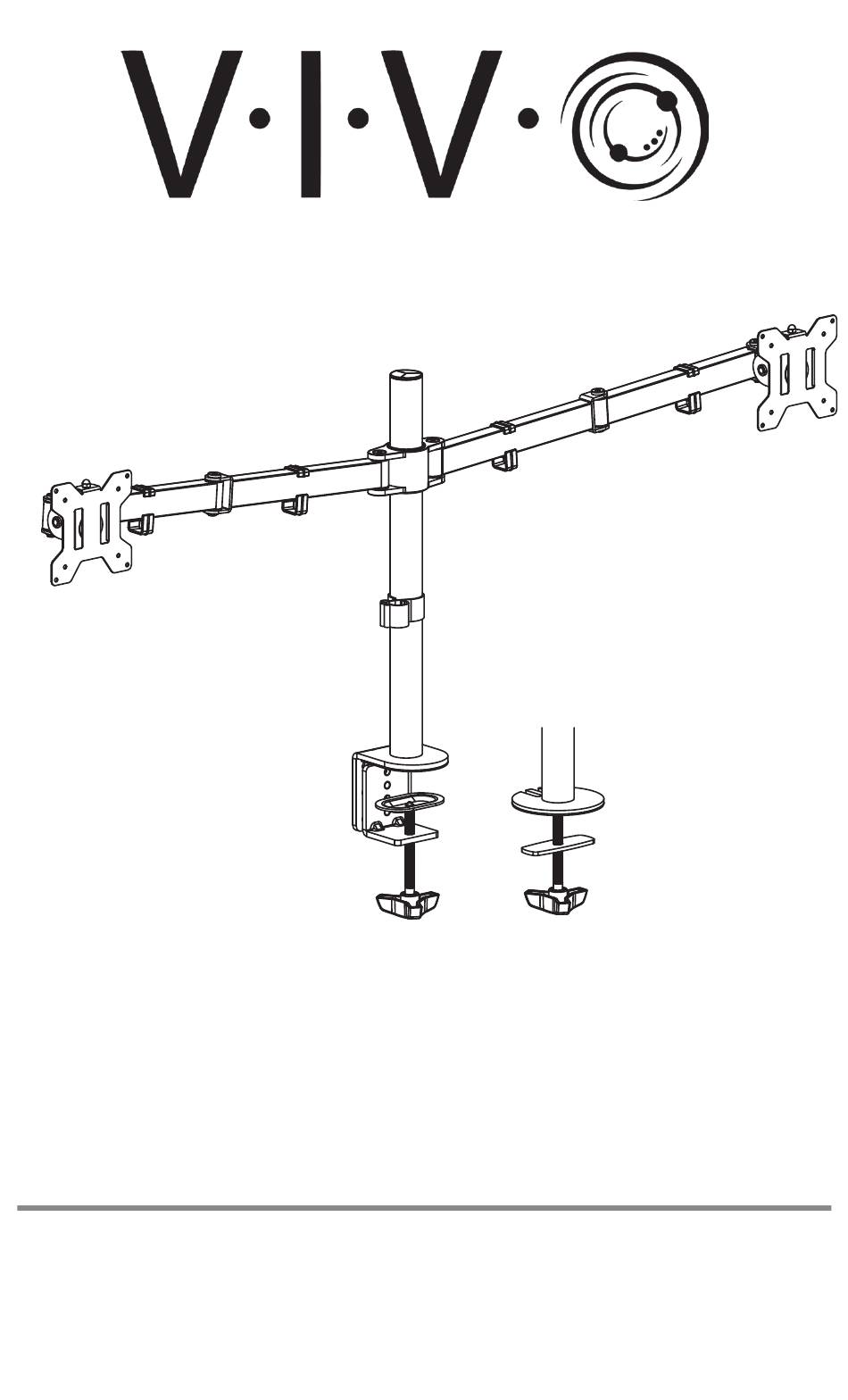

- Page 1 Dual Ultrawide Monitor Desk Mount STAND-V038 Series Assembly Manual Individual Product SKUs STAND-V038 STAND-V038W...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
- Page 3 Package Contents A (x1) B (x1) C (x1) D (x2) Pole Clamp Swivel Arm VESA Plate E (x1) F (x1) G (x1) H (x1) Grommet Protective Pad Pole Cap Pole Cable Plate Clip I (x4) J (x1) Arm Cable Clip Support Plate Included Hardware &...
- Page 4 Assembly Steps STEP 1 Loosen knob on Clamp (B). STEP 2 Option 1: Clamp Installation Desktop Thickness: 0.40” - 3.35” (10mm - 85mm) Secure assembly to desktop by Attach Clamp (B) to Pole (A) using tightening knob on Clamp (B). M6x16mm Screws (S-A) and a 3mm Allen Wrench (T-A).
- Page 5 Option 2: Grommet Installation Desktop Thickness: 0.40” - 3.0” (10mm - 75mm) Using a Phillips screwdriver, remove the screw from Clamp (B) and disassemble. Set Knob (B1) aside. Attach Grommet Base (E) to Pole (A) Remove adhesive backing from Soft using M6x16mm Screws (S-A) and Pad (F) and stick it to the bottom of 3mm Allen Wrench (T-A).
- Page 6 Option 2: Grommet Installation - Cont’d Thread Clamp Bolt (B1) with Support Plate (J) through the mounting hole and into Pole (A). No Grommet Hole? If you do not have an existing hole for installation, drill a hole through your desktop in your desired mounting location using a 3/8”...
- Page 7 STEP 3 Unfold Swivel Arm (C) and extend into one straight line. Slide Pole Cable Clip (H) and Swivel Arm (C) onto Pole (A). Secure Swivel Arm in place using 6mm Allen Wrench (T-B). Attach Pole Cap (G) to Pole. Attach Arm Cable Clips (I) to Swivel Arm (C).
- Page 8 STEP 4 Secure VESA Plates (D) to monitors using M4x12mm Thumbscrews (M-A) or M4x30mm Screws (M-B). M6 Spacers (M-C) may be required. Flat Monitor Curved Monitor Make sure the Lips of the VESA Plates are facing the top of the TV.
- Page 9 STEP 5 Slide monitors with VESA Plates (D) onto Swivel Arm (C). Secure VESA Plates in place using M6 Security Nuts (S-B). STEP 6 Manage cables using Arm Cable Clips (I) and Pole Cable Clip (H).
- Page 10 Adjustments To adjust the monitor tilt, use 6mm Allen Wrench (T-B) to loosen bolt on the side of VESA head. Adjust monitor, then retighten bolt to secure. 180° Swivel Lightly pull monitors left or right by hand to adjust swivel. 360°...
- Page 11 Leveling Monitors To level monitors, remove M6 Tighten or loosen adjustment screws Security Nuts (S-B). using 3mm Allen Wrench (T-A). Replace M6 Security Nut.
- Page 12 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
Need help?
Do you have a question about the STAND-V038 Series and is the answer not in the manual?
Questions and answers
I can adjust the monitor tilt it say loosen the screw on on the side yet there stuck up and I’m putting weight to get them to go down I loosen said screw even out the monitor on there hell even tried taking it out nothing is working
To adjust the monitor tilt on the Vivo STAND-V038 Series, use the 6mm Allen Wrench (T-B) to loosen the bolt on the side of the VESA head. If the screws are stuck, apply steady pressure with the wrench, ensuring it is fully seated in the bolt to avoid stripping. If necessary, use a penetrating lubricant on the bolt and allow time for it to work before trying again. Once loosened, adjust the monitor and retighten the bolt to secure.
This answer is automatically generated
