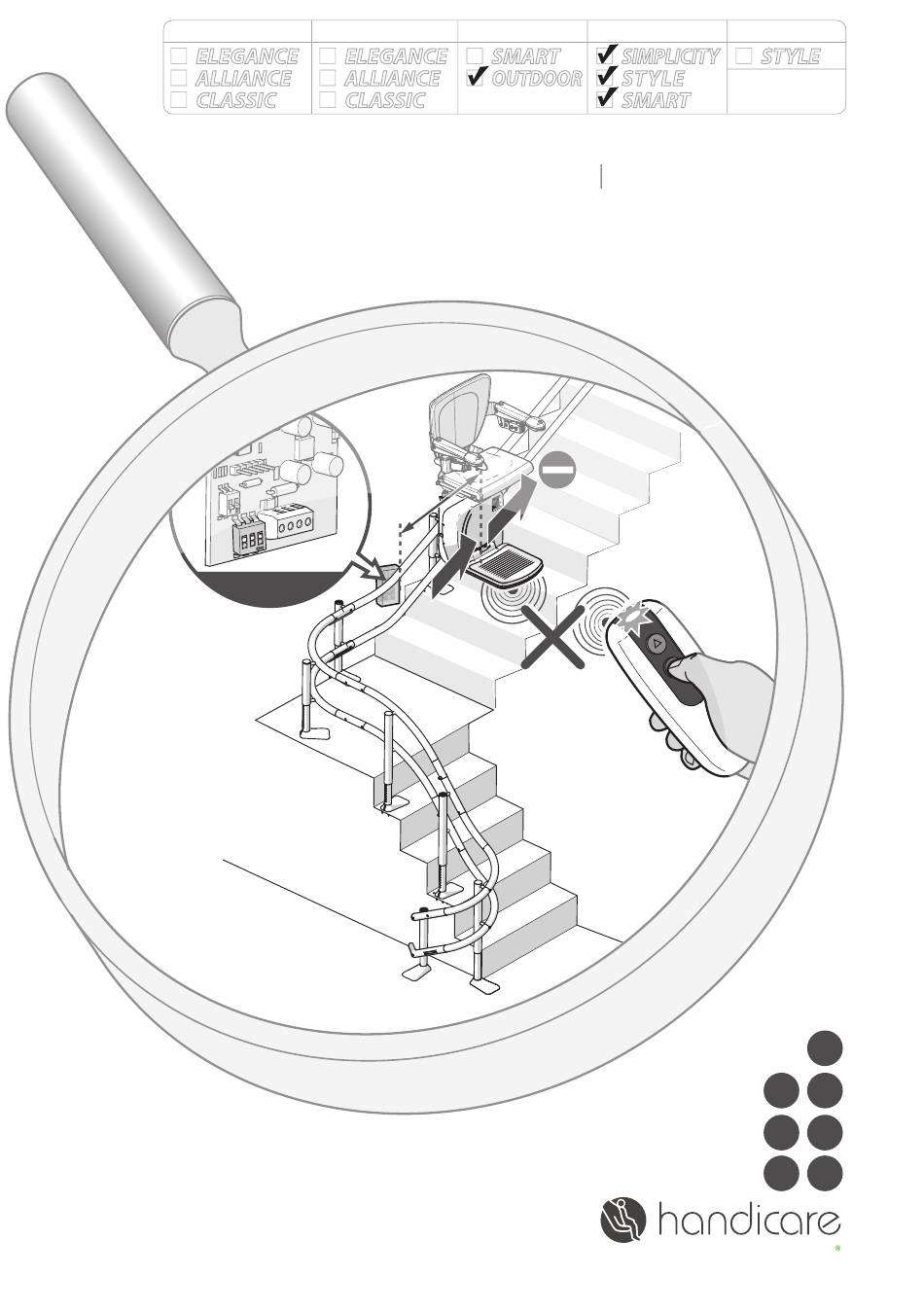

- Page 1 FREECURVE 3 FREECURVE 4 1000 4000 1100 ELEGANCE ELEGANCE SMART SIMPLICITY STYLE ALLIANCE ALLIANCE OUTDOOR STYLE CLASSIC CLASSIC SMART RF REPEATER I N S T R U C T I O N INSTRUCCIÓN INSTRUCTIE ANLEITUNG INSTRUCTION ISTRUZIONE Repeater Savaria...
-
Page 2: Tools Required
RF REPEATER TOOLS REQUIRED AA33689 868 MHz AA33960 915 MHz AA33961 2.4 GHz Pz 2 13 mm Max. 4 repeaters INSTRUCTION 11P00266 in a system Electro Static Discharge 79 inch STANDING AT THE BOTTOM OF THE STAIRS 1 RF REPEATER INSTRUCTION... - Page 3 EXPLANATION Only a technician certified for this lift should service this lift (for more detailed information about the required competence see the installation manual). The latest instructions for the lift and instructions for options are available for download at www.handicarepartners.com. [1] Check that all the components of the concerning kit are present.
- Page 4 RF REPEATER 13 mm 3 RF REPEATER INSTRUCTION...
- Page 5 EXPLANATION [4]Turn off/disconnect the power supply and switch off the powerpack. Drill a 13 mm hole in the bottom rail. Be careful not to damage the wire inside. [5]Use a bent piece of iron wire to pull the cable from inside the rail through the hole. [6]Cut through the cable.
- Page 6 RF REPEATER 8 mm 45 Nm 398 Lb-In 5 RF REPEATER INSTRUCTION...
- Page 7 EXPLANATION [8]Remove the paint from the rail{A}. Position the earth wire between lug and rail{B}. Place stanchion bolt and spacer. Tighten the stanchion-rail bolt [45 Nm | 398 Lb-In]{C}. [9]Feed all the wires into the hole of the rail{A}. Insert the grommet into the hole{B}. Use cable ties to fasten the excessive wires to the stanchion{C}.
- Page 8 RF REPEATER SAME POSITION CLICK! SAME POSITION OFF - OFF - OFF FIRST REPEATER CLICK! 15(1) 7 RF REPEATER INSTRUCTION...
- Page 9 EXPLANATION [12]Connect the wires with the repeater PCB. The + and - connections are labelled on the RF Repeater. [13]Set the dipswitch settings on the PCB: each RF remote should have the same dipswitch settings as the RF Repeater. [14]Also the RF receiver should have the same dipswitch settings as the RF Repeater. [15_1]Settings 3 way DIP switch on the repeater: 3 x OFF.
- Page 10 RF REPEATER FIRST LATER MORE REPEATER CAN BE PLACED IF SIGNAL WILL BE LOST FURTHERON THE TRACK FOLLOW THE SAME PROCEDURE EXCEPT STEP 15 (see next page for the step that takes its place) 9 RF REPEATER INSTRUCTION...
- Page 11 EXPLANATION [16]Close the holder. [17+18]Turn on the powerpack{A} (and wait until receiver LED is solid green{B}) before restoring power to the power supply. In the event that the stair configuration results in the signal being lost, further repeaters can be fitted by returning to the start of the rail and repeating the steps above, except STEP 15 (see next page for the step that takes its place) [16]Sluit de houder.
- Page 12 RF REPEATER OFF - ON - OFF OFF - OFF - ON REPEATER REPEATER 15(3) 15(2) OFF - ON - ON DOWN REPEATER STANDING AT THE BOTTOM OF THE STAIRS 15(4) 11 RF REPEATER INSTRUCTION...
- Page 13 EXPLANATION [15_2]In case 2 repeaters are needed > Settings 3 way DIP switch on the repeater: OFF - ON - OFF. [15_3]In case 3 repeaters are needed > Settings 3 way DIP switch on the repeater: ON - OFF - OFF. [15_4]In case 4 repeaters are needed >...
- Page 16 West Midlands DY6 7FJ, United States of America England T +44 (0)1384 408700 T 1.800.791.7999 enquiries@handicare.co.uk sales.us@handicare.com Handicare Monte-escaliers Savaria Canada 4 Rue des Piverts 2 Walker Drive Brampton, ZAC de l’ Aunaie ON L6T 5E1 Canada 91610 Ballancourt-sur-Essonne T 1.905.791.5555 France T 1.855.728.2742...
