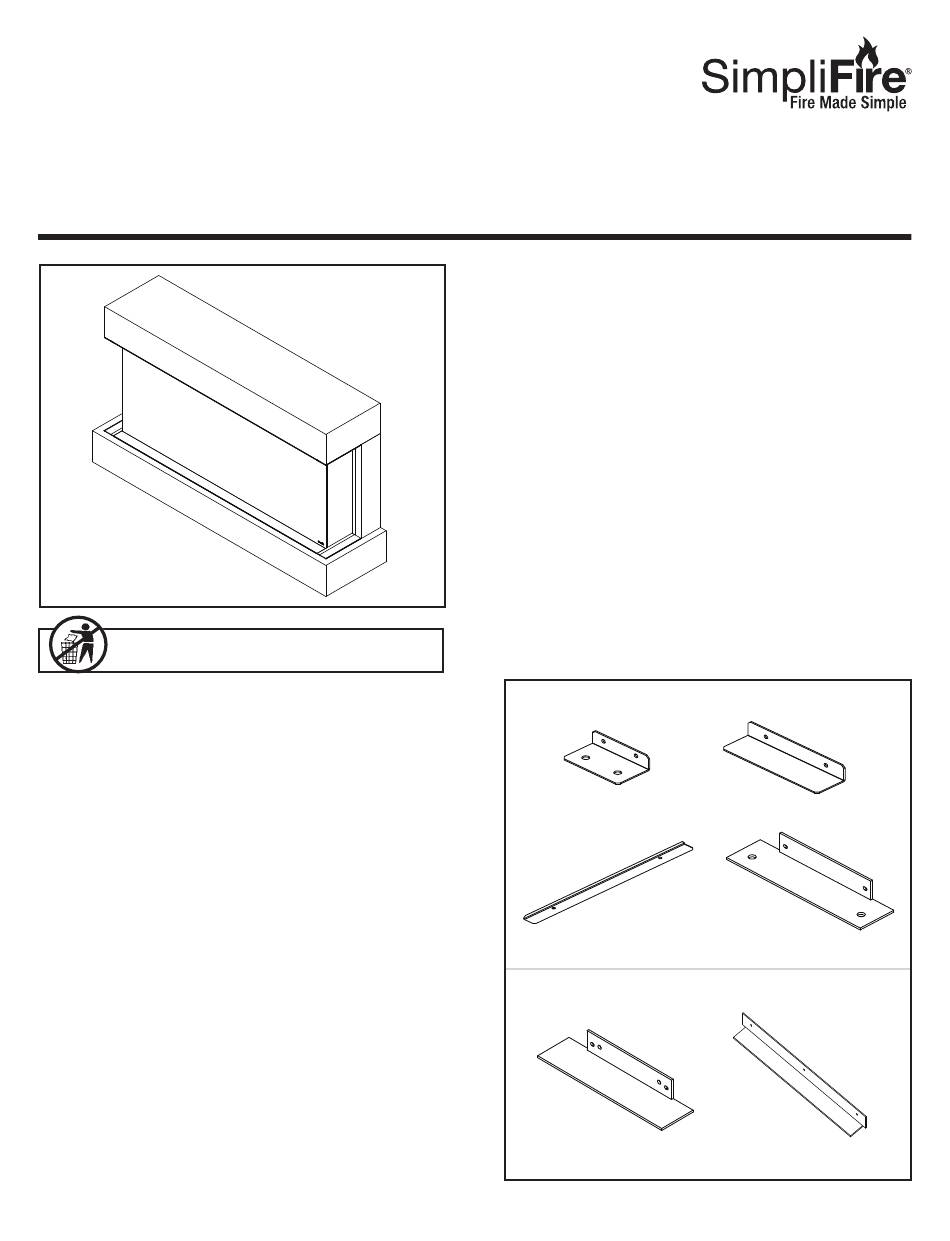

SimpliFire TRITON FMK-WH-TR50 Instructions Manual

Leave this manual with party responsible for use
and operation.
NOTICE! DO NOT discard this manual.
and maintenance instructions included.
The Floating Mantel is painted in white finish. For
instructions on refinishing a surround, see page 2. It
is recommended that refinishing be completed prior to
installation of surround.
Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
• Tape measure
• Needle-nose pliers
• Hammer
• Gloves
• Level
• Magnetic Phillips screwdriver
• Safety glasses
• Flat blade screwdriver
• 1/2 in. drill bit for 3/16 diameter toggle bolts (applicable
if installing on masonry walls)
• Masonry drill bit 5/16 in. (applicable if installing on
masonry walls)
TRITON Floating Mantel Kit
FMK-WH-TR50
Model: SF-TR50
- Instructions -
Important service
SimpliFire • Triton Floating Mantel Instructions • TR-FMK-INS-B • 2/25
Kit Components
• Mantel Bottom
• Mantel Top
• Mantel Side Panel (2)
• Side Bracket (2)
• Side Bottom Brackets (2)
• Top Side Trim Brackets (2)
• Front Bracket (1)
• ST4*12 Screws (13)
• ST6*50 Screws (11)
• M5*10 Screws (2)
• M6*16 Screws (8)
• 6*30 Wooden Dowels (8)
• Masonry Anchors (11)
• Wall Mount Bracket (1)
• Toggle Bolt Anchors (11)
• Plug-in Power Cord (1)
• Stabilizing Bracket (1)
INCLUDED WITH MANTEL KIT
SIDE BRACKETS (2)
FRONT BOTTOM BRACKET (1)
WITH APPLIANCE
BOTTOM SIDE TRIM BRACKETS (2)
Figure 1 Bracket
SIDE BOTTOM BRACKETS (2)
TOP SIDE TRIM BRACKETS (2)
BACK SIDE TRIM BRACKETS (2)
(OPTIONAL)
1
