Congratulations!

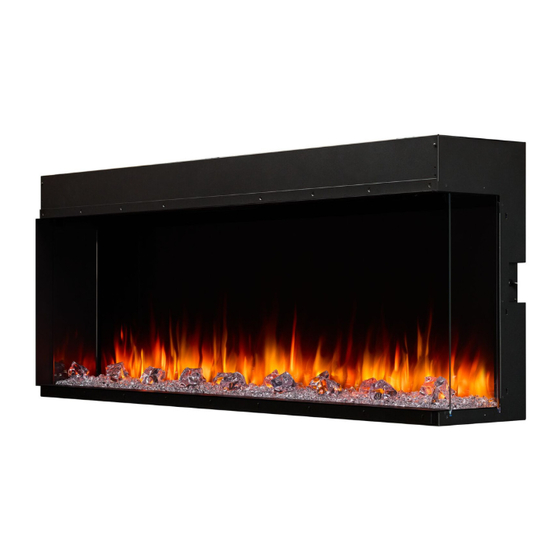

Congratulations on selecting a SimpliFire Electric Fireplace, an elegant and clean alternative to wood and gas burning
fireplaces. The SimpliFire electric fireplace you have selected is designed to provide the utmost in safety, reliability, and
efficiency.
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE, OR MAINTAIN
THIS PRODUCT.
PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE
TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR
PROPERTY DAMAGE.
WARNING: To reduce risk of fire, electrical shock, or personal injury, read and understand
all instructions, including safety information before plugging in and using this appliance.
Please contact your SimpliFire dealer with any questions or concerns.
DO NOT DISCARD THIS MANUAL
• Read, understand and follow
these instructions for safe
installation and operation.
For the location of your nearest SimpliFire dealer,
please visit www.hearthnhome.com.
SimpliFire • SF-TR50, SF-TR65, SF-TR78 Installation Manual • SF-TR-MAN-C • 3/25
NOTICE
• Leave this manual with
party responsible for use
and operation.
Owner's Manual
Installation and Operation
