SimpliFire SF-TR50 Service Manual

Leave this manual with party responsible for use
and operation.
NOTICE! DO NOT discard this manual.
and maintenance instructions included.
NOTICE! DO NOT discard any hardware while
servicing. It may be reused.
WARNING! Risk of Personal Injury or Property Dam-
age! Failure to follow instructions below may result in
damage to the equipment and / or may expose the user
to the risk of fire, serious injury, illness or death.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during
installation and service. Sheet metal edges are sharp.
WARNING! Risk of Shock! Always turn off the circuit
breaker before moving or servicing.
Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
• Needle-nose pliers
• Gloves
• Magnetic Phillips screwdriver
• Safety glasses
• Drill
• Flat blade screwdriver
SERVICE MANUAL
Model: SF-TR50, SF-TR65, SF-TR78
- Instructions -
Important service
SimpliFire • SF-TR50, SF-TR65, SF-TR78 Service Manual • SF-TR-FSM • 12/24
CAUTION! Two adults recommended for the removal
or installation of glass. Use caution when handling
glass. Failure to do so could result in personal injury or
property damage.
Glass Replacement
Removal
1. Remove the two (2) thumb screws and brackets
located on the inner upper corners of the
appliance opening. See Figure 1.
2. Using a suction cup, pull the glass away from
the appliance and lift out of the bottom glass
channel.
Replacement
3. Set the bottom edge of glass into the glass channel
and tip back into the appliance until it rests against
the glass stops.
4. Reinstall the glass brackets and thumb screws.
THUMB SCREW THUMB SCREW

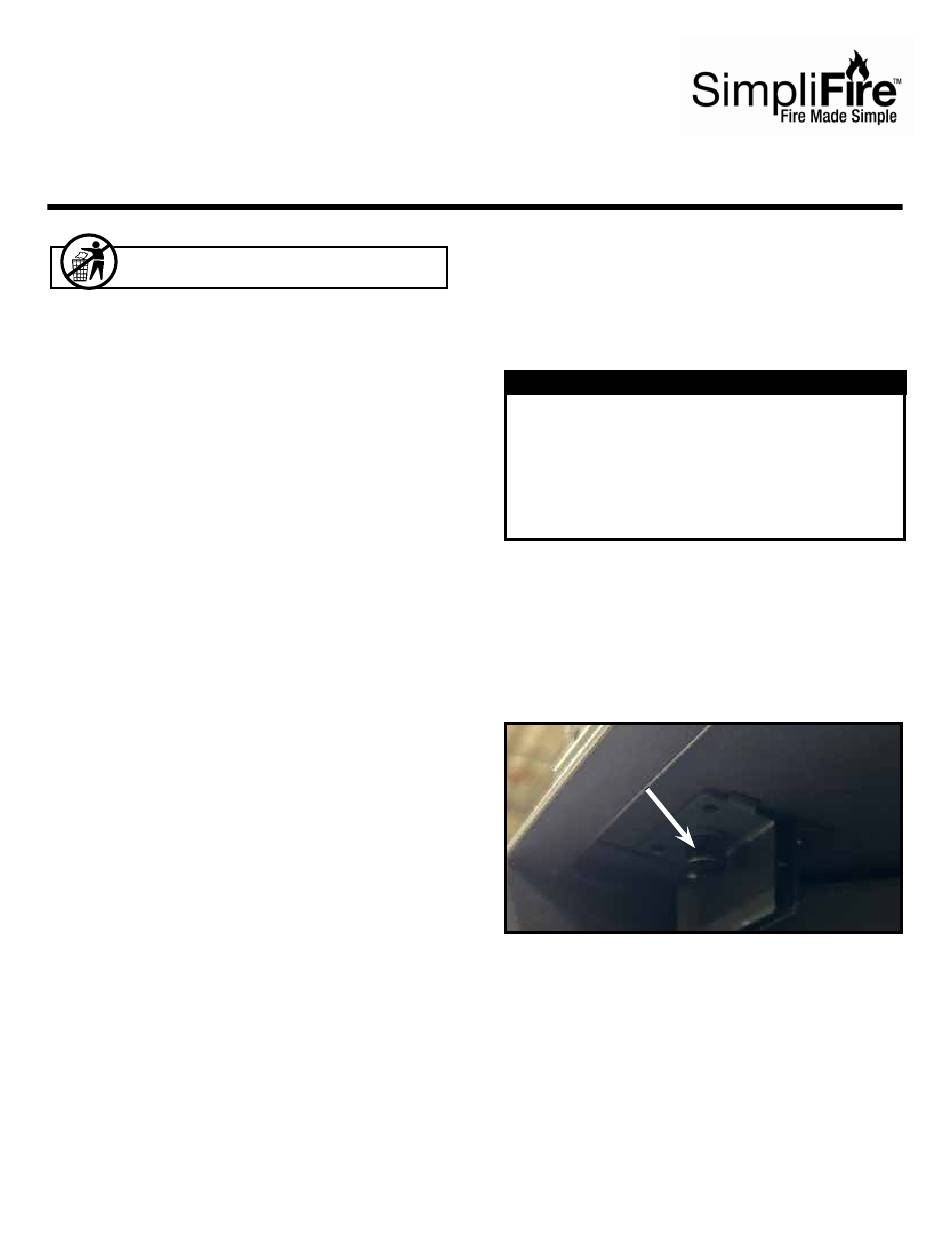

Figure 1 Remove Glass
1
