GRUNDFOS ALPHA1 GO Manual

General information

Read this document before you install the product. Installation and operation must comply with local regulations and accepted codes of good practice.

Hazard statements
The symbols and hazard statements below may appear in Grundfos installation and operating instructions, safety instructions and service instructions.

Indicates a hazardous situation which, if not avoided, will result in death or serious personal injury.

Indicates a hazardous situation which, if not avoided, could result in death or serious personal injury.

Indicates a hazardous situation which, if not avoided, could result in minor or moderate personal injury.

The hazard statements are structured in the following way:

SIGNAL WORD
Description of the hazard
Consequence of ignoring the warning

• Action to avoid the hazard.

Notes
The symbols and notes below may appear in Grundfos installation and operating instructions, safety instructions and service instructions.

Observe these instructions for explosion-proof products.

A blue or grey circle with a white graphical symbol indicates that an action must be taken.

A red or grey circle with a diagonal bar, possibly with a black graphical symbol, indicates that an action must not be taken or must be stopped.

If these instructions are not observed, it may result in malfunction or damage to the equipment.

Tips and advice that make the work easier.

Recommended safety equipment
We recommend the following safety equipment, when handling this product.

Wear safety shoes.

Wear protective gloves.

Wear safety glasses.

Product introduction

Product description

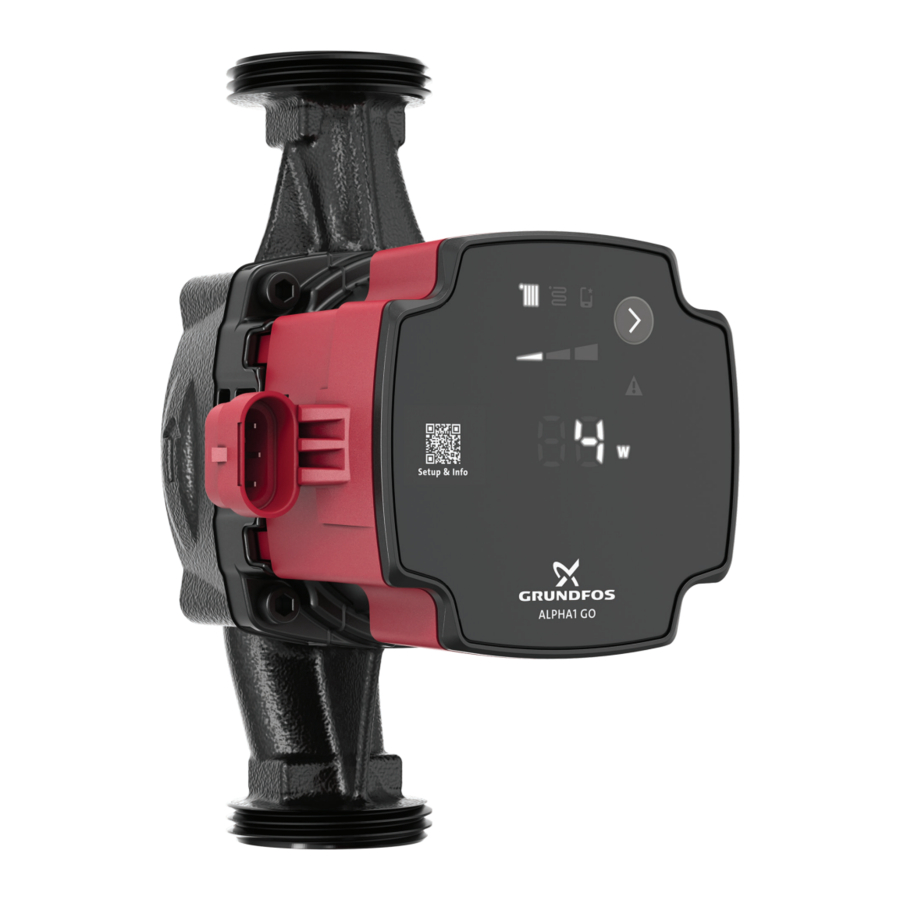

ALPHA1 GO is a high-efficiency circulator pump fitted with an electronically commutated motor and designed for circulating liquids in heating and air conditioning systems.

ALPHA1 GO is equipped with intelligent controls and offers three control modes:

• constant pьnt curve.

Each mode has three adjustable speed settings.

Replacement of older integrated and stand-alone circulator pumps, including replicating curves, is made easy by using the Grundfos GO app and operating panel.

The toolless installer plug enables a fast and easy electrical connection.

The automatic self-venting ability and dry-running protection ensure quiet operation and reliability of the pump.

The product features robust startup which reduces the risk of blockages from dirt, magnetite and limescale build-up. In the unlikely case of a blocked pump, the motor continuously attempts to start at the highest possible torque, ensuring startup in tough conditions.

The ceramic shaft and bearings experience minimal wear, resulting in a longer lifespan and a reduced likelihood of noise in the system due to increased bearing clearance from wear.

Fault finding is fast and easy by using the error codes on the pump operating panel.

Intended use

The pump is designed for circulating liquids in the following:

• heat production: boilers, heat pumps and district heating systems.
• distribution systems: space heating, for example, radiators, underfloor-heating systems and air-conditioning.

This pump is only for indoor use.

Related information Pumped liquids

Foreseeable misuse

Do not use the pump for flammable, combustible or explosive liquids such as diesel oil, gasoline or similar liquids.

The pump is not a safety component and cannot be used to ensure functional safety in the final appliance.

Do not use the pump in swimming pools or marine areas.

The pump is not suitable for drinking-water applications.

Pumped liquids

The product is suitable for the following liquids:

• Clean, thin, non-aggressive and non-explosive liquids, not containing solid particles or fibres.
• In heating systems, the water must meet the requirements of accepted standards on water quality in heating systems, for example the German standard VDI 2035.
• The pH must be between 8.2 and 9.5. The minimum value depends on the water hardness and must not be below 7.4 at 4 °dH (0.712 mmol/l).
• The electrical conductivity at 25°C must be equal to or larger than 10 µS/cm.
• Mixtures of water with antifreeze media such as glycol or ethanol with a kinematic viscosity lower than 15 mm²/s (15 cSt).

Related information Intended use

Identification

Nameplate

Nameplate

Related information
Inspecting the product
Electrical connection
Technical data

Type key
Example: ALPHA1 GO 25-40 180 220-240 V

Approvals and markings

Any changes or modifications to this equipment not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Biological hazard

Minor or moderate personal injury

• This product is not approved for drinking water applications.

Receiving the product

Inspecting the product

Crushing of feet

Minor or moderate personal injury

• Wear safety shoes when handling the product.

Sharp element

Minor or moderate personal injury

• Wear protective gloves.

1. Make sure that the delivered product corresponds to the order.
2. Make sure that the voltage and frequency of the product matchthe voltage and frequency of the installation site.

Related information Nameplate

Scope of delivery

The box contains the following items:

1 pump
1 power plug
2 gaskets
insulating shells¹⁾
1 quick guide.

¹⁾ The product can be supplied with or without insulating shells.

Mechanical installation

Electric shock
Death or serious personal injury

• A damaged product must be repaired or replaced by Grundfos or a service workshop authorized by Grundfos.

Crushing of feet

Minor or moderate personal injury

Sharp element

Minor or moderate personal injury

• Wear protective gloves.

The pump must always be installed with a horizontal motor shaft within ± 5°.

The pump is a non-submersible pump.

Mounting the pump

Make sure that the pump orientation is correct.

The arrows on the pump housing indicate the flow direction through the pump.

1. Close the inlet and outlet valves.
2. Fit the two gaskets supplied with the pump when you mount thepump in the pipes.
3. Tighten the unions.
4. Make sure to use an allowed control box position.
5. Mount the power plug.

For illustrations of the installation, see the ALPHA1 GO quick guide.

ALPHA1 GO quick guide

Related information
Changing the pump head position

Changing the pump head position

Hot surface

Minor or moderate personal injury

• Position the pump so that persons cannot accidentally come into contact with hot surfaces.
• The pump housing may be hot due to the pumped liquid being scalding hot. Close the isolating valves on both sides of the pump and wait for the pump housing to cool down.

Pressurised system
Minor or moderate personal injury

• Before disassembling the pump, drain the system or close the isolating valves on both sides of the pump. The pumped liquid may be under high pressure.

To change the position of the pump head, do as follows:

1. Loosen and remove the four screws.

2. Turn the pump head to the desired position.

   The control box can be turned in steps of 90°.

3. Insert and cross-tighten the screws (torque 5 Nm).


Related information Mounting the pump

Electrical connection

Electric shock
Death or serious personal injury

• Switch off the power supply before you start any work on the product. Make sure that the power supply cannot be switched on accidentally.

• Connect the pump to earth.
• In case of an insulation fault, the fault current may be a DC or pulsating DC. Observe national legislation about requirements for and selection of Residual Current Device (RCD) when installing the product.
• All electrical connections must be carried out by a qualified electrician in accordance with local regulations.

Related information Nameplate

Assembling the power plug

1. Unscrew the cable gland.

2. Insert the power cable into the cable gland and cover.

3. Strip the wires according to the measurements below.

4. Open the wire locks.

5. Insert the wires according to the colour code. Blue: neutral (N),black or brown: phase (L), yellow/green: earth.

6. Close the wire locks.

7. Slide the cover in.

8. Click the cover in place and tighten the cable gland.


Related information
Rotating the power plug 90°

Rotating the power plug 90°
Before assembling the power plug, the following preparations must be completed:

1. Remove the cover.

2. Lift the back plate of the plug

3. Turn the plug 90° left.

4. Place the back plate in the 90° position.

5. Slide the cover back on.


Related information Assembling the power plug

Wiring diagram

Power plug

Pos.	Description	Wire colour
L	Phase	Black or brown
	Earth	Yellow/green
N	Neutral	Blue

Control box connections

All control boxes have one power inlet on the side.

Accessories

Power cable adapters

	Description	Length [mm]	Product number
	Superseal Molex cable adapter, overmoulded, with rubber cap	150	99165311
	Superseal Volex cable adapter, overmoulded, with rubber cap	150	99165312
	Superseal to ALPHA plug	145	93296229

Starting up the product

1. Fill the system with liquid and vent it.
2. Make sure the required minimum inlet pressure is available atthe pump inlet.
3. Switch on the power supply.

You can change the settings on the operating panel.

Related information
Venting the product
Operating panel

Venting the product

Small air pockets trapped inside the pump may cause noise when starting up the pump. However, because the pump is self-venting through the system, the noise ceases over a period of time. We recommend venting the pump in new installations or when the pipes have been emptied and refilled with water.

1. Set the control mode to constant curve, setting III.
2. Let the pump run for 10 minutes.

The pump must not run dry.
You cannot vent the system through the pump.

Related information
Starting up the product
Operating panel

Dry-running protection

The dry-running protection protects the pump against dry running during normal operation.

Normal operation
If dry running is detected during normal operation, the pump retries several times. If dry running continues, the pump stops, the warning and alarm symbol on the display is flashing red and the error code E4 is displayed on the operating panel

The pump can be restarted by pressing the Selection button on the pump. The pump repeats the dry-running detection every 25 hours to verify that the pump is not running dry. Note: The pump can sustain 25 hours of dry-running operation.

Robust start

The non-magnetic shaft and bearings reduce the risk of blockages from dirt or magnetite, while the bearing system helps prevent limescale build-up. In the unlikely case of a blocked pump, the motor continuously attempts to start at the highest possible torque, ensuring startup in tough conditions.

Control functions

Operating panel

LEDs and buttons on the pump display.

Related information
Starting up the product
Venting the product
Overview of LEDs
Control modes
Setting of the product

Overview of LEDs
The LEDs indicate the control mode, setting and operating status.

Factory setting
The pump is factory set to proportional pressure, setting II.

Active light fields	Description
	Advanced mode This mode makes it possible to replicate an UPS pump performance curve. When this function is active, the icon is lit and the control modes on the operating panel are switched off.
	Proportional-pressure mode
	Constant-pressure mode
	Setting I
	Setting II
	Setting III

When the symbols for the constant-pressure and proportionalpressure modes are off, the pump is running in constant-curve mode.

Related information
Operating panel
Replacement of a UPS pump

Power saving
In order to lower the energy consumption and heat generation, the operating panel goes into power saving mode after 15 minutes of inactivity. The power saving mode switches off the LEDs in the middle including the dot and the units.

• To reactivate the pump from the power saving mode, press the Selection button.
• If a warning or an alarm is present during power saving mode, only the yellow or red LED will be lit. Press the Selection button to see the error code.

Control modes

ALPHA1 GO can be set to the following control modes:

• constant curve
• proportional pressure
• constant pressure
• replacement mode.

All control modes, including replacement mode, can be set to pump setting I, II, III and can only be set on the operating panel.

Related information Operating panel

Constant curve

In the constant-curve mode, the pump runs at a constant curve, which means that it runs at constant speed or power. The pump performance follows the selected constant curve. This control mode is especially suitable in applications where the characteristics of the heating system are steady, and the emitters require a constant flow. The selection of the constant-curve setting depends on the characteristics of the heating system and the actual required flow and heat demand.

Constant curve

Constant pressure

In the constant-pressure mode, the pump runs at constant pressure, which means the head (pressure difference) is kept constant, regardless of the heat demand (actual number of open zones). The pump performance follows the selected constantpressure curve.

This control mode is especially suitable for underfloor heating and applications where the pump is used to supply a common manifold for multiple zones. The head across each zone will remain constant, independent of how many zones request heat. Thus a constant flow in each zone will be maintained, independent of other zones. The selection of the constant-pressure setting depends on the characteristics of the zones in the heating system and the actual heat demand.

Constant pressure

Proportional pressure

In the proportional-pressure mode, the pump runs at proportional pressure, which means the head (pressure) is reduced at falling heat demand and increased at rising heat demand. The pump performance follows the selected proportional-pressure curve. This control mode is especially suitable for applications where the heat emitters are equipped with a TRV (thermostatic radiator valve) which controls the flow depending on the room temperature. At increased flow, the losses in the distribution system (pipes and fittings) increase, hence the pumps increase the pressure to compensate and vice versa, hereby maintaining an almost constant differential pressure across the thermostatic radiator valve.

The proportional-pressure mode setpoint depends on the heating system's characteristics and the actual heat demand.

Proportional-pressure settings

Replacement of a UPS pump

The product can be used to replace most existing integrated UPS circulator pumps. This means that when you replace an existing integrated pump, the new pump replicates the performance and configuration of the existing pump.

In the Grundfos GO app (via the GO Replace tool) or online via https://grundfos.to/replace, you can check the compatibility of the pump. During the replacement process, Grundfos GO guides you through the replacement process and helps setting up the new circulator pump to match the existing circulator pump.

Related information
Overview of LEDs
Replacing a UPS pump

Replacing a UPS pump
To start the replacement of a UPS pump, follow the steps below:

1. Open Grundfos GO.

• The QR code on the front of the ALPHA1 GO circulator pump leads you toGO Replace in Grundfos GO.
• If the app is not installed, the QR code leads you to a download site guiding you to install the app on your device.

2. Go to GO Replace.
   GO Replace can be found in the Products tab or in the Overview tab after it has been added to Your tools.
3. To identify the product being replaced, scan the nameplate orenter the 8-digit product number that can be found after "PN:" on the nameplate.
4. Follow the instructions in Grundfos GO.

To reset the pump to default settings, follow the steps below:

1. Hold theSelection button for 10 seconds until the digits are flashing.
2. Set the digits to "0" and wait 10 seconds.

The pump reverts to the factory settings, and you can toggle between the different control modes again.

Related information
Replacement of a UPS pump

Setting of the product

The operating panel can be used for the following:

• Selecting proportional pressure (radiator system), constant pressure (underfloor heating system) or constant curve (speed).
• Selecting pump setting (I, II, III) for the three control modes available on the operating panel.
• Selecting the pump advanced mode to enable the pump to replicate a UPS pump performance.

Related information Operating panel

Service

Electric shock
Death or serious personal injury

• All electrical connections must be carried out by a qualified electrician in accordance with local regulations.

• Switch off the power supply before you start any work on the product. Make sure that the power supply cannot be switched on accidentally.
• A damaged product must be repaired or replaced by Grundfos or a service workshop authorized by Grundfos.
• Connect the pump to earth.

Pressurised system
Minor or moderate personal injury

• Before disassembling the pump, drain the system or close the isolating valves on both sides of the pump. Slowly loosen the screws and unpressurize the system. The pumped liquid may be scalding hot and under high pressure.

Hot surface

Minor or moderate personal injury

• The pump housing may be hot due to the pumped liquid being scalding hot. Close the isolating valves on both sides of the pump and wait for the pump housing to cool down.

Wear safety shoes.

Wear protective gloves.

Wear safety glasses.

Dismantling the product

Follow the steps below to dismantle the product:

1. Switch off the power supply.
2. Close the inlet and outlet valves.
3. Pull out the power plug.
4. Loosen the unions.
5. Remove the pump from the system.

Fault finding

Electric shock
Death or serious personal injury

• Switch off the power supply before you start any work on the product. Make sure that the power supply cannot be switched on accidentally.
• A damaged product must be repaired or replaced by Grundfos or a service workshop authorized by Grundfos.

Hot surface

Minor or moderate personal injury

• The pump housing may be hot due to the pumped liquid being scalding hot. Close the isolating valves on both sides of the pump and wait for the pump housing to cool down.

Pressurised system

Minor or moderate personal injury

• Before disassembling the pump, drain the system or close the isolating valves on both sides of the pump. The pumped liquid may be scalding hot and under high pressure.

Faults indicated on the pump

Faults preventing the pump from operating properly are indicated on the operating panel with the warning and alarm symbol turning either yellow or red.

A warning is indicated when the warning and alarm symbol is turning yellow. The pump is still running, but it does not perform as expected, and action is required in case of insufficient heating or discomfort. The operating panel alternates between showing either the error code or the control mode and setpoint.

An alarm is indicated when the warning and alarm symbol is turning red and the pump stops. In case of an alarm, all modes, speed and unit LEDs are switched off. Action is required.

If an alarm or warning is present, an error code will be displayed in the unit LED display.

LED	Description
	Warning indication
	Alarm indication

Overview of alarm and warning codes
Fault table

Symbol	Code on operating panel	Fault
	E1	Blocked motor
	E2	Undervoltage
	E3	Forced pumping
		Overvoltage
		Internal fault
		Internal fault
		Internal fault
	E4	Dry running
	E3	Impellers forced forward

Resetting alarms and warnings manually

If an alarm or warning is indicated on the display, and the fault has been corrected, press the Selection button to reset the alarm or warning.

However, if the fault causing the alarm or warning has not been removed, the alarm or warning will appear again.

Noise in the system

Code 43 (Forced pumping)

Code 51 (Blocked pump)

The warning and alarm symbol flashes red, the display shows error code E1 and the pump stops.

Code 40 (Undervoltage)

The warning and alarm symbol flashes red, the display shows error code E2 and the pump stops.

Code 4 (Overvoltage)

The warning and alarm symbol flashes red, the display shows error code E3 and the pump stops.

Code 72 (Internal fault)

The warning and alarm symbol flashes red, the display shows error code E3 and the pump stops.

Technical data
