saunalife Ergo Series Manual

Barrel sauna half glass window 87d" x 81h"
Hide thumbs Also See for Ergo Series:

Advertisement

Quick Links

Download this manual

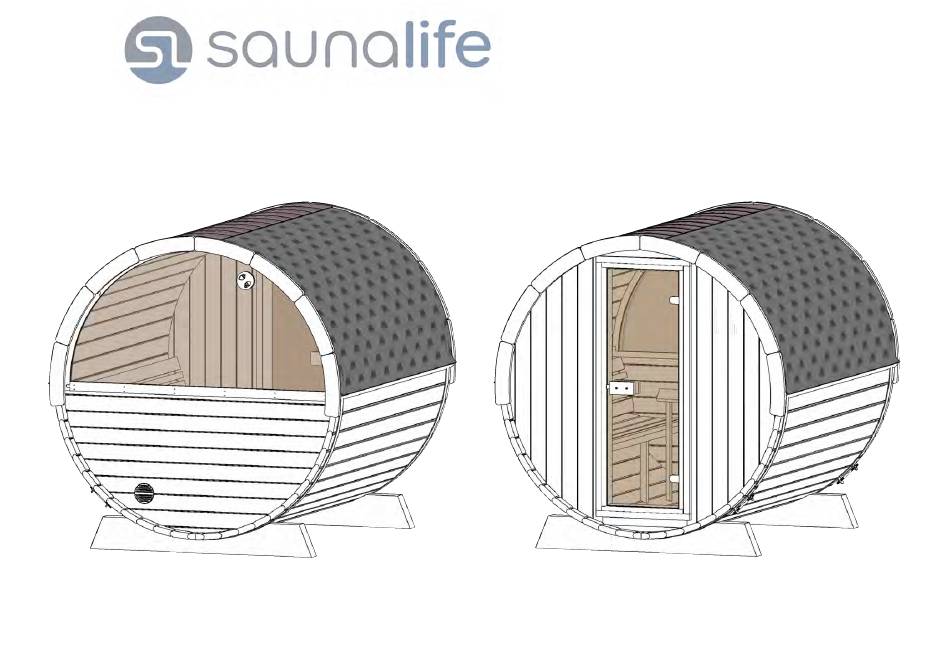

Ergo-Series E8W Barrel Sauna
Half Glass Window 87D" x 81H"
Note: Please read manual before construction
REV: 3.0_02/2025

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ergo Series and is the answer not in the manual?

Questions and answers

Related Manuals for saunalife Ergo Series

Summary of Contents for saunalife Ergo Series

  • Page 1 Ergo-Series E8W Barrel Sauna Half Glass Window 87D" x 81H" Note: Please read manual before construction REV: 3.0_02/2025...
  • Page 2 Ergo-Series E8G Barrel Sauna 87D" x 81H" 78.74" 23.23" 81" 77.17" ~27.17" 20.47" 1370 lbs REV: 3.0_02/2025...

  • Page 3: Tools Needed

    Tools needed Measuring tape Marker pen Circular saw Water level Hammer Screwdriver Extra hands Drill Cresent wrench Utility knife Rubber mallet Ratchet strap...
  • Page 4 Details list 1/3 DET 1 Article. K-PT-JAL-200D DET A Article. K-STL117/2000 DET 2 Article. T-STL117/2200XLM02 DET 3 Article. T-STL117/2200-02 DET 6 Det.2 jääk Article. T-STL117/2200XL-02 DET 6c/d/e/f 1" Lõika 1-st STL-st 1 ³/₁₆" ³/₄" Article. ³/₈" T-STL117/2200KO-02 DET Y1 Article. T-20-PK/28F12 DET Y2 Article.
  • Page 5 Details list 2/3 DET Sa Article. T-20-PES/28-01P DET Sb Article. T-20-PES/28-01V DET U1 Article. K-TL94/1900 DET 10 Article. TL-LAMOD-1991-KA01 DET 14 Article. TL-STMOD-1960-KA01 DET 10a Article. K-HP44/470XP-XP DET 10c Article. K-HP44/170 DET 15a Article. TL-LAV90/670XP DET 15b Article. TL-LAV42/90 DET 15c Article.
  • Page 6 Details list 3/3 DET 15d Article. TL-LAV90/800 DET 22 Article. T-STL-2200-XX DET N Article. KAT-HAR-MUST DET O Article. KAT-SIN-MUST DET 25 Article. MU-OL-SAUN DET W kmpl Article. MU-TRAPP DET B Article. MU-VIT6220-KLZN DET Z Article. MU-VENT-100-VIN DET F Article. MU-VENT-100-ZN Article.
  • Page 7 E8W Barrel Sauna 87D" x 81H" Exterior Top view. Diagonal measurements should be equal DET 1 4x M 2xDET A 4x M DET 1...
  • Page 8 E8W Barrel Sauna 87D" x 81H" 2x DET W 2x M DET 2 Make sure the marking on the DET 1 is centered in the notch. End view. Top view. DET 3 Measurements should be equal...
  • Page 9 E8W Barrel Sauna 87D" x 81H" Use rubber mallet! 16x M...
  • Page 10 E8W Barrel Sauna 87D" x 81H" Half-moon back wall assembly 2x I 1x I Attention! Be extra careful to not hit the glass!!! 6x P...
  • Page 11 E8W Barrel Sauna 87D" x 81H" DET U1 inside Use waterlevel 2x H Make sure the marking on the wall is centered in the notch. ~1/4" IMPORTANT! Be sure to leave a ~1/4”gap when tightening screws to leave room for adjustment when the outer bands (B) are installed.
  • Page 12 E8W Barrel Sauna 87D" x 81H" Use DET 3 to support walls Use waterlevel Make sure the door opens outwards. Make sure the marking on the wall is centered in the notch. Braces inside 4x H 2x M 2xDET 3 4x I Fix temporarily to support walls.
  • Page 13 E8W Barrel Sauna 87D" x 81H" Remove DET 3 from their temporary positions and use during the next step. Use rubber mallet! ~1/4 Important! Leave space IMPORTANT! Be sure to leave a 1/4” gap when tightening screws to leave room for adjustment when the outer bands (B) are installed.
  • Page 14 E8W Barrel Sauna 87D" x 81H" DET 6/6c If needed, trim the flat edge of the board to create the desired width. Join boards together (as shown in diagram III) that will bridge the width of the "A" gap. It is recommended that the combined boards are approximately 1/4"...
  • Page 15 E8W Barrel Sauna 87D" x 81H" Attention! Tighten Remove all nuts securely! strap 2x DET B Place the bands around the barrel on the outer side of the cradle. Remove all temporary braces Use screws provided with diffuser kit. 1x DET Z Upper vent Outside view.
  • Page 16 E8W Barrel Sauna 87D" x 81H" Interior 2x DET 10a 2x H Pre-drill holes Ø5/32" 2x DET 10...
  • Page 17 E8W Barrel Sauna 87D" x 81H" Fasten all sides in the same way. 20x I Pre-drill holes 3/16" Pre-drill holes Ø5/32" Use level for Attention! installation of benches Leave ~0.2". gap from back of benching 2x H coming into contact with barrel staves! 2x DET 14 Under the benches Pre-drill holes Ø5/32"...
  • Page 18 E8W Barrel Sauna 87D" x 81H" ATTENTION! HEATER GUARD MAY NOT MEET THE SAFETY DISTANCES OF ALL HEATERS AND SHOULD NOT BE USED IF THE HEATER DOES NOT FIT! 2x DET 15a Pre-drill holes ⁵/₃₂" 2x J Pre-drill holes ¹/₈" 2x H 2x DET 15b If Your sauna heater is smaller, You...
  • Page 19 E8W Barrel Sauna 87D" x 81H" " ~39.38 5x H 5x H 2x DET 22 Attention! Refer to shingle Adjust door installation manual provided if needed. in package. DET N End view. End view. Cut and use rest of it ~0.35"...
  • Page 20 E8W Barrel Sauna 87D" x 81H" Attention! Refer to shingle installation Shingles overlap manual provided in package. on top Attention! Refer to shingle installation Refract DET N manual provided in package. into 3 pieces. DET N DET O Cut and use rest of it on the opposite side.

  • Page 21: Installation Instructions

    Ergo-Series E8W Barrel Sauna 87D" x 81H" Installation Instructions When building a wooden product, it is important to follow all installation instructions to ensure the quality and durability is guaranteed. Important! 123456789 Identification number of the Product / Serial Number: Must be accompanied by the serial number to identify the product.
  • Page 22 Ergo-Series E8G Barrel Sauna 87D" x 81H" Door and Window Maintenance • Regular checks: Regularly inspect window and door hinges and locks. Tighten loose components and lubricate as needed. DOOR ADJUSTMENT INSTRUCTIONS • • You will need 3-mm (6) and 5-mm (3) hexagon keys for adjusting the hinges. Remove the plastic covers from the hinges (1).
  • Page 23 Harvia Heater / Stone Chart Sauna Care Guide Surface Preparations: The soil underneath the sauna should be removed and replaced with a well-drained and load bearing material. It is important to ensure that the surface is load bearing. In addition, it is important to limit the growth of flora underneath and around the sauna to minimize any defects from moisture. Bring the power cable to the sauna in accordance with the heater manufacturers’ manual. During sauna use: When using the heater and the control unit refer to the user manual provided by the heaters’...
  • Page 24 SAUNA LIFE SAUNA LIMITED LIFETIME WARRANTY Harvia Heater / Stone Chart Sauna Life extends this Limited Warranty solely to the original retail consumer purchaser of any Sauna Life sauna purchased from one of its authorized resellers. LIMITED LIFETIME SAUNA WARRANTY Sauna Life warrants that the Sauna Life sauna shall be free from defects in workmanship under normal conditions of use and service for the lifetime of the sauna for residential applications after delivery to the original retail purchaser.

This manual is also suitable for:

E8w
