Summary of Contents for Asus SAMRT3000 V5 Q670

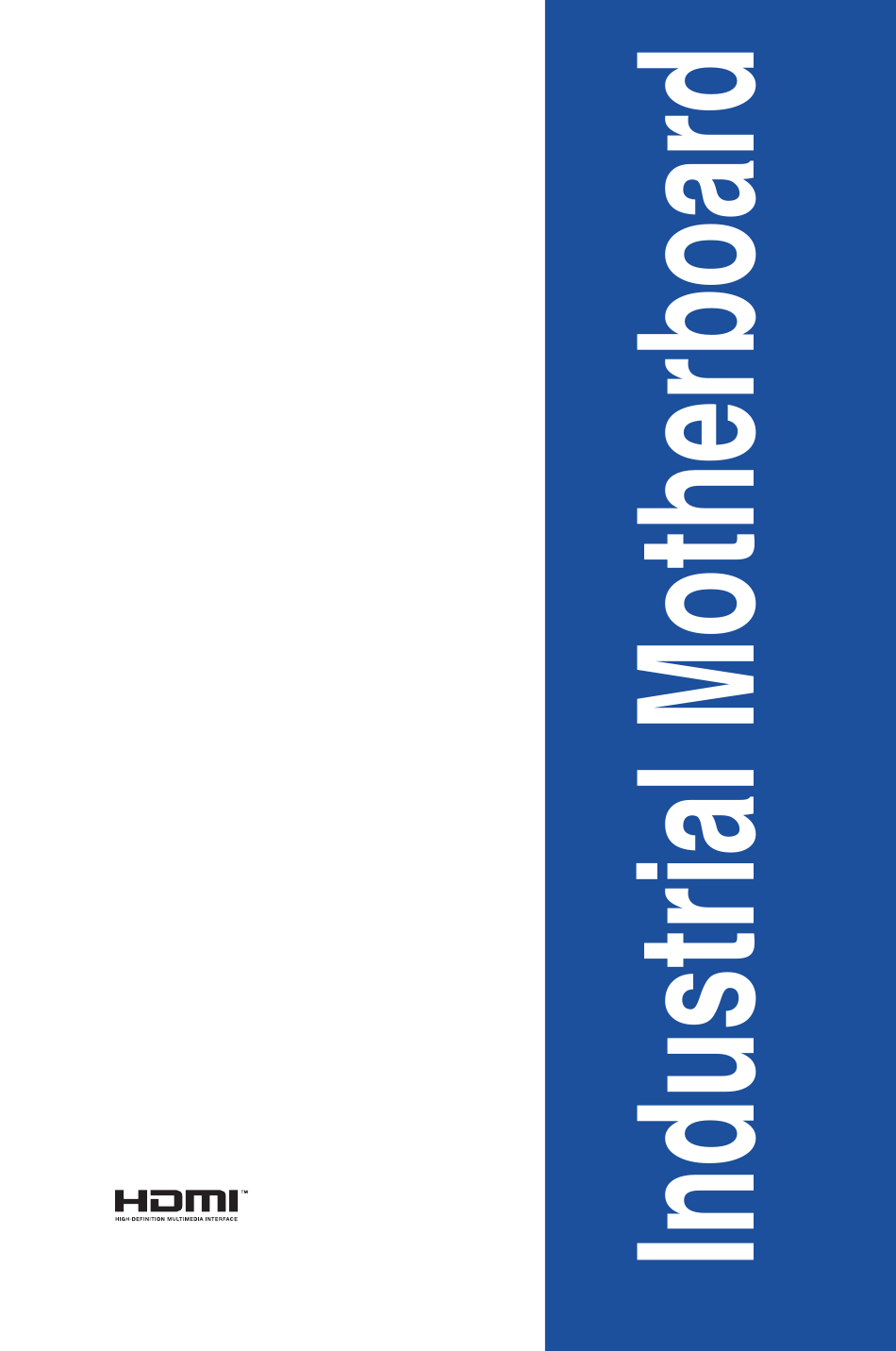

  • Page 1 SAMRT3000 V5 Q670...
  • Page 2 First Edition January 2025...

  • Page 3: Table Of Contents

    Contents Chapter 1 Product overview Features ..................1-1 Specifications ................1-2 Chapter 2 Motherboard information Before you proceed ..............2-1 Motherboard layout ..............2-2 Central Processing Unit (CPU) ........... 2-4 2.3.1 CPU installation .............. 2-5 2.3.2 CPU heatsink and fan assembly installation ....2-7 System memory ................
  • Page 4 3.3.10 Network Stack Configuration .......... 3-9 3.3.11 PCIE Configuration ............3-10 3.3.12 AMT Configuration ............3-11 3.3.13 VMD setup menu ............3-12 3.3.14 IO Expander Configuration ........... 3-12 3.3.15 Tls Auth Configuration ..........3-12 3.3.16 Intel Ethernet Controller I226-V - 00:A0:C9:00:00:00 .. 3-13 ®...

  • Page 5: Product Overview

    Chapter 1 Product overview Features • Intel socket LAG1700 for Intel Core™ i9/ i7/ i5/ i3, Pentium , and ® ® ® Celeron processors; Max. 125W TDP ® • Four Dual Channel DDR4 U-DIMMs up to 128GB • 4 x SATA 6.0 Gb/s ports, 8 x USB 3.2 Gen 1 ports, 6 x USB 2.0 ports, 6 x COM ports •...

  • Page 6: Specifications

    8 x USB 3.2 Gen 1 ports Rear panel I/O ports 2 x LAN (RJ45) ports 1 x COM port (RS232/422/485) 1 x COM port (RS232) 2 x Audio jacks (Line-Out, Mic in) (continued on the next page) SAMRT3000 V5 Q670...
  • Page 7 4 x COM Port headers (1 x RS232/485, 3 x RS232) 2 x USB 2.0 headers support adddtional 4 x USB 2.0 ports 2 x USB 2.0 dongles 1 x CPU Fan header 3 x System Fan headers 1 x PSU Fan header 2 x System Panel headers Internal I/O ports 1 x Clear CMOS header...

  • Page 8: Motherboard Information

    Chapter 2 Motherboard information Before you proceed Take note of the following precautions before you install motherboard components or change any motherboard settings. • Unplug the power cord from the wall socket before touching any component. • Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity.

  • Page 9: Motherboard Layout

    ® ® PCIEX4(G4)_1 I219LM Q670 SATA6G_4 SATA6G_5 PCIEX16(G4) SATA6G_7 SATA6G_6 PCIEX4(G3) 1 10 Super BUZZER 256Mb BIOS 1083 PCIEX4(G4)_2 USB_13 USB_14 CLRTC CHA_FAN1 PCI_2 COM3_485_EN2 F_PANEL2 COM3_RX_SEL COM3 COM4 COM5 COM6 COM3_SEL GPIO_CON USB_910 USB_1112 F_PANEL1 COM3_485_EN1 SAMRT3000 V5 Q670...
  • Page 10 Page Connectors/Jumpers/Slots CPU，PSU, and Chassis Fan headers (4-pin CPU_FAN, 4-pin CHA_FAN1-3, 2-21 4-pin PUS_FAN) ATX Power connectors (24-pin ATX_PWR, 8-pin EATX12V) 2-26 M.2 socket 3 (M.2(SOCKET3)) 2-23 Intel LGA1700 CPU socket ® DDR4 U-DIMM slots Power Management Bus header (5-pin PMBUS) 2-24 Disable ME Update jumper (3-pin DIS_ME) 2-13...

  • Page 11: Central Processing Unit (Cpu)

    Return Merchandise Authorization (RMA) requests only if the motherboard comes with the cap on the socket. • The product warranty does not cover damage to the socket contacts resulting from incorrect CPU installation/removal, or misplacement/loss/ incorrect removal of the PnP cap. SAMRT3000 V5 Q670...

  • Page 12: Cpu Installation

    2.3.1 CPU installation Chapter 2: Motherboard information...
  • Page 13 SAMRT3000 V5 Q670...

  • Page 14: Cpu Heatsink And Fan Assembly Installation

    2.3.2 CPU heatsink and fan assembly installation Apply Thermal Interface Material to the CPU cooling system and CPU before you install the cooling system, if necessary. To install the CPU heatsink and fan assembly Chapter 2: Motherboard information...
  • Page 15 To uninstall the CPU heatsink and fan assembly SAMRT3000 V5 Q670...

  • Page 16: System Memory

    System memory The motherboard comes with Dual Inline Memory Modules (DIMM) slots designed for DDR4 (Double Data Rate 4) memory modules. A DDR4 memory module is notched differently from a DDR, DDR2, or DDR3 module. DO NOT install a DDR, DDR2, or DDR3 memory module to the DDR4 slot.

  • Page 17: Jumpers

    This jumper allows you to enable or disable PCIe SMbus Clock Connection. Set this jumper to pins 1-2 to enable (set to enabled by default) PCIe SMbus Clock Connection and to pins 2-3 to disable it. SMBCLK_SW Eanble PCIe SMBus connection Disable PCIe SMBus connection (Default) SAMRT3000 V5 Q670 2-10...
  • Page 18 COM1/3 Ring/+5V/+12V selection jumpers (6-pin COM1_SEL, COM3_ SEL) These jumpers allow you to select 5V or 12V depending on your COM device. COM1_SEL +12V (Default) COM3_SEL +12V (Default) Setting Pins +12V Ring (Default) HEADER 2x3p, 2.54mm pitch, S/T Connector type Chapter 2: Motherboard information 2-11...
  • Page 19 In AT mode, the board will automatically turn on when system power is connected. AT_ATX_SEL ATX mode AT mode (Default) Pins Description 1-2 (Default) ATX mode AT mode HEADER 1x3p, 2.54mm pitch, S/T Connector type SAMRT3000 V5 Q670 2-12...
  • Page 20 Disable ME jumper (3-pin DIS_ME) This jumper allows you to enable or disable the Intel ME function. Set this ® jumper to pins 1-2 to enable (default) the Intel ME function and to pins 2-3 to ® disable it. HEADER 1x3p, 2.54mm pitch, S/T Connector type Chapter 2: Motherboard information 2-13...
  • Page 21 RS232/RS485 (Default) RS232 (Default) COM1_RX_SEL RS422 RS485 Jumper setting of COM1 should be consistent with the setting of COM1 Control in BIOS. Go to Advance > Serial Port Configuration > COM1 Configuration > COM1 Control in BIOS. SAMRT3000 V5 Q670 2-14...
  • Page 22 COM3 mode selection jumpers COM3_RX_SEL RS232 RS485 (Default) Jumper Setting Pins RS232 (Default) COM3_RX_SEL RS485 RS485 COM3_485_EN1-2 RS232 (Default) Jumper setting of COM3 should be consistent with the setting of COM3 Control in BIOS. Go to Advance > Serial Port Configuration > COM3 Configuration >...
  • Page 23 Hold down the <Del> key during the boot process and enter BIOS Setup to re-enter data. If the steps above do not help, remove the onboard battery and move the jumper again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery. SAMRT3000 V5 Q670 2-16...

  • Page 24: Connectors

    Connectors 2.6.1 Rear panel connectors Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other VGA-compatible devices. Serial port (COM1). The port connects a modem or other devices that conform with serial specification. The COM supports RS-485 / RS-422 / RS-232.
  • Page 25 Activity/Link LED Speed LED Status Description Status Description No link 10Mbps/100Mbps connection Green Linked ORANGE 1Gbps connection Green (Blinking) Data activity LAN port GREEN 2.5Gbps Green (Blinking Ready to wake connection then steady) up from S5 mode SAMRT3000 V5 Q670 2-18...
  • Page 26 LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN) through a network hub. LAN port LED indications Activity/Link LED Speed LED ACT/LINK SPEED Status Description Status Description No link 10Mbps connection Orange Linked ORANGE 100Mbps Orange (Blinking) Data activity LAN port...

  • Page 27: Internal Connectors

    PIN 2 PIN 10 PIN 1 PIN 1 Header 2x5p, K9, 2.54mm pitch Connector type Never connect a 1394 cable to the USB connector. Doing so will damage the motherboard. The USB cable is purchased separately. SAMRT3000 V5 Q670 2-20...
  • Page 28 General Purpose Input/Output connector (10-pin GPIO_CON) This connector is for a general purpose input/output module which allows you to customize the digital signal input/output. PIN 10 PIN 2 GPIO_CON PIN 9 PIN 1 WAFER HD 2x5p, 2.0mm pitch, S/T Connector type SPI TPM header (14-1 pin TPM) This header supports a Trusted Platform Module (TPM) system with a Serial Peripheral Interface (SPI), allowing you to securely store keys, digital...
  • Page 29 Do not forget to connect the fan cables to the fan headers. Insufficient air flow inside the system may damage the motherboard components. These are not jumpers! Do not place jumper caps on the fan headers! SAMRT3000 V5 Q670 2-22...
  • Page 30 System Panel headers (10-1 pin F_PANEL 1/2) These headers support several chassis-mounted functions. +PWR_LED PWR_BTN +PWR_LED PWR_BTN PIN 2 PIN 2 F_PANEL2 F_PANEL1 PIN 1 PIN 9 PIN 1 PIN 9 +HDD_LED RESET +HDD_LED RESET Connector type Header 2x5p, K10, 2.54mm pitch •...
  • Page 31 WAFER HD 7p, 1.27mm pitch Connector type M.2 socket 3 (M.2(SOCKET3)) This socket allows you to install an M.2 SSD module. M.2(SOCKET3) • The M.2 SSD module is purchased separately. • This socket supports M Key and 2242/2260/2280 storage devices. SAMRT3000 V5 Q670 2-24...
  • Page 32 Serial Port connectors (10-1 pin COM3-6) These connectors are for serial (COM) ports. Connect the serial port cables to these connectors, then install the module to a slot opening at the back of the system chassis. PIN 2 COM3 PIN 1 PIN 9 COM4 PIN 2...
  • Page 33 10. COM Debug header The header allows you to connect a COM debug card. COM_DEBUG PIN 1 SAMRT3000 V5 Q670 2-26...
  • Page 34 11. ATX Power connectors (24-pin ATX_PWR, 8-pin EATX12V) Correctly orient the ATX power supply plugs into these connectors and push down firmly until the connectors completely fit. EATX12V ATX_PWR +3 Volts +12 Volts +5 Volts PIN 1 +5 Volts +12 Volts +5V Standby +5 Volts Power OK...

  • Page 35: Slots

    This motherboard supports two PCIe x16 graphics cards that comply with the PCI Express specification. PCIEX16(G5) PCIEX16(G4) PCI Express x4 slots This motherboard supports three PCIe x4 network cards, SCSI cards and other cards that comply with the PCI Express specification. PCIEX4(G4)_1 PCIEX4(G3) PCIEX4(G4)_2 SAMRT3000 V5 Q670 2-28...
  • Page 36 PCI slots The PCI slots support cards such as LAN cards, SCSI cards, USB cards, and other cards that comply with PCI specifications. PCI Specification: Rev.3.0; Support 3.3V,5V,12V,-12V PCI_1 PCI_2 Chapter 2: Motherboard information 2-29...

  • Page 37: Bios Setup

    Chapter 3 BIOS setup BIOS Setup program Use the BIOS Setup program to configure its parameters. The BIOS screens include navigation keys and brief online help to guide you in using the BIOS Setup program. Entering BIOS Setup at startup To enter BIOS Setup at startup: Press <Delete>...

  • Page 38: Main Menu

    The items in this menu show CPU-related information the BIOS automatically detects. Intel (VMX) Virtualization Technolog This item, when set to [enabled], will allow a VMM to utilize the additional hardware capacities provided by Vanderpool Technology. Configuration options: [Disabled] [Enabled] SAMRT3000 V5 Q670...
  • Page 39 Hyper-Threading Allows you to enable or disable Hyper-Threading Technology. Configuration options: [Disabled] [Enabled] Active Processor Cores Allows you to select the number of CPU cores to activate in each processor package. Configuration options: [All] [7] [6] [5] [4] [3] [2] [1] Set Active Processpr Cores to [All] before replacing the CPU.

  • Page 40: Chipset Configuration

    Allows you to control detection of the HD-Audio device. Configuration options: [Enabled] [Disabled] [Enabled] Enables the HD Audio Device unconditionally. [Disabled] Disables the HD Audio Device unconditionally. High Precision Timer Allows you to enable or disable the High Precision Event Timer. Configuration options: [Disabled] [Enabled] SAMRT3000 V5 Q670...

  • Page 41: Sata Configuration

    3.3.3 SATA Configuration This item allows you to configure SATA device options settings. SATA MODE Allows you to determine how SATA controller(s) operate. Configuration options: [AHCI] SATA6G_ 4(~7) Port 4(~7) Allows you to enable or disable SATA Port. Configuration options: [Disabled] [Enabled] Hot Plug Allows you to designate this port as Hot Pluggable.

  • Page 42: Acpi Settings

    Allows you to enable or disable the system to resume from S5 via a USB device. Configuration options: [Disabled] [Enabled] Enable Hibernation Enables or disables system ability to Hibernate (0S/S4 Sleep State). This option may not be effective with some operating systems. Configuration options: [Disabled] [Enabled] SAMRT3000 V5 Q670...

  • Page 43: Serial Port Configuration

    3.3.6 Serial Port Configuration Serial Port 1 Configuration This item allows you to set parameters of Serial Port 1 (COMA). Serial Port Allows you to enable or disable the serial port (COM). Configuration options: [Disabled] [Enabled] Change Settings Allows you to select an optimal settings for Supper IO Device. Configuration options: [Auto] [IO=3F8h;...
  • Page 44 5, 6, 7, 9, 10, 11, 12;] [IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;] [IO=220h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;] [IO=228h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;] SAMRT3000 V5 Q670...

  • Page 45: Detection Configuration

    3.3.7 M.2 Detection Configuration This item allows you to configure M.2 device option settings. M.2 (Socket3) (PCIE x4 MODE) Allows you to enable or disable the M.2 (socket 3) (PCIE x4 mode) slot. Configuration options: [Disabled] [Enabled] 3.3.8 NVMe Configuration The NVMe Configuration menu displays the NVMe controller and drive information of the devices connected and allows you to configure NVMe device options settings.

  • Page 46: Pcie Configuration

    Allows you to configure PCIEX4 (G3) speed. Configuration options: [Auto] [Gen1] [Gen2] [Gen3] PCIEX4 (G4)_1 Allows you to enable or disable PCIEX4 (G4)_1. Configuration options: [Disabled] [Enabled] PCIEX4 (G4)_1 speed Allows you to configure PCIEX4 (G4)_1 speed. Configuration options: [Auto] [Gen1] [Gen2] [Gen3] [Gen4] SAMRT3000 V5 Q670 3-10...

  • Page 47: Amt Configuration

    PCIEX4 (G4)_2 Allows you to enable or disable PCIEX4 (G4)_2. Configuration options: [Disabled] [Enabled] PCIEX4 (G4)_2 speed Allows you to configure PCIEX4 (G4)_2 speed. Configuration options: [Auto] [Gen1] [Gen2] [Gen3] [Gen4] PCIEX16 (G4) Allows you to enable or disable PCIEX16 (G4). Configuration options: [Disabled] [Enabled] PCIEX16 (G4) speed Allows you to configure PCIEX16(G4) speed.

  • Page 48: Vmd Setup Menu

    Enroll Cert Allows you to enroll a certificate using a certificate file or manually input a certificate GUID. Enroll Cert Using File Allows you to enroll a certificate using a certificate file. You will be prompted SAMRT3000 V5 Q670 3-12...

  • Page 49: Intel ® Ethernet Controller I226-V - 00:A0:C9:00:00:00

    to select a storage device and navigate to the location of the certificate file. Cert GUID Allows you to enroll a certificate by manually inputting the certificate GUID. Commit Changes and Exit Exit Server CA configuration after saving the changes. Discard Changes and Exit Exit Server CA configuration without saving any changes.

  • Page 50: Mac: 00A0C9000000-Http Boot Configuration

    New IPv6 Address Allows you to enter new IPv6 addresses. Separate the IP addresses with blank space to configure more than one address. New Gateway addresses Allows you to new Gateway addresses. Separate the IP addresses with blank SAMRT3000 V5 Q670 3-14...

  • Page 51: Intel ® Ethernet Connection (17) I219

    space to configure more than one address. New DNS addresses Allows you to new DNS addresses. Separate the IP addresses with blank space to configure more than one address. Commit Changes and Exit Exit Advanced configuration after saving the changes. Discard Changes and Exit Exit Advenced configuration without saving any changes.

  • Page 52: Mac: 888888888788-Http Boot Configuration

    Allows you to new Gateway addresses. Separate the IP addresses with blank space to configure more than one address. New DNS addresses Allows you to new DNS addresses. Separate the IP addresses with blank space to configure more than one address. SAMRT3000 V5 Q670 3-16...

  • Page 53: Hardware Monitor Menu

    Commit Changes and Exit Exit Advanced configuration after saving the changes. Discard Changes and Exit Exit Advenced configuration without saving any changes. Save Changes and Exit Exit IPV6 network configuration after saving the changes. Hardware Monitor menu The Hardware Monitor menu displays the system temperatures, fan and power status, and allows you to configure the fan.

  • Page 54: User Password

    Trusted Computing Security Device Support Allows you to enable or disable the BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available. Configuration options: [Disabled] [Enabled] SAMRT3000 V5 Q670 3-18...

  • Page 55: Secure Boot

    3.5.4 Secure Boot Secure Boot feature is active when Secure Boot is set to [Enabled], Platform Key (PK) is enrolled and the system is running in User mode. Changing the mode requires platform reset. Configuration options: [Disabled] [Enabled] Secure Boot Mode Allows you to select Secure Boot Mode.
  • Page 56 FIXED BOOT ORDER Priorities Boot Option #1(~4) Allows you to set the system boot order. Configuration options: [UEFI Hard Disk] [UEFI USB Device] [UEFI Network: UEFI: HTTP IPv4 Intel (R) Ethernet Controller I226-V] [UEFI CD/DVD] [Disabled] SAMRT3000 V5 Q670 3-20...

  • Page 57: Save & Exit Menu

    UEFI NETWORK Drives BBS Priorities Boot Option #1(~8) Allows you to set the system boot order. Configuration options: [UEFI: HTTP IPv4 Intel (R) Ethernet Controller I226-V] [UEFI: PXE IPv4 Intel (R) Ethernet Controller I226-V] [UEFI: HTTP IPv4 Intel (R) Ethernet Connection (17) I219-LM] [UEFI: PXE IPv4 Intel (R) Ethernet Connection (17) I219-LM] [UEFI: PXE IPv6 Intel (R) Ethernet Controller I226-V] [UEFI: PXE IPv6 Intel (R) Ethernet Connection (17) I219-LM]...
