2.6.2

Internal connectors

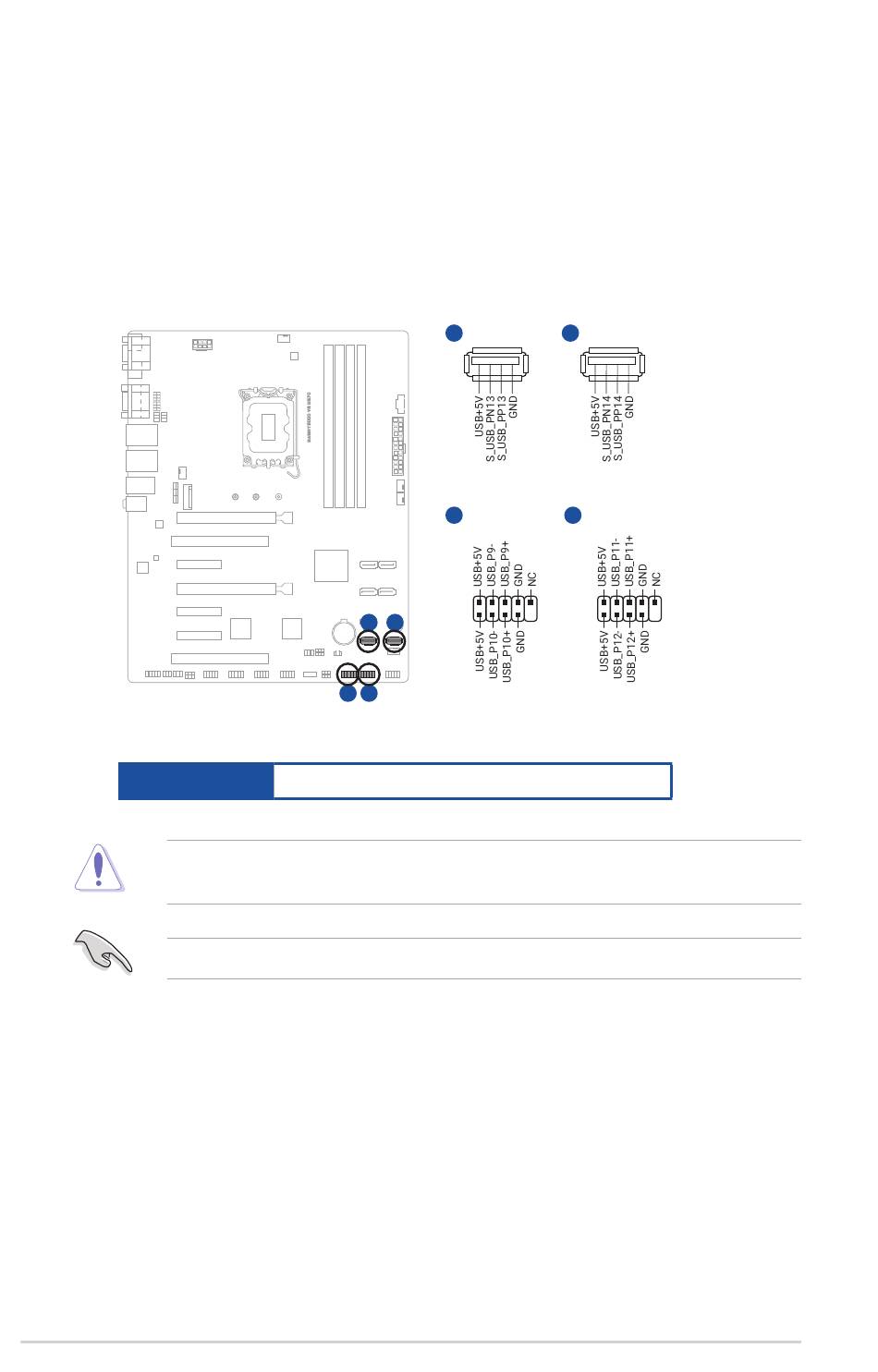

1. USB 2.0 connectors/ headers (4-pin USB_13, USB_14; 10-1 pin USB910,
USB1112)
These connectors/ headers are for USB 2.0 ports. Connect the USB cable to
any of these connectors/headers. These USB connectors/ headers comply
with USB 2.0 specification that supports up to 480 Mbps connection speed.
Connector type
Never connect a 1394 cable to the USB connector. Doing so will damage the
motherboard.
The USB cable is purchased separately.
2-20
A
C
A B
C D
Header 2x5p, K9, 2.54mm pitch
USB13 USB14
B
PIN 1 PIN 1
USB_910 USB_1112
D
PIN 2 PIN 10 PIN 2
PIN 1 PIN 1
SAMRT3000 V5 Q670
PIN 10
