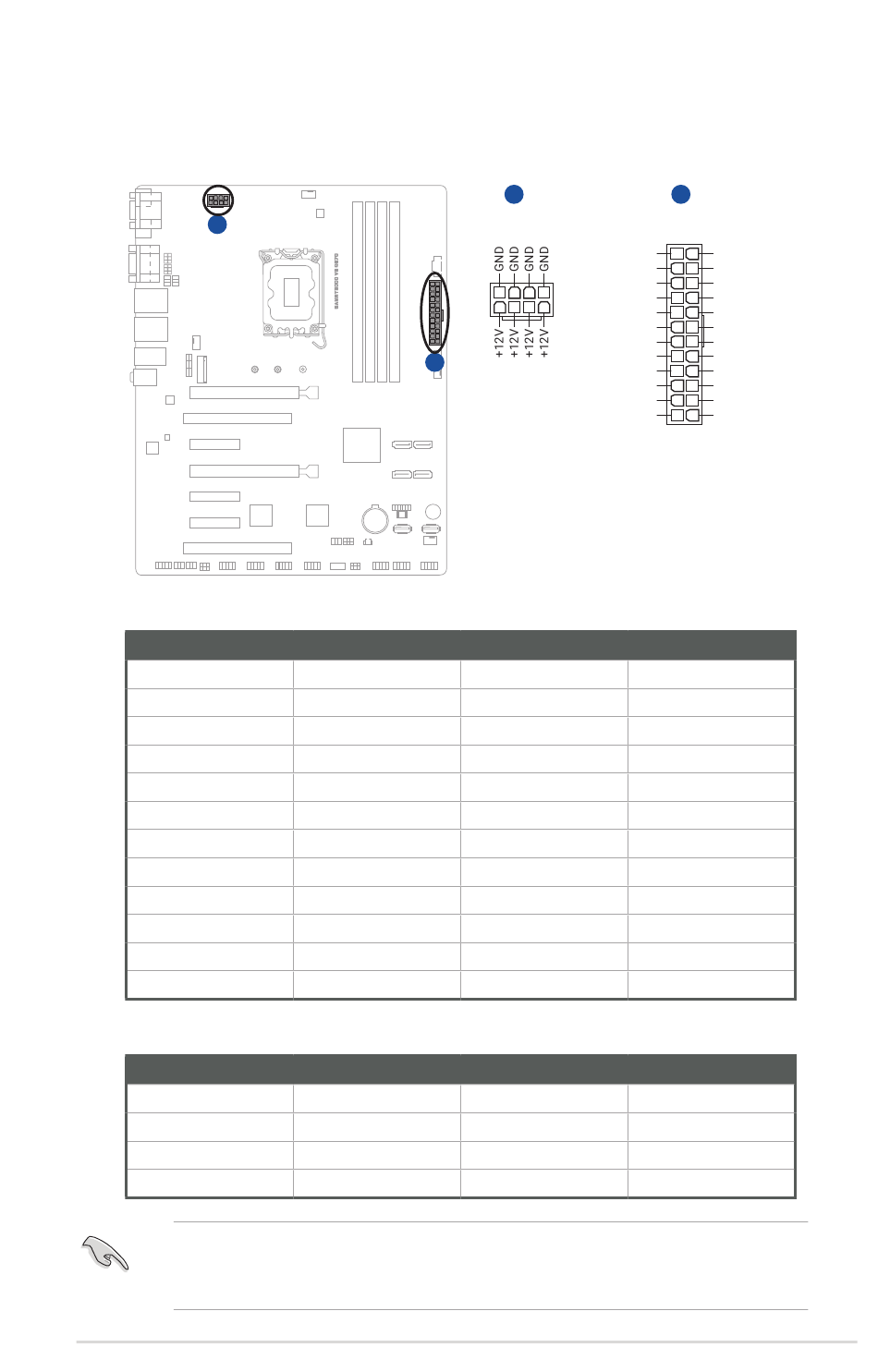

11. ATX Power connectors (24-pin ATX_PWR, 8-pin EATX12V)
Correctly orient the ATX power supply plugs into these connectors and push
down firmly until the connectors completely fit.
A
DC Mode ATXPWR
Pins
1
2
3
4
5
6
7
8
9
10
11
12
DC Mode EATX12V
Pins
1
2
3
4
We recommend that you use a PSU with a higher power output when
configuring a system with more power-consuming components. The system
may become unstable or may not boot up if the power is inadequate.
Chapter 2: Motherboard information
B
Signal
+3.3V out
+3.3V out
GND
+5V out
GND
+5V out
GND
NC
NC
+12V in
+12V in
+3.3V out
Signal
GND
GND
GND
GND
A
EATX12V
+3 Volts
+12 Volts
PIN 1
+12 Volts
+5V Standby
Power OK
GND
+5 Volts
GND
+5 Volts
GND
+3 Volts
+3 Volts
Pins
13
14
15
16
17
18
19
20
21
22
23
24
Pins
5
6
7
8
B
ATX_PWR
GND
+5 Volts
+5 Volts
+5 Volts
floating
GND
GND
GND
PSON#
GND
-12 Volts
+3 Volts
PIN 1
Signal
+3.3V out
NC
GND
PSON#
GND
GND
GND
+12V out
+5V out
+5V out
+5V out
GND
Signal
+12V in
+12V in
+12V in
+12V in
