System Panel headers (10-1 pin F_PANEL 1/2)
These headers support several chassis-mounted functions.
A
Connector type
System power LED (2-pin PLED)
This 2-pin header is for the system power LED. Connect the chassis power
LED cable to this header. The system power LED lights up when you turn on
the system power, and blinks when the system is in sleep mode.
Hard disk drive activity LED (2-pin HDD_LED)
This 2-pin header is for the HDD Activity LED. Connect the HDD Activity LED
cable to this header. The IDE LED lights up or flashes when data is read from
or written to the HDD.
ATX power button/soft-off button (2-pin PWR_BTN#_PANEL)
This 2-pin header is for the system power button.
Reset button (2-pin O_RSTCON#_PR)
This 2-pin header is for the chassis-mounted reset button for system reboot
without turning off the system power.

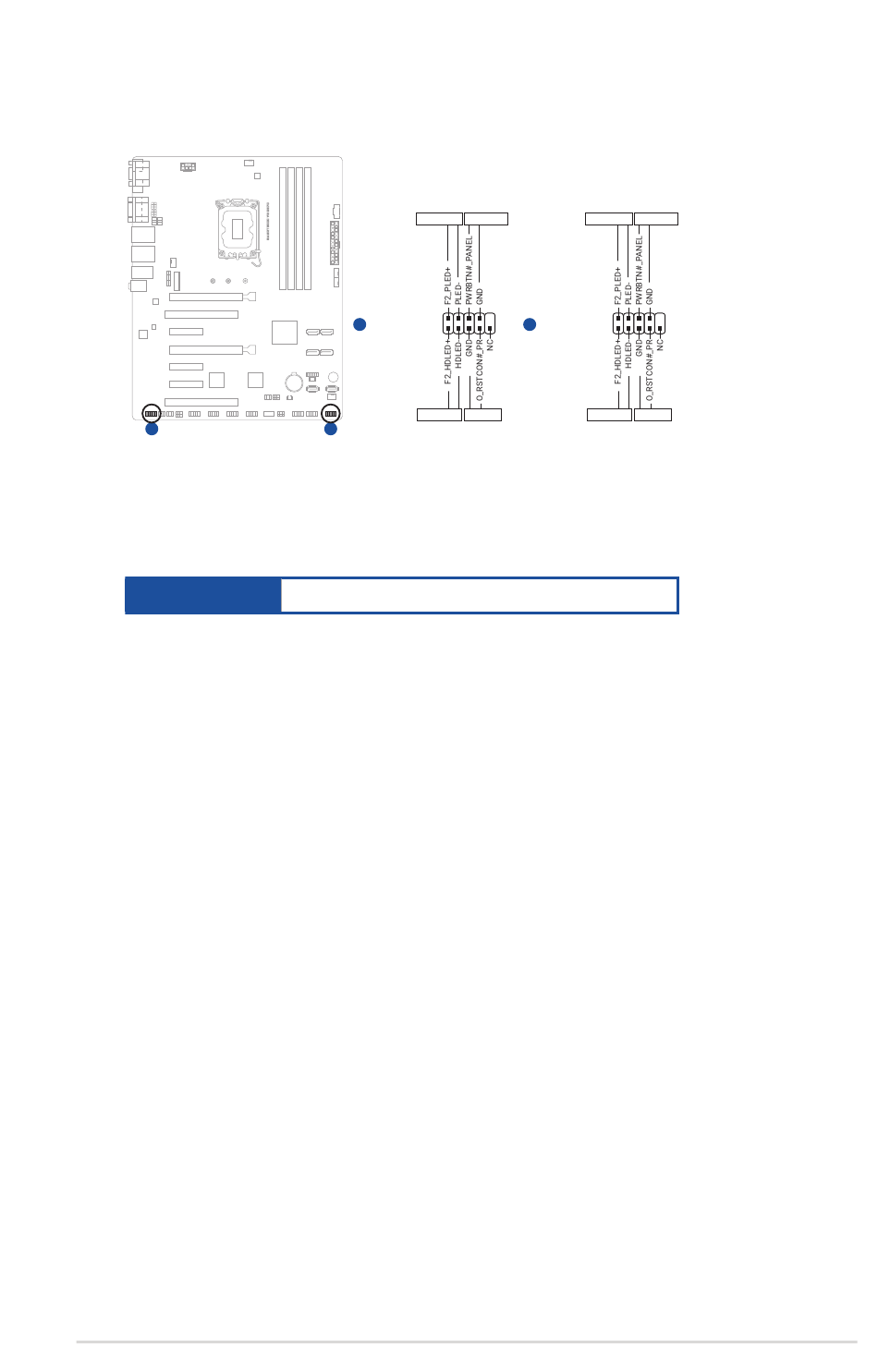

Chapter 2: Motherboard information
+PWR_LED
PIN 2
F_PANEL2
A
PIN 1
+HDD_LED
B
Header 2x5p, K10, 2.54mm pitch
PWR_BTN
+PWR_LED
PIN 2
F_PANEL1
B
PIN 9
PIN 1
RESET
+HDD_LED
PWR_BTN
PIN 9
RESET
