4. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area
Network (LAN) through a network hub.

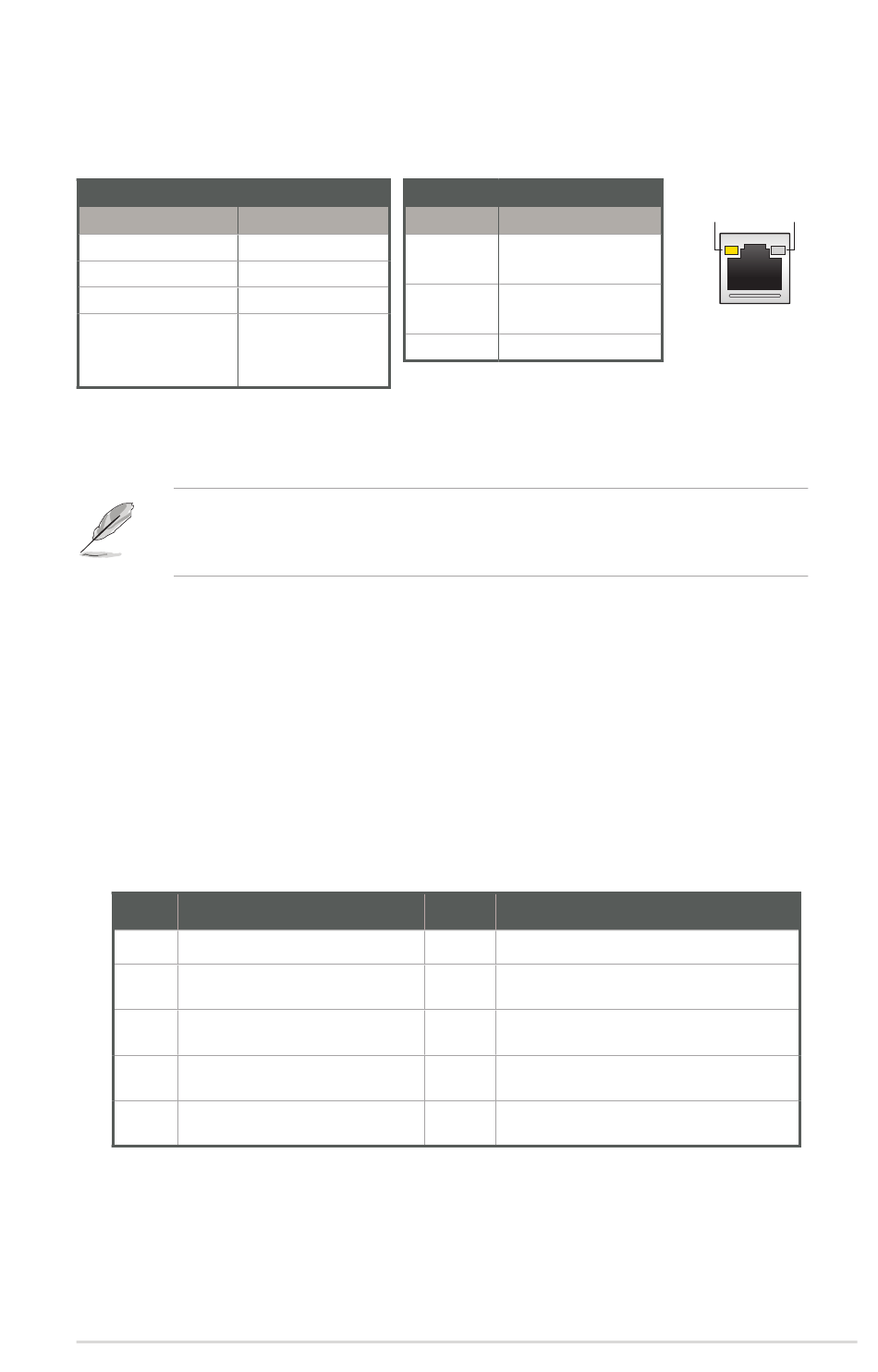

LAN port LED indications
Activity/Link LED
Status
Off
Orange
Orange (Blinking)
Orange (Blinking
then steady)
5. USB 3.2 Gen 1 (up to 5Gbps) ports (blue, Type-A). These Universal Serial
Bus (USB) ports are for USB 3.2 Gen 1 devices.
We strongly recommend that you connect USB 3.2 Gen 1 devices to USB
3.2 Gen 1 ports for faster and better performance from your USB 3.2 Gen 1
devices.
6. Line Out port (lime). This port connects to a headphone or a speaker. In
the 4 and 5.1 channel configurations, the function of this port becomes Front
Speaker Out.
7. DisplayPort. These ports are for DisplayPort-compatible devices.
8. HDMI™ port. These ports are for a High-Definition Multimedia Interface
(HDMI™) connector, and are HDCP compliant allowing playback of HD DVD,
Blu-ray, and other protected content.
9. Serial port (COM2). The port connects a modem or other devices that
conform with serial specification. The COM supports
Pin Signal
1 DCD
3 TXD
5 GND
7 RTS
9 RI
10. Microphone port (pink). This port connects a microphone.
Chapter 2: Motherboard information
Speed LED
Description Status
No link OFF
Linked
ORANGE 100Mbps
Data activity
Ready to wake
GREEN
up from S5
mode
Description
10Mbps
connection
connection
1Gbps connection
RS-232.
Pin Signal
2 RXD
4 DTR
6 DSR
8 CTS
ACT/LINK SPEED
LED LED
LAN port
2-19
