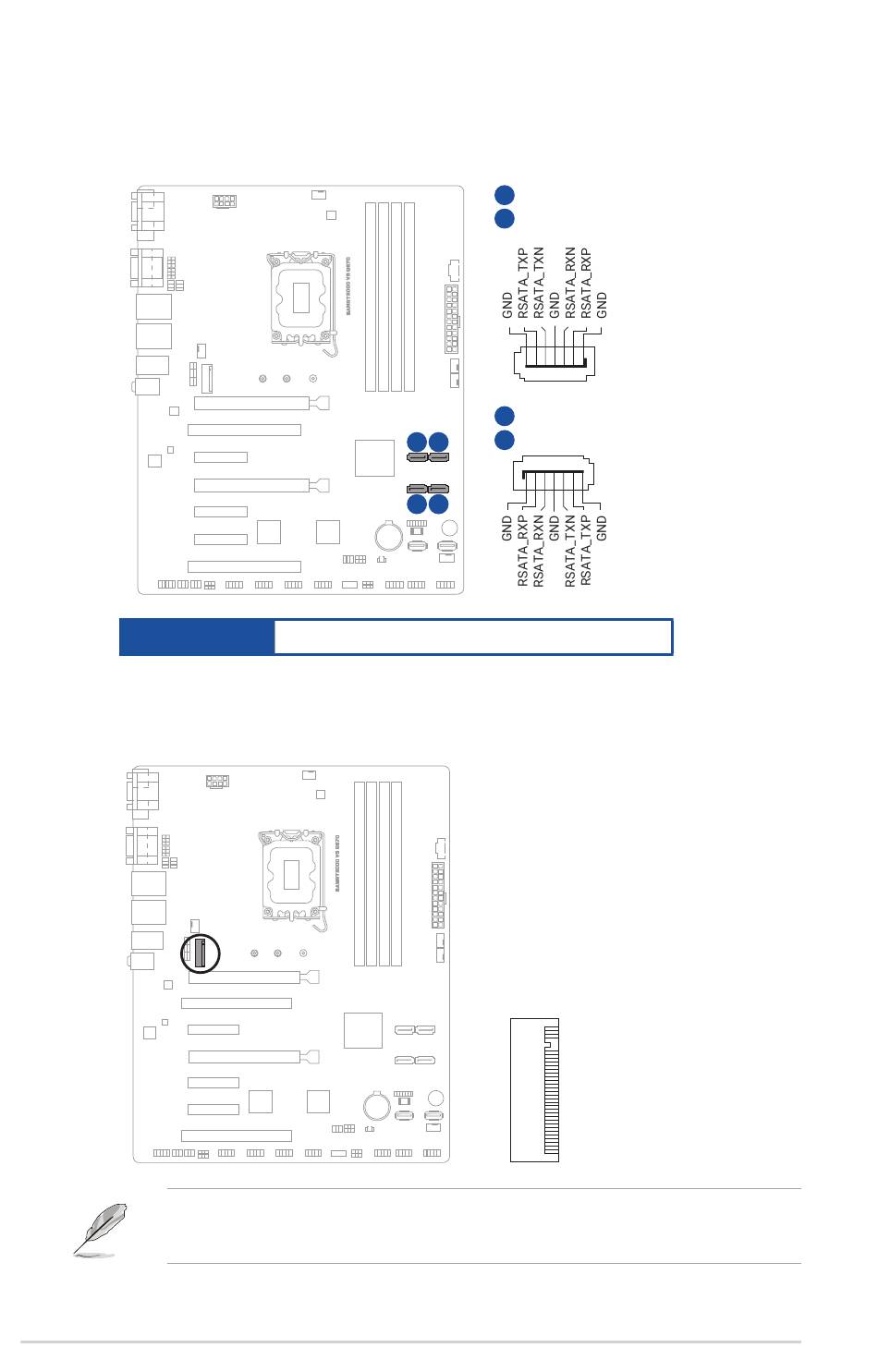

6. SATA 6.0Gb/s ports (7-pin SATA6G_4-7)
These ports connect to Serial ATA 6.0 Gb/s hard disk drives or an optical
drive via Serial ATA 6.0 Gb/s signal cables.
Connector type
7. M.2 socket 3 (M.2(SOCKET3))
This socket allows you to install an M.2 SSD module.
•
•
2-24
WAFER HD 7p, 1.27mm pitch
The M.2 SSD module is purchased separately.
This socket supports M Key and 2242/2260/2280 storage devices.
SATA6G_4
A
SATA6G_5
B
SATA6G_7
C
SATA6G_6
D
A B
C D
M.2(SOCKET3)
