Asus SAMRT3000 V5 Q670 Manual page 19
Industrial motherboard
Table of Contents
4.

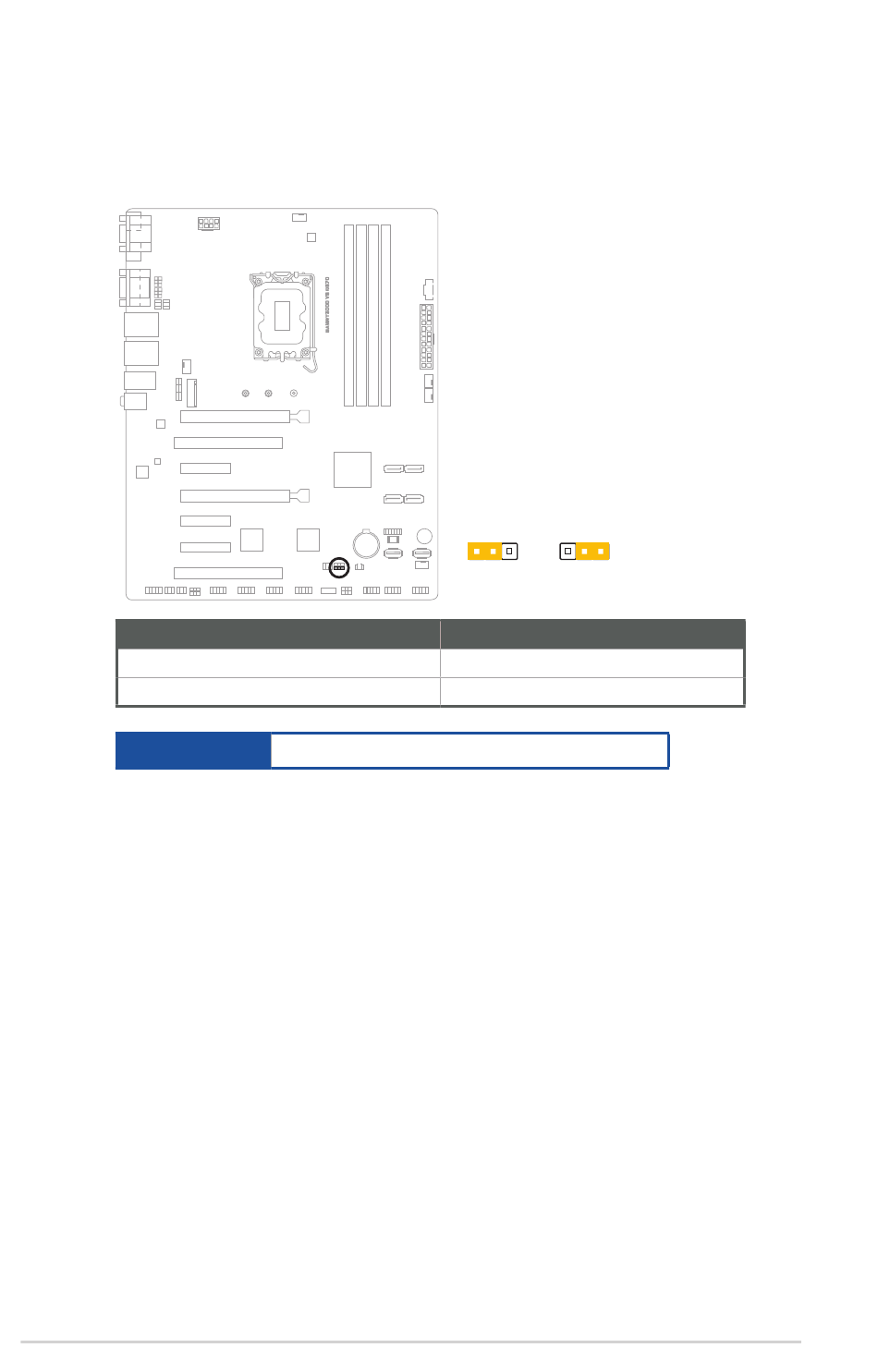

AT/ATX mode selection jumper (3-pin AT_ATX_SEL)
In ATX mode (default), you will need to manually press the power button to
turn on the system power. In AT mode, the board will automatically turn on
when system power is connected.
Pins
1-2 (Default)
2-3
Connector type
2-12
HEADER 1x3p, 2.54mm pitch, S/T
AT_ATX_SEL
1
2
2 3
ATX mode
AT mode
(Default)
Description
ATX mode
AT mode
SAMRT3000 V5 Q670
