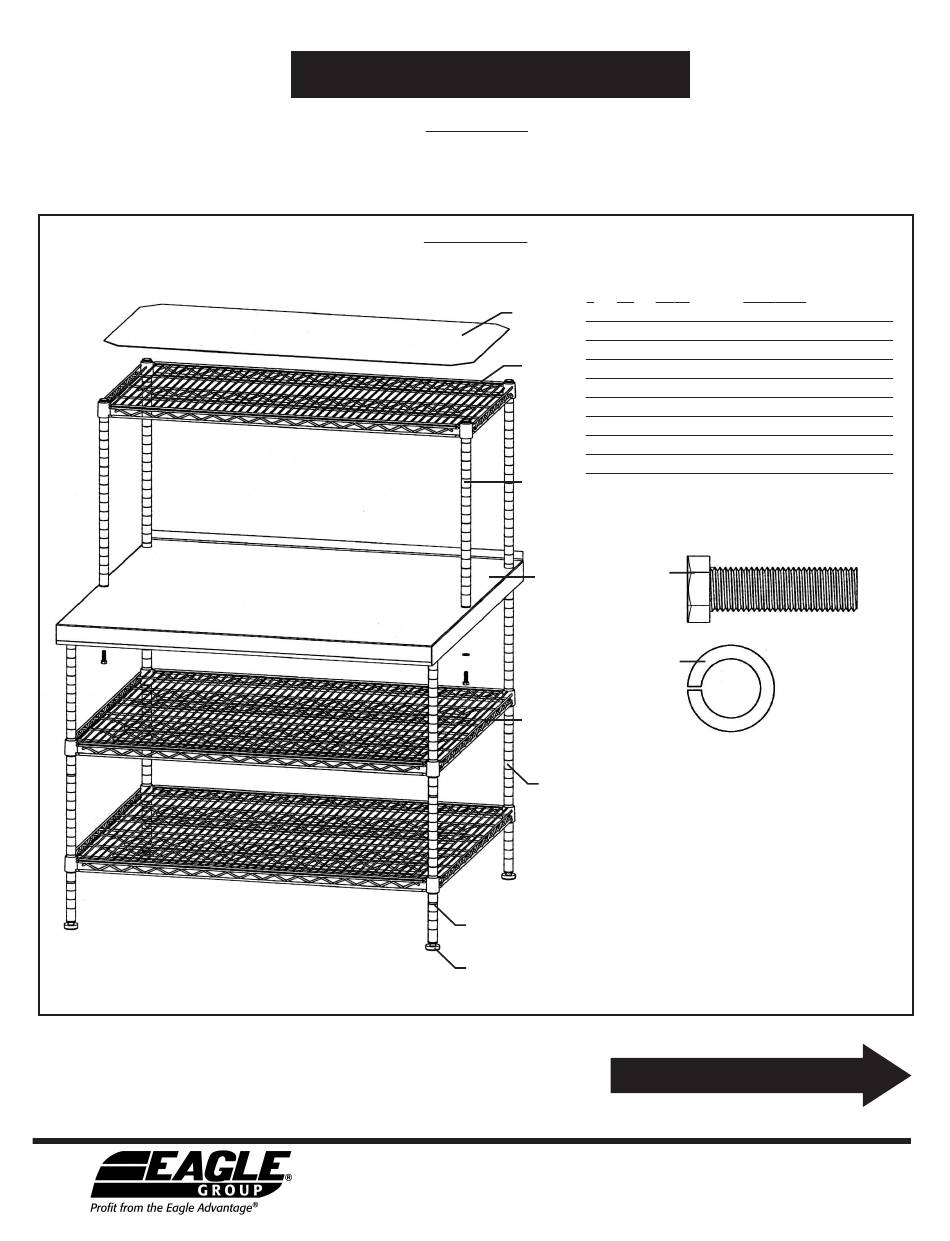

#YBM-MS4242-002-00 Microwave Shelving Unit
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING CARRIER FOR ANY DAMAGE.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
Eagle Foodservice Equipment, Eagle MHC, SpecFAB, and Retail Display are divisions of Eagle Group. ©2005 by the Eagle Group
ASSEMBLY INSTRUCTIONS
CAUTION
SAVE YOUR BOX AND ALL PACKING MATERIALS.
Parts List
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A. • www.eaglegrp.com
• Phone: 302/653-3000 • (Foodservice) 800/441-8440 • (MHC/Retail) 800/637-5100
• Fax: 302/653-2065 or 302/653-3036
#
qty
#1
#1
1
#2
1
#3
2
#2
#4
1
#5
2
#6
2
#7
2
#8
4
#9
2
#3
#10
2
#9
#4
#10
#5
#6
#7
#8
part #
description
YJX2391-50
stainless steel shelf inlay
2142V
wire overshelf
OSP21-V
21˝ post
YAX1330-2
tabletop
3642V
wire shelf
P55-V
55˝ post
P34-V
34˝ post
200024
foot slide
303999
3/8-16 x 1 1/4˝ bolt
300964
1/2˝ lock washer
(actual size of hardware)
Required:
• rubber mallet
• piece of wood board
• 9/16˝ wrench
(continued on Page 2)
EG10045
Revised 12/05
