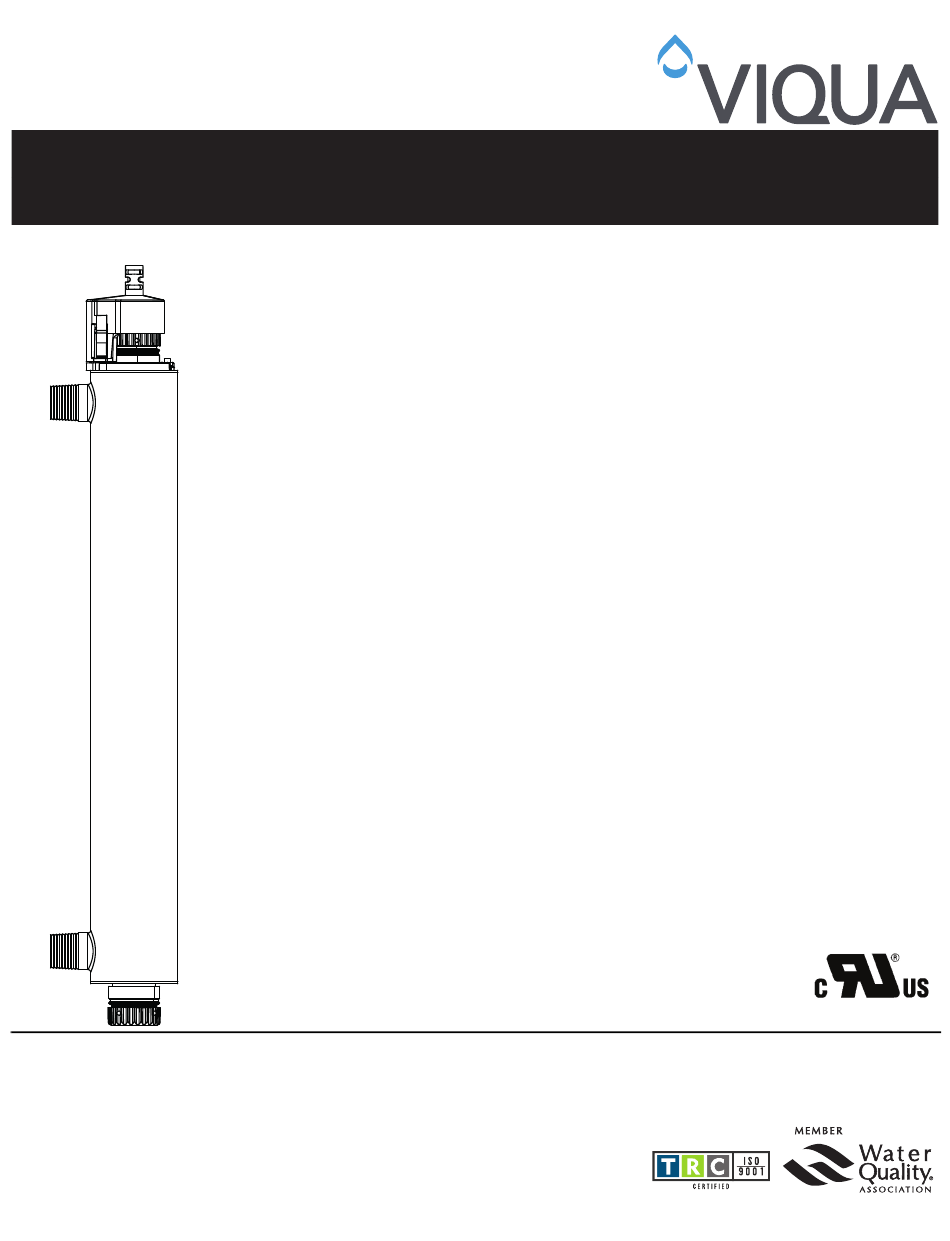

- Page 1 Owner’s Manual Models: VT1/24, VT4/24, S5Q-P/24, S8Q-P/24 425 Clair Rd. W, Guelph, Ontario, Canada N1L 1R1 t. (+1) 519.763.1032 • tf. (+1) 800.265.7246 (US and Canada only) t. (+31) 73 747 0144 (Europe only) • f. (+1) 519.763.5069 e-mail: info@viqua.com www.viqua.com...
- Page 2 • VIQUA replacement lamps undergo rigorous performance testing and strict quality control processes to ensure that the safety and performance certifications of the original equipment are not compromised. So, you can see that it's simply not worth the risk! Insist on genuine VIQUA replacement lamps.
-
Page 3: Safety Information
Safety Information Section 1 Safety Information These are the original instructions. Please read this entire manual before operating this equipment. Pay attention to all danger, warning, and caution statements in this manual. Failure to do so could result in serious personal injury or damage to the equipment. -
Page 4: Water Chemistry
Safety Information WA R N I N G • During extended periods of no water flow, the water in your chamber can become very hot (Approx. 60 °C) and potentially lead to scalding. It is recommended to run your water until this hot water has been purged from your chamber. Do not allow water to contact your skin during this time. To eliminate this condition, a temperature management valve can be installed at the outlet of your UV system. -
Page 5: General Information
Used on all systems Spring SP008 Used on all systems Chamber Used on all systems Connector base 270276 Used on all systems QS-212 VT1/24 QS-330 VT4/24 Open-Ended 214 fused quartz sleeves with fire polished ends QS-463 S5Q-P/24 QS-810 S8Q-P/24 O-ring 410867-R... - Page 6 Installation of UV System Section 3 Installation of UV System C A U T I O N Electronic controller must be connected to a Ground Fault Protected Circuit (GFCI) receptacle. Ensure green ground wire ring terminal is securely fastened to ground stud on UV chamber. Due to thermal expansion concerns and potential material degradation due to UV exposure, it is recommended to use metal fittings and at least 10"...
-
Page 7: Power Installation
Maintenance 4. Prior to connecting the power source, check all connections to ensure that they are indeed secure, turn on water supply and check for any leaks. If satisfied that there are no leaks, proceed with the following steps. 5. Attach the lamp connector to the UV lamp, slide the connector over the retaining nut. Notes: 1) If ballast enters alarm condition, power must be removed for 30 seconds to allow ballast to reset. - Page 8 Maintenance click • Insert the new lamp fully into • Attach the connector to the • Push the lamp connector the chamber leaving about UV lamp and note that the against lamp connector base two inches of the lamp connector will only allow together until an audible click protruding from the chamber.
-
Page 9: Specifications
Note: If the system is put on a temporary by-pass or if it becomes contaminated after the UV system, it is necessary to shock the system with household bleach for a full 20 minutes before resuming the use of the water. Section 5 Specifications Model VT1/24 VT4/24 S5Q-P/24 S8Q-P/24 US Public Health 16mJ/ 2 gpm (7.5 lpm) (0.45 m... -
Page 10: Section 6 Manufacturer's Warranty
VIQUA warrants the electrical (controller) and hardware components to be free from defects in material and workmanship for a period of three (3) years from the date of purchase. During this time, VIQUA will repair or replace, at its option, any defective parts covered by the warranty. - Page 11 425 Clair Rd. W, Guelph, Ontario, Canada N1L 1R1 t. (+1) 519.763.1032 • tf. (+1) 800.265.7246 (US and Canada only) t. (+31) 73 747 0144 (Europe only) • f. (+1) 519.763.5069 e-mail: info@viqua.com www.viqua.com À DÉPOSER À DÉPOSER EN MAGASIN EN DÉCHÈTERIE...
