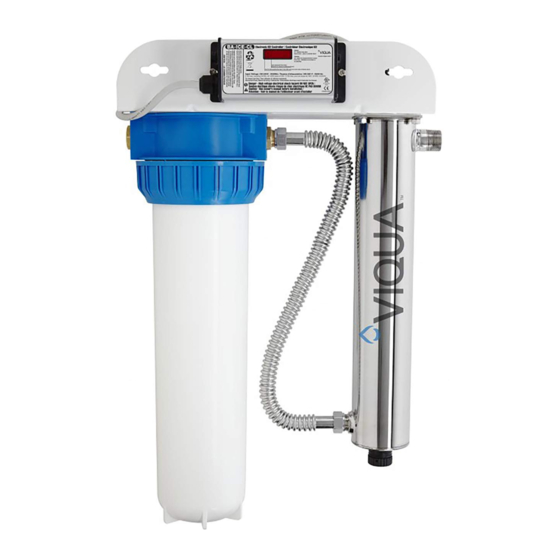

Viqua VH410-F20 Owner's Manual

Hide thumbs

page of 19

/ 19
Bookmarks

Quick Links

Download this manual

Owner's Manual

Models:

VH200-F10, VH410-F20

425 Clair Rd. W, Guelph, Ontario, Canada N1L 1R1

t. (+1) 519.763.1032 • tf. (+1) 800.265.7246 (US and Canada only)

t. (+31) 73 747 0144 (Europe only) • f. (+1) 519.763.5069

e-mail: info@viqua.com

www.viqua.com

520190-R_RevG

Need help?

Do you have a question about the VH410-F20 and is the answer not in the manual?

Questions and answers

Summary of Contents for Viqua VH410-F20

Page 1 Owner’s Manual Models: VH200-F10, VH410-F20 Powered by 425 Clair Rd. W, Guelph, Ontario, Canada N1L 1R1 t. (+1) 519.763.1032 • tf. (+1) 800.265.7246 (US and Canada only) t. (+31) 73 747 0144 (Europe only) • f. (+1) 519.763.5069 e-mail: info@viqua.com www.viqua.com...
Page 2 • VIQUA replacement lamps undergo rigorous performance testing and strict quality control processes to ensure that the safety and performance certifications of the original equipment are not compromised. So, you can see that it's simply not worth the risk! Insist on genuine VIQUA replacement lamps.
Page 3 Safety Information Section 1 Safety Information These are the original instructions. Please read this entire manual before operating this equipment. Pay attention to all danger, warning, and caution statements in this manual. Failure to do so could result in serious personal injury or damage to the equipment.
Page 4 Safety Information WA R N I N G • During extended periods of no water flow, the water in your chamber can become very hot (Approx. 60 °C) and potentially lead to scalding. It is recommended to run your water until this hot water has been purged from your chamber. Do not allow water to contact your skin during this time. To eliminate this condition, a temperature management valve can be installed at the outlet of your UV system.
Page 5 NORTH AMERICAN (NEMA 5-15P), 260010 3-PRONG GROUNDED CONTINENTAL EUROPEAN (CEE 7/7) 602637 2-PIN WITH GROUND, “SCHUKO” IEC Replacement Power Cords For VIQUA ICE UK VERSION (BS 1363) Controller™ (Sold Separately) 260012 3-PRONG GROUNDED (5 AMP FUSE) AUSTRALIAN VERSION (AS 3112)
Page 6 Installation Section 3 Installation 3.1 UV Disinfection System C A U T I O N Electronic controller must be connected to a Ground Fault Protected Circuit (GFCI) receptacle. Ensure the green ground wire ring terminal is securely fastened to chamber ground stud. The disinfection system is designed to be installed at point-of-entry.
Page 7 Installation 2. Select a suitable location for the disinfection system and its related components. As it is recommended to install a ground fault protected circuit (GFCI), make sure that this is taken into consideration prior to any installation. When selecting a mounting location, enough space must be left to allow for the removal of the UV lamp sleeve, as well as enough space to change out the filter cartridges.
Page 8 Installation 4. Make sure you allow for a “drip-loop” on the power cord to prevent any water from potentially entering the controller. Refer to Figure 5. Install the UV lamp. Refer to Section 4.1. 6. Install the cartridges. Refer to Section 4.3.
Page 9 Installation • Press the pressure button to • With all faucets closed, • Reinstall the cartridge into purge air and to complete the remove sump housing using sump housing and connect to disinfection procedure. sump wrench. the unit. • Flush all water outlets until bleach can no longer be smelled (at least 5 minutes).
Page 10 Maintenance Section 4 Maintenance WA R N I N G • Always disconnect power before performing any work on the disinfection system. • Always shut-off water flow and release water pressure before servicing. • Regularly inspect your disinfection system to ensure that the power indicators are on and no alarms are present. •...
Page 11 Maintenance 4.2 Cleaning and Replacing Quartz Sleeve Note: Minerals in the water slowly form a coating on the lamp sleeve. This coating must be removed because it reduces the amount of UV light reaching the water, thereby reducing disinfection performance. If the sleeve can not be cleaned, it must be replaced.
Page 12 Maintenance 4.3 Replacing Cartridges It is recommended to change the filter cartridge every six months (or earlier). Please note that a drop in pressure may indicate that the filter cartridge requires replacement. Note: Prior to performing any work on the drinking water system, ALWAYS DISCONNECT THE CONTROLLER FIRST. As a small amount of water may leak from the cartridges during this procedure, please place a small bucket under the system to catch any water.
Page 13 Maintenance 4. Discard the used cartridge and clean the sump housing as required. Make sure to thoroughly rinse the sump with water to remove any cleaning agents.Before installing a new cartridge, please ensure that the o-ring seals are properly seated on the shoulders at the top of the sump (Refer to Figure 7), if there is any visible damage on the o-rings please replace...
Page 14 Operation Section 5 Operation WA R N I N G The advanced warning system has been installed to provide the optimum protection against microbiological contamination in water. DO NOT disregard the warning signals. The best way to ensure optimum UV performance is to have the water microbiologically tested by a recognized testing agency on a regular basis.
Page 15 Troubleshooting Section 6 Troubleshooting Symptom Possible Causes Solutions Replace filter cartridge and refer to Section Pressure Drop Sediment pre-filter clogged Note: Check source water supply as fluctuations may occur in source pressure. Clean sleeve with scale cleaner and eliminate source of staining problem (ie. soften hard water, Quartz sleeve is stained or dirty refer to Section...
Page 16 Manufacturer's Dose Flow Chart Section 7 Manufacturer's Dose Flow Chart VH410-F20 VH200-F10 VIQUA Standard Figure 9 Dose Flow Chart Not performance tested or certified by NSF.
Page 17 US Public Health 16 mJ/cm 16 GPM (60 lpm) (3.6 m /hr) 34 GPM (130 lpm) (7.8 m /hr) VIQUA Standard 30 mJ/cm 9 GPM (34 lpm) (2.0 m /hr) 18 GPM (70 lpm) (4.2 m /hr) NSF/EPA 40 mJ/cm 7 GPM (26 lpm) (1.6 m...
Page 18 VIQUA warrants the electrical (controller) and hardware components to be free from defects in material and workmanship for a period of three (3) years from the date of purchase. During this time, VIQUA will repair or replace, at its option, any defective parts covered by the warranty.
Page 19 425 Clair Rd. W, Guelph, Ontario, Canada N1L 1R1 t. (+1) 519.763.1032 • tf. (+1) 800.265.7246 (US and Canada only) t. (+31) 73 747 0144 (Europe only) • f. (+1) 519.763.5069 e-mail: info@viqua.com www.viqua.com...
