Viqua PRO10 Manual

Pro series
Hide thumbs Also See for PRO10:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual

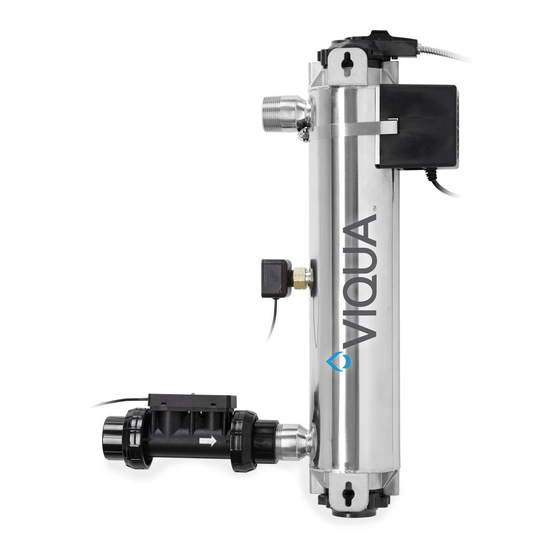

PRO Series
PRO10
PRO20
PRO30
520373-R_RevA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Viqua PRO10

Summary of Contents for Viqua PRO10

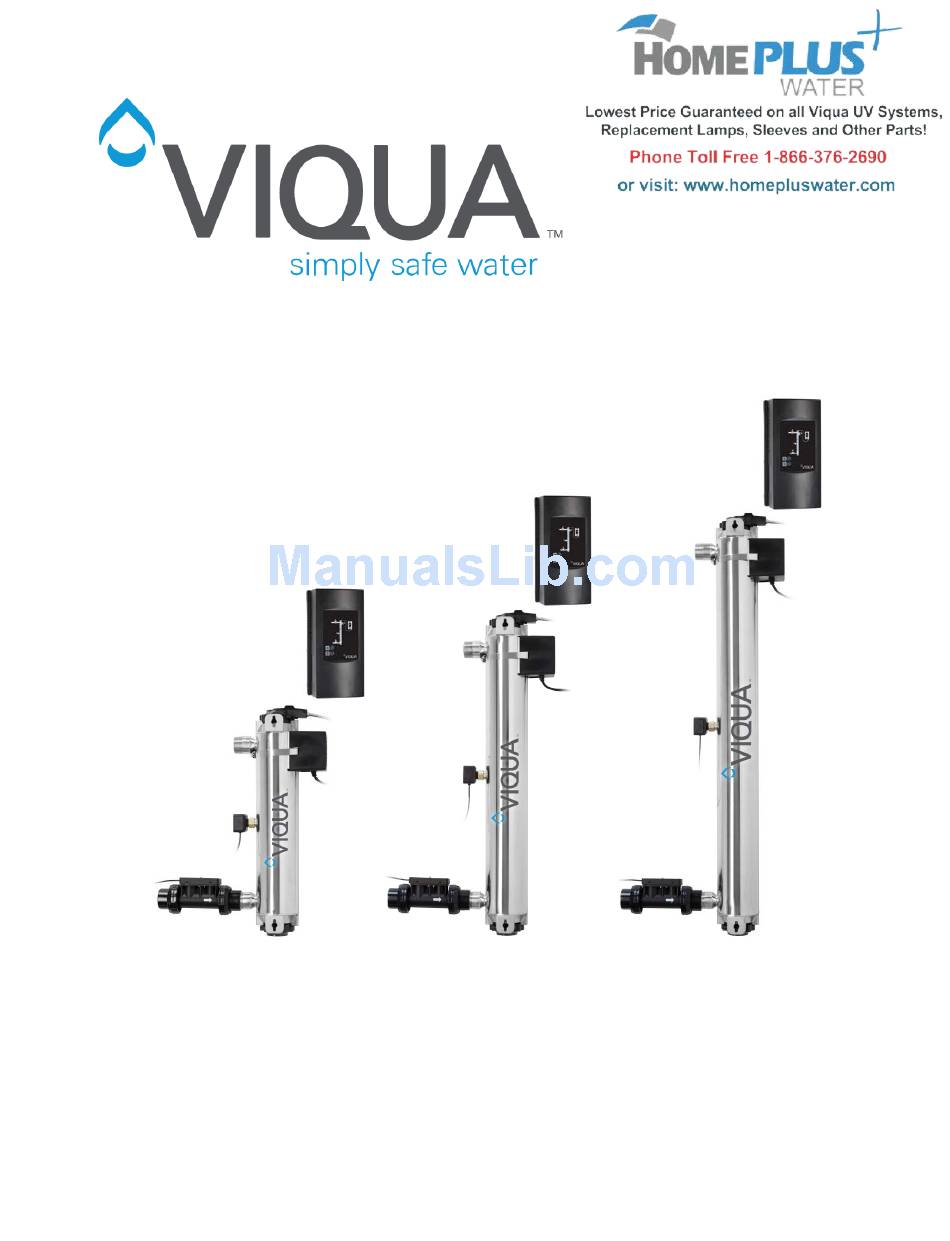

  • Page 1 PRO Series PRO10 PRO20 PRO30 520373-R_RevA...

  • Page 2: Table Of Contents

    Table of Contents Preface ..........................ii Contact Information ......................ii About VIQUA – a Trojan Technologies Business ............ii Scope ...........................ii Project & System Description ................1 Project Description ..................... 1 System Description .................... 1 Product Drawings ....................2 Install Diagram ....................2 Exploded View ....................

  • Page 3: Preface

    VIQUA has over 600,000 systems installed worldwide and VIQUA systems can be found in almost every country in the world. Applications of VIQUA systems include rain water harvesting, ground water treatment, disaster relief, humanitarian aid, medical devices and bottled-water refill stations.

  • Page 4: Project & System Description

    120 ppm (7 grains / gallon) max.* Manganese content 0.05 ppm max.* Iron content 0.3 ppm max.* 75% min.* after pretreatment System Description Model PRO10 PRO20 PRO30 Quantity Chamber Material 316L SST Dimensions 21.4” x 4” (55 x 10 cm) 31”...

  • Page 5: Product Drawings

    RAWINGS Install Diagram Item S (min.) Ø A (max.) D (max.) 21.4” 12” 4” 72” 6.5” 13” 48” PRO10 (55 cm) (30 cm) (10 cm) (182 cm) (16.5 cm) (33 cm) (122 cm) 31” 12” 4” 72” 6.5” 13” 48”...
  • Page 6 Mounting Diagram 4 ⅛” 47” max. PRO10: 18 ½” PRO20: 27 ¾” PRO30: 37 ½”...

  • Page 7: Exploded View

    Flow Meter Installation Option Exploded View Refer to .pdf and .step files for engineering drawings and part numbers.

  • Page 8: System Overview

    Each of the PRO systems has a unique flow restrictor to limit flow rates to 10, 20, and 30 GPM for the PRO10, PRO20, and PRO30 systems respectively. These restrictors are found in the inlet port of the chamber and physically inhibit flow rates from...
  • Page 9 PRO10 95% UVT 85% UVT 65% UVT 55% UVT NSF Alarm Set Point Flow rate (gpm) PRO20 95% UVT 85% UVT 65% UVT 55% UVT NSF Alarm Set Point Flow rate (gpm)

  • Page 10: Controller Interface

    PRO30 95% UVT 85% UVT 65% UVT 55% UVT NSF Alarm Set Point Flow rate (gpm) Controller Interface The controller is equipped with the following features: 1. Audible alarm 2. Audible alarm mute 3. Replacement lamp counter reset 4. Lamp operation indicator 5.

  • Page 11: Uv Lamp

    15 mg (IMERC registered). Wavelength, λ (nm) VIQUA’s amalgam lamps use a mercury amalgam matrix as opposed to mercury in its pure liquid form. Therefore, the mercury is contained as a secure, solid segment. Additionally, this segment is trapped in a compartment at the bottom of the lamp.

  • Page 12: Degradation Chart

    5000 10000 15000 20000 Burning Hours 3.4.3 Temperature Profile VIQUA’s lamps use a mercury amalgam mix to control the vapour pressure and produce a more stable output than conventional standard output lamps. Pro 10 Temperature Profile 100.0 90.0 80.0 70.0 60.0...
  • Page 13 Pro 20 Temperature Profile 100.0 90.0 80.0 70.0 60.0 50.0 Water Temperature (°C) Pro 30 Temperature Profile 100.0 90.0 80.0 70.0 60.0 50.0 Water Temperature (°C)

  • Page 14: Quartz Sleeve

    In this way, the UV sensor detects when the water is no longer being purified properly as a result of change in any influential factor. VIQUA’s UV sensors reliably detect low UV output and identify the need for maintenance.

  • Page 15: Flowmeter

    Product Features and Benefits 3.7.1 Real-Time UV Dose Monitoring VIQUA’s PRO systems come equipped with real-time UV dose monitoring which utilizes data from both the flow meter and the UV sensor. Benefits • More accurate assessment of true operating conditions.

  • Page 16: Lightwise™ Technology

    System alarm % of Rated System Flow 3.7.2 LightWise™ Technology VIQUA’s new LightWise™ technology allows the system’s electronic controller to automatically reduce lamp power during periods of no water flow. The dimming capability ultimately reduces the rate of sleeve fouling.

  • Page 17: Adjustable Alarm Set Points

    3.7.3 Adjustable Alarm Set Points The PRO10, PRO20, and PRO30 systems are all capable of programmable low UV dose alarm set points of 40, 80, or 120 mJ/cm . After detecting a low UV dose, a visual and audible alarm will sound within the allowable response time (the time it takes for three void volumes to pass through the system, plus 3 seconds), as per NSF Standard 55 Class A protocol.

  • Page 18: Ma Interface

    VIQUA warrants the system components to be free from defects in material and workmanship for the time specified in the table below. During this time, VIQUA will repair or replace, at its option, any defective parts covered by the warranty.
  • Page 19 Component Warranty UV Chamber ten (10) years from the date of purchase Electrical (controller) and Hardware five (5) years from the date of purchase Components UV Lamps, Sleeves, and UV Sensors one (1) year from the date of purchase...

  • Page 20: Viqua Declaration

    VIQUA D ECLARATION VIQUA is a sustainable business that designs and builds industry-leading UV systems. Our products are used worldwide in applications that help improve quality of life. VIQUA utilizes quality materials and processes to ensure each product meets safety, health and environmental protection requirements.
