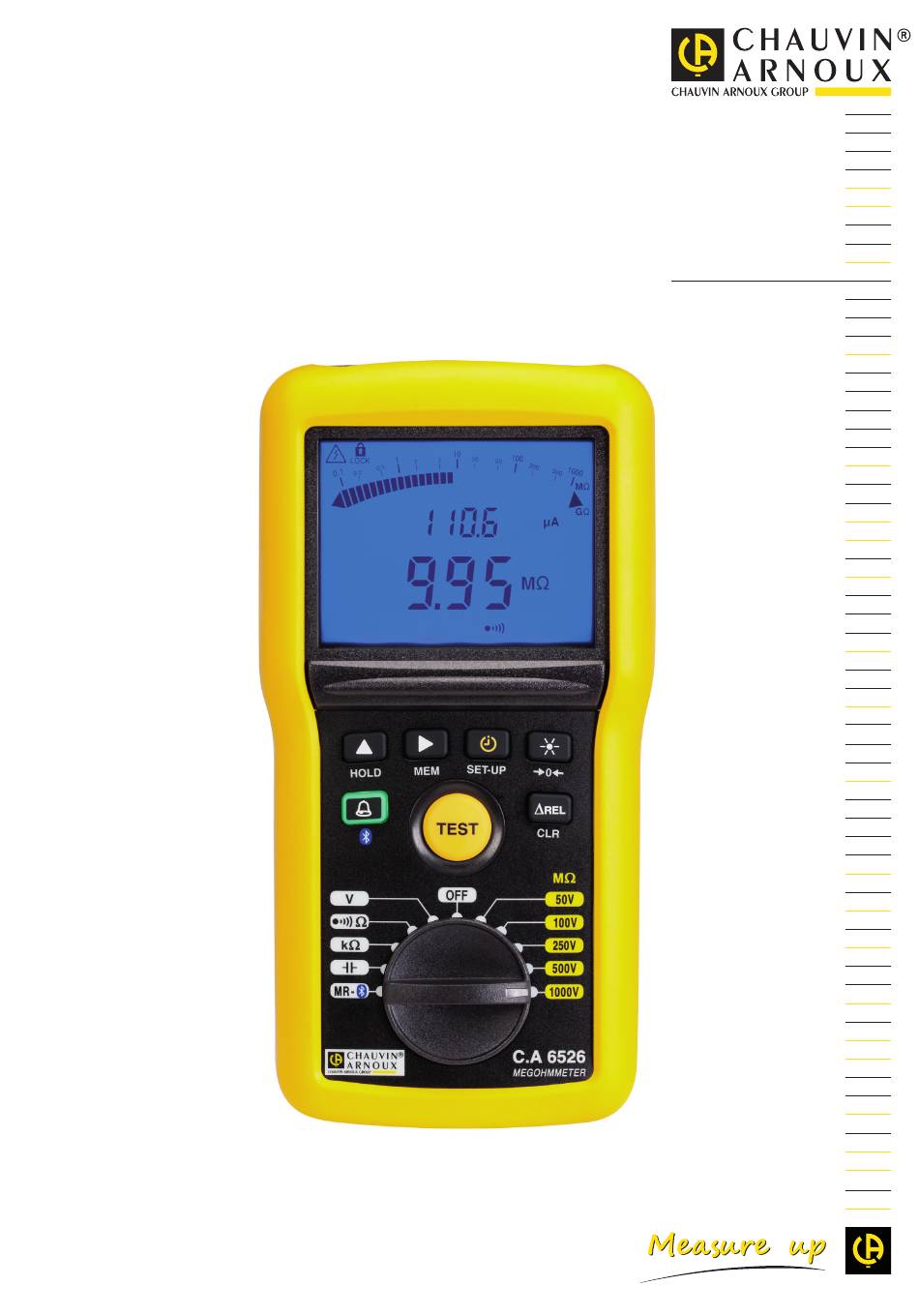

- Page 1 GB - User’s manual C.A 6522 C.A 6524 C.A 6526 Megohmmeters...
- Page 2 The product is declared recyclable following an analysis of the life cycle in accordance with standard ISO14040. Chauvin Arnoux has adopted an Eco-Design approach in order to design this appliance. Analysis of the complete lifecycle has enabled us to control and optimize the effects of the product on the environment. In particular this appliance exceeds regulation requirements with respect to recycling and reuse.
-
Page 3: Precautions For Use
PRECAUTIONS FOR USE This instrument is compliant with safety standard IEC 61010-2-030 and the leads are compliant with IEC 61010-031, for voltages up to 600 V in category IV or 1,000 V in category III. Failure to observe the safety instructions may result in electric shock, fire, explosion, and destruction of the instrument and of the installations. -
Page 4: Table Of Contents
2.2. Voltage measurement ..............................13 2.3. Insulation measurement ............................... 14 2.4. Continuity measurement .............................. 17 2.5. Resistance measurement (C.A 6524 and C.A 6526) ....................19 2.6. Capacitance measurement (C.A 6526) ......................... 19 2.7. ∆REL function (C.A 6524 and C.A 6526) ........................19 2.8. -
Page 5: Presentation
Do not modify the leads or accessories. Any non-compliant repairs can cause risks of electric shock or burns. One C.A 6522, C.A 6524, or C.A 6526, depending on which model was ordered. Two straight/right-angle safety leads (red and black). One red crocodile clip. -
Page 6: Accessories
1.2. ACCESSORIES Type 3 remote control probe Continuity pole Thermometer + K thermocouple, C.A 861 Thermo-hygrometer C.A 846 USB-Bluetooth adapter DataView® software 1.3. REPLACEMENT PARTS 2 straight/right-angle safety leads (red and black) 1.50 m long 2 crocodile clips (red and black) 2 test probes (red and black) Carrying case that also allows hands-free use For accessories and spare parts, visit our website:... -
Page 7: Description Of The Instruments
1.4. DESCRIPTION OF THE INSTRUMENTS 1.4.1. C.A 6522 Connection terminals. Backlit digital display unit. M mAµA < ALARM HOLD 4 function keys. TEST TEST button to start the measurements. Ω 250V Ω 500V 1000V Six-position switch to choose the function or to switch the instrument off. - Page 8 1.4.2. C.A 6524 Connection terminals. Backlit digital display unit. DARPI T1T2 G VHz % M mAµA < > ALARM HOLD 6 function keys. TEST TEST button to start the measurements. Ω Ω 100V Ω 250V 500V Ten-position switch to choose the function or to 1000V switch the instrument off.
- Page 9 1.4.3. C.A 6526 Connection terminals. Backlit digital display unit. DARPI T1T2 G VHz % M mAµA < > ALARM G nF µF HOLD 6 function keys. TEST TEST button to start the measurements. Ω Ω 100V Ω 250V 500V Eleven-position switch to choose the function or to MR - 1000V switch the instrument off.
- Page 10 1.4.4. ON THE BACK Captive quarter-turn screw. Battery compartment cover. Magnet for attachment to a metallic surface (for the C.A 6524 and the C.A 6526). Non-skid pads. Prop.
-
Page 11: Terminal Block
600V CAT IV 1.6. FUNCTIONS OF THE INSTRUMENT C.A 6522, C.A 6524, and C.A 6526 megohmmeters are portable measuring instruments with digital displays. They are powered by batteries. These instruments are used to check the safety of electrical installations. They are used to test new installations before they are powered up, to check an existing installation in a power-off condition, or again to troubleshoot an installation. -
Page 12: Function Keys
„ and to program the alarm thresholds (on the C.A 6524 and C.A 6526). ∆Rel On the C.A 6524 and C.A 6526, the ∆Rel key is used to display the measurement from which a stored reference measurement is subtracted. On the C.A 6524 and C.A 6526, the MEM key is used to record measurements. -
Page 13: Use
1000V The instrument displays the voltage on the terminals. It detects whether the voltage is AC or DC and, if it is AC, displays its frequency (on the C.A 6524 and the C.A 6526). In the MΩ settings, the symbol indicates that the voltage is too high (> 25 V) and that insulation measurements are prohibited. -
Page 14: Insulation Measurement
Pressing the key, before or during the measurement, changes the secondary display unit to display the current (on the C.A 6524 and C.A 6526) or the elapsed time. Press the TEST button and hold it down until the The measurement is displayed on the main display unit measurement displayed is stable. - Page 15 2.3.1. OPERATION OF THE TEST BUTTON The TEST button is pressed to make an insulation measurement. The test voltage is generated for as long as the press is maintained. When the button is released, the measurement stops. mode, simply press the TEST button once to start the measurement, then press it a second time to stop; there is no In the need to keep the button pressed.
- Page 16 Interpretation of the results Condition of insulation DAR < 1,25 PI < 2 Poor or even dangerous 1,25 ≤ DAR < 1,6 2 ≤ PI < 4 Good 1,6 ≤ DAR 4 ≤ PI Excellent Press the TEST key to return to the voltage measurement. TEST 2.3.3.
-
Page 17: Continuity Measurement
2.4. CONTINUITY MEASUREMENT The continuity measurement measures a low resistance (< 10 or 100 Ω depending on the current) at a high current (200 or 20 mA). Ω. Set the switch to Press the key to choose current measurement. ... -
Page 18: Making A Measurement
2.4.2. ELIMINATION OF THE COMPENSATION OF THE LEADS To eliminate the compensation of the leads, leave the leads open and long-press the key. > 2s The display indicates the resistance of the leads and the symbol goes off. 2.4.3. MAKING A MEASUREMENT Use the leads to connect the device to be tested to the terminals of the instrument. -
Page 19: Resistance Measurement (C.a 6524 And C.a 6526)
2.5. RESISTANCE MEASUREMENT (C.A 6524 AND C.A 6526) The resistance measurement is made with a weak current and can measure resistances up to 1000 kΩ. Set the switch to kΩ. As for a continuity measurement, connect the device to be tested to the terminals of the instrument. The device to be tested must not be live (see §... -
Page 20: Hold Function
If the measured value is less than the stored value, the display becomes negative. Pressing the key displays, in addition, the measured value as a % of the stored value. Rmeas - Rref x 100 Rref In insulation measurements, only the digital display is modified by the ∆REL. The bargraph continues to display the true measured value. -
Page 21: Set-Up
2.10. SET-UP A long press on the SET-UP key is used to enter the configuration (set-up) function of the instrument. > 2s Then use the and keys to scroll and modify the parameters. press The buzzer is active. To deactivate it, press ... -
Page 22: Alarm Function
2 Ohms. If the measurement is below this threshold and the buzzer is active, the instrument emits an audible signal. On the C.A 6524 and the C.A 6526, pressing the symbol is displayed, along with the threshold, on activates the alarm. -
Page 23: Automatic Stop
„ continuity measurements, for as long as measurements are made. This automatic switching off can be disabled (see § 2.10). 2.13. STORAGE (C.A 6524 AND C.A 6526) 2.13.1. RECORDING A MEASUREMENT To record a measurement, it is first necessary to freeze the display using the HOLD key or to wait for the end of a timed measurement. - Page 24 2.13.2. REREADING THE RECORDS Set the switch to MR. The instrument displays the last measurement recorded. Ω Ω 100V Ω 250V 500V MR - 1000V To see the other measurements, press the key. The record number is decremented and the corresponding To see one particular measurement, use the ...
-
Page 25: Erasing All Records
The record number blinks and the main display unit Then long-press the MEM key to confirm the erasure. displays CLR. > 2s Otherwise, to cancel, long press the CLR key again. 2.13.4. ERASING ALL RECORDS Repeat the record erasure procedure: „... - Page 26 symbol is displayed and the instrument waits for a message from the computer. When the link is set up, the symbol starts blinking. If your PC does not have a Bluetooth port, install a USB-Bluetooth adapter. Then, in the Windows bar, locate the Bluetooth logo, right-click on it, and choose Add a peripheral.
-
Page 27: Errors
(which depends on the instrument and the test voltage), mAµA the instrument so reports. < In the case of a C.A 6524 or C.A 6526 in the 1000 V range, that leads to display of the screen shown opposite. -
Page 28: Resetting The Instrument
With the C.A 6524 or C.A 6526, if this occurs during a DAR or PI measurement, the instrument interrupts the measurement and displays the screen shown opposite. 2.15.3. PRESENCE OF A VOLTAGE DURING A CONTINUITY, RESISTANCE, OR CAPACITANCE MEASUREMENT If, during a continuity, resistance, or capacitance measurement, the instrument detects an external voltage in excess of 15 V (AC or DC), it interrupts the measurement and displays the screen shown opposite. -
Page 29: Technical Characteristics
3.2.3. INSULATION MEASUREMENT Particular reference conditions Capacitance in parallel on resistance: null Measurement ranges as a function of the model of instrument Test voltage C.A 6522 C.A 6524 C.A 6526 10kΩ - 10GΩ 10kΩ - 10GΩ 100V 20kΩ - 20GΩ... - Page 30 Intrinsic uncertainty Test voltage (U 50V - 100V - 250V - 500V - 1,000V 4.00 - 39.99 40.0 - 399.9 400 - 3999 4.00 - 39.99 40.0 - 200.0 Specified measurement 10 - 999 kΩ and MΩ MΩ MΩ GΩ GΩ...
-
Page 31: Continuity Measurements
0 - 250mA Resolution Intrinsic uncertainty ± (2 % + 2 ct) Compensation of the leads: 0 to 9.99 Ω. 3.2.5. RESISTANCE MEASUREMENTS (C.A 6524 AND C.A 6526) 0 - 3999 Ω Specified measurement range 4.00 - 39.99kΩ 40.0 - 399.9kΩ... -
Page 32: Variation In The Range Of Use
3.2.8. STORAGE Number of records: „ 300 for the C.A 6524 „ 1300 for the C.A 6526. 3.2.9. BLUETOOTH Bluetooth 2.1 Class II Range 10 metres 3.3. VARIATION IN THE RANGE OF USE 3.3.1. VOLTAGE MEASUREMENT Influence Quantities of influence... -
Page 33: Resistance And Continuity Measurement
Influence Quantities of influence Range of influence Quantity influenced Typical Maximum 0 to 5µF at 1mA MΩ 1% + 1 ct 50V, 100V and 250V ranges 6% + 2 ct 10% + 2 ct from 10kΩ to 3 GΩ 0 to 2µF 500V and 1,000V Capacitance in parallel ranges... -
Page 34: Intrinsic Uncertainty And Operating Uncertainty
3.4. INTRINSIC UNCERTAINTY AND OPERATING UNCERTAINTY The megohmmeters comply with standard IEC-61557, which requires that the operating uncertainty, called B, be less than 30%. √ „ In insulation measurements, B = ± ( |A| + 1.15 ² + E ² + E ²... -
Page 35: Maintenance
4. MAINTENANCE Except for the batteries, the instrument contains no parts that can be replaced by personnel who have not been specially trained and accredited. Any unauthorized repair or replacement of a part by an “equivalent” may gravely impair safety 4.1. -
Page 36: Warranty
5. WARRANTY Except as otherwise stated, our warranty is valid for twelve months starting from the date on which the equipment was sold. Extract from our General Conditions of Sale provided on request. The warranty does not apply in the following cases: „... - Page 38 FRANCE INTERNATIONAL Chauvin Arnoux Group Chauvin Arnoux Group 190, rue Championnet Tél : +33 1 44 85 44 38 75876 PARIS Cedex 18 Fax : +33 1 46 27 95 69 Tél : +33 1 44 85 44 85 Fax : +33 1 46 27 73 89 Our international contacts info@chauvin-arnoux.com...
