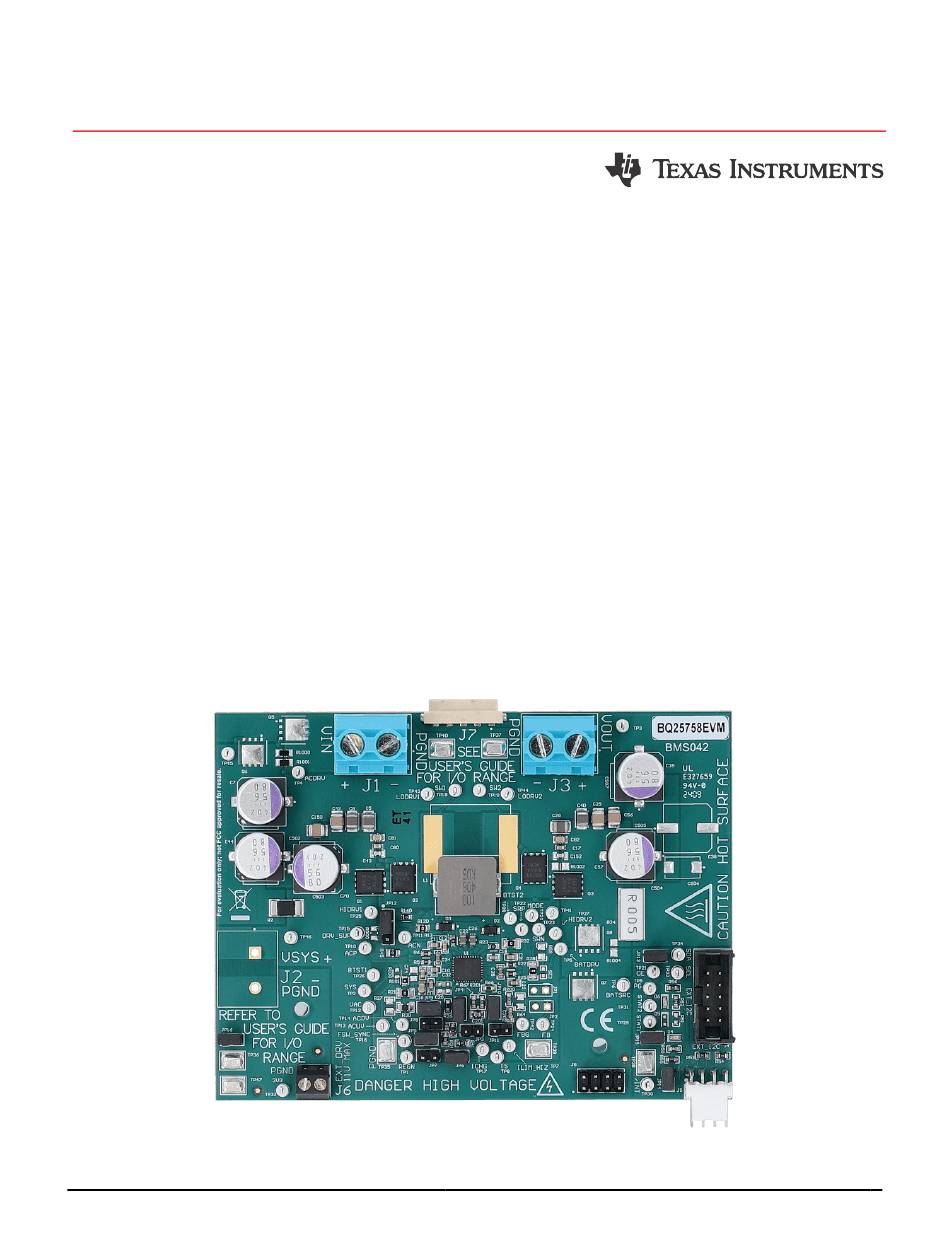

www.ti.com
EVM User's Guide: BQ25758EVM, BQ25758AEVM
BQ25758 and BQ25758A Evaluation Modules
Description

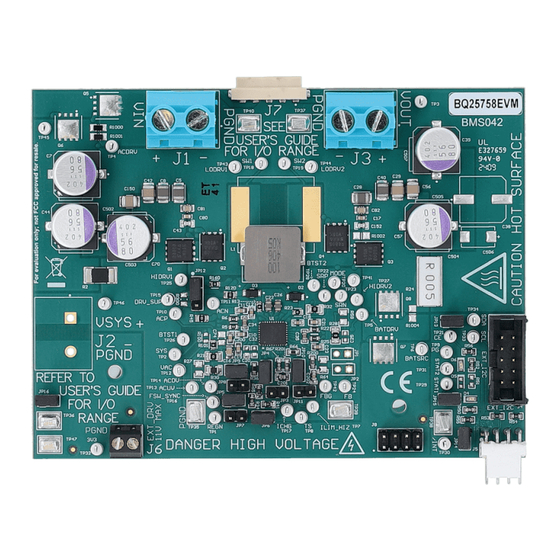

The BQ25758 and BQ25758A evaluation modules
(EVM) are complete evaluation systems for the
BQ25758 and BQ25758A ICs. The BQ25758EVM and
the BQ25758AEVM have a max input and output of
55V and a max output current of 10A.
The BQ25758 and BQ25758A ICs are wide voltage,
bidirectional switched-mode buck-boost controllers.
These devices offer high-efficiency power conversion
over a wide voltage range with output CC-CV control.
These ICs have a wide input range of 4.2V to 60V and
a wide output range of up to 60V.
Get Started
1. Order the EVM on
ti.com
2. Order the
EV2400
or
with the EVM
3. Download the BQ25758 BQZ file or use the
Charger GUI
4. Download the BQ25758 EVM design files on
ti.com
SLUUCD0B – MARCH 2024 – REVISED MAY 2025
Submit Document Feedback
USB2ANY
to communicate
TI
Copyright © 2025 Texas Instruments Incorporated
Features
Wide input voltage operating range: 4.2V to 55V
Wide output operating range: up to 55V
Synchronous buck-boost DC/DC controller with
NFET drivers
– Adjustable switching frequency from 200kHz to
600kHz
– Optional synchronization to external clock
– Optional gate driver supply input for optimized
efficiency
2
I
C-controlled or resistor programmable options
Power up from battery (reverse mode) output 4V to
55V
High safety integration
– Adjustable input overvoltage and undervoltage
protection
– Output overvoltage and overcurrent protection
BQ25758 and BQ25758A Evaluation Modules
Description
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the BQ25758AEVM and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments BQ25758AEVM

  • Page 1 Wide output operating range: up to 55V BQ25758 and BQ25758A ICs. The BQ25758EVM and • Synchronous buck-boost DC/DC controller with the BQ25758AEVM have a max input and output of NFET drivers 55V and a max output current of 10A. – Adjustable switching frequency from 200kHz to...
  • Page 2 1 Evaluation Module Overview 1.1 Introduction The BQ25758EVM and BQ25758AEVM can be evaluated for the full 240W range of USB Extended Power Range (EPR) in forward and reverse power direction. Typical applications include USB-PD extended power range applications, docking stations, monitors, and Portable Power Supplies.
  • Page 3 Evaluation Module Overview 1.4 General Texas Instruments High Voltage Evaluation (TI HV EMV) User Safety Guidelines WARNING Always follow TI's set-up and application instructions, including use of all interface components within their recommended electrical rated voltage and power limits. Always use electrical safety precautions to help verify your personal safety and those working around you.
  • Page 4 The following warnings and cautions are noted for the safety of anyone using or working close to the BQ25758EVM or BQ25758AEVM. Observe all safety precautions. The BQ25758EVM and BQ25758AEVM circuit modules can become hot during operation due to the dissipation of heat. Avoid contact with the board. Follow all applicable safety procedures applicable to your laboratory.
  • Page 5 The board has no fuse installed and relies on the external voltage source current limit to verify circuit protection. SLUUCD0B – MARCH 2024 – REVISED MAY 2025 BQ25758 and BQ25758A Evaluation Modules Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 6 VOUT Default Output Voltage IAC Sense Resistor Input current sense resistor mΩ Table 2-2. PCB and Mechanical Parameters for the BQ25758EVM and the BQ25758AEVM Value Unit Board size (X dimension, or length) Board size (Y dimension, or width) IC + power stage max height...
  • Page 7 JP15 purpose indicator. JP16 Shunt JP16 to generate on board 3.3V pullup rail. Installed 2.3 Recommended Operating Conditions Table 2-5. Recommended Operating Conditions for BQ25758EVM and BQ25758AEVM Description UNIT VIN (J1) Input voltage to the EVM VOUT (J3) Output voltage of the EVM...
  • Page 8 EVM and the PC for a connection to be established. Also, update the USB2ANY to the latest version with the USB2ANY Explorer Software. BQ25758 and BQ25758A Evaluation Modules SLUUCD0B – MARCH 2024 – REVISED MAY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 9 5. EV2400 Communication Kit or USB2ANY Communication Kit: 6. Software: For software setup, refer to section 2.4. 2.6 Equipment Setup SLUUCD0B – MARCH 2024 – REVISED MAY 2025 BQ25758 and BQ25758A Evaluation Modules Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 10 After selecting the target device, click Field View and then click the Read Register button. 9. Set WATCHDOG to disabled. BQ25758 and BQ25758A Evaluation Modules SLUUCD0B – MARCH 2024 – REVISED MAY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 11 You should see at the top-left, Hardware Connected. After you see the hardware is connected, select the plug icon on the left panel. SLUUCD0B – MARCH 2024 – REVISED MAY 2025 BQ25758 and BQ25758A Evaluation Modules Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 12 Here is a brief description of what the other icons on the left side panel mean. Select through these icons to configure other operations of the battery charger. BQ25758 and BQ25758A Evaluation Modules SLUUCD0B – MARCH 2024 – REVISED MAY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 13 V(J1(VAC)) = 20V ± 0.5V I(J1(IAC)) = 7.2A ± 0.5A V(J3(VOUT)) = 38V ± 0.5V I(J3(IOUT)) = 4A ± 0.5A SLUUCD0B – MARCH 2024 – REVISED MAY 2025 BQ25758 and BQ25758A Evaluation Modules Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 14 Hardware Design Files www.ti.com 3 Hardware Design Files The following sections include the hardware design files for the BQ25758EVM and BQ25758AEVM. The sections include the schematics, board layouts, and Bill of Materials (BOM). 3.1 Schematics R1000 AC_OUT VSYS R1001 TP 45...
  • Page 15 100nF D 100V 100k 100k 100V 1µF 100V PGND Figure 3-2. BQ25758 and BQ25758A EVM Schematic Page 2 SLUUCD0B – MARCH 2024 – REVISED MAY 2025 BQ25758 and BQ25758A Evaluation Modules Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 16 3V3_PULLUP PGND PGND PGND PGND P GND PGND PGND Figure 3-3. BQ25758 and BQ25758A EVM Schematic Page 3 BQ25758 and BQ25758A Evaluation Modules SLUUCD0B – MARCH 2024 – REVISED MAY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 17 For BQ25756 variant, Install JP1, JP4, JP5, JP6, JP9, JP10, pin 1-2 of JP12, JP13, JP14, JP15, and JP16 Figure 3-4. BQ25758 and BQ25758A EVM Schematic Page 1. DNP means "Do Not Populate". SLUUCD0B – MARCH 2024 – REVISED MAY 2025 BQ25758 and BQ25758A Evaluation Modules Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 18 Hardware Design Files www.ti.com 3.2 PCB Layout Figure 3-5. Top Layer and Overlay Figure 3-6. Layer 2 -GND BQ25758 and BQ25758A Evaluation Modules SLUUCD0B – MARCH 2024 – REVISED MAY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 19 Hardware Design Files Figure 3-7. Signal Layer 1 Figure 3-8. Signal Layer 2 SLUUCD0B – MARCH 2024 – REVISED MAY 2025 BQ25758 and BQ25758A Evaluation Modules Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 20 Hardware Design Files www.ti.com Figure 3-9. Layer 5 - GND Figure 3-10. Bottom Layer BQ25758 and BQ25758A Evaluation Modules SLUUCD0B – MARCH 2024 – REVISED MAY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 21 DO-214AC DO-214AC (SMA) FID1, FID2, Fiducial mark. There is nothing to buy or FID3, FID4, mount. FID5, FID6 SLUUCD0B – MARCH 2024 – REVISED MAY 2025 BQ25758 and BQ25758A Evaluation Modules Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 22 5 mOhms ±1% 5W Chip Resistor Wide 4320 WIDE_4320 (11050 Metric), 2043 Current Sense, Moisture Resistant Metal Foil BQ25758 and BQ25758A Evaluation Modules SLUUCD0B – MARCH 2024 – REVISED MAY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 23 Samtec Shunt, 100mil, Gold plated, Black Shunt JP2, SH-JP3, SH-JP4, SH- JP5, SH-JP6, SH-JP7, SH- JP8, SH-JP9, SH-JP10 SLUUCD0B – MARCH 2024 – REVISED MAY 2025 BQ25758 and BQ25758A Evaluation Modules Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 24 Chemistry Battery Charge Controller LT3010EMS8E-PBF Analog Devices Linear Voltage Regulator IC Positive MSOP8 Adjustable 1 Output 50mA 8-MSOP-EP BQ25758 and BQ25758A Evaluation Modules SLUUCD0B – MARCH 2024 – REVISED MAY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 25 Updated Equipment Setup section........................Changes from Revision * (March 2024) to Revision A (August 2024) Page • Updated document to include BQ25758AEVM....................SLUUCD0B – MARCH 2024 – REVISED MAY 2025 BQ25758 and BQ25758A Evaluation Modules Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 26 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
  • Page 27 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
  • Page 28 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
  • Page 29 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
  • Page 30 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
  • Page 31 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2025, Texas Instruments Incorporated...
